Tyvek® UV Facade

Name: Tyvek® UV Facade
Brand: DuPont™ Tyvek®
SKU: vrico6USmfTZrjAJVsqcGU

Verified by manufacturer today

Product certifications:

UV resistant, wall breather membrane.

Jump to:

BOS

Application

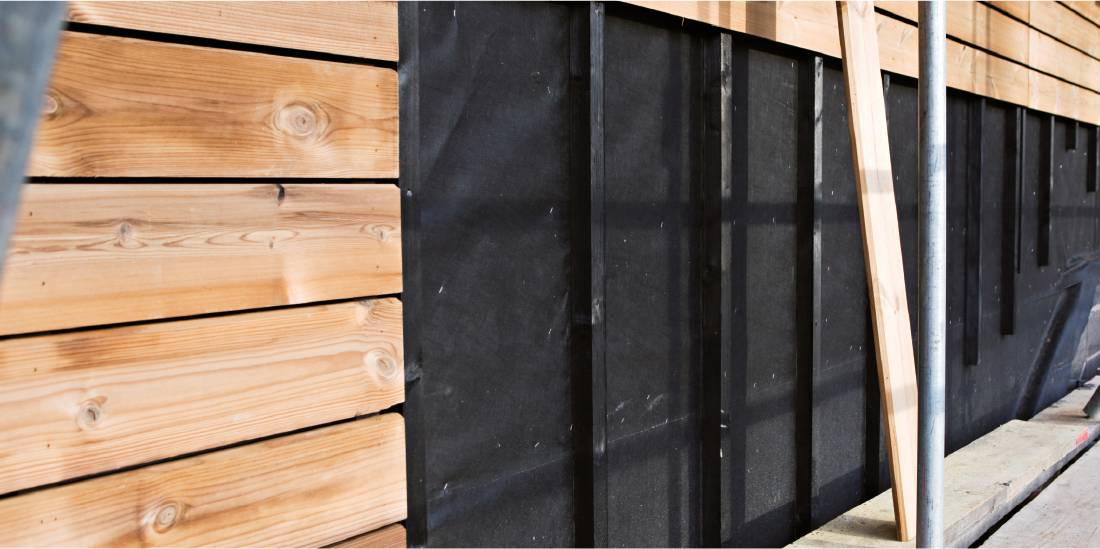

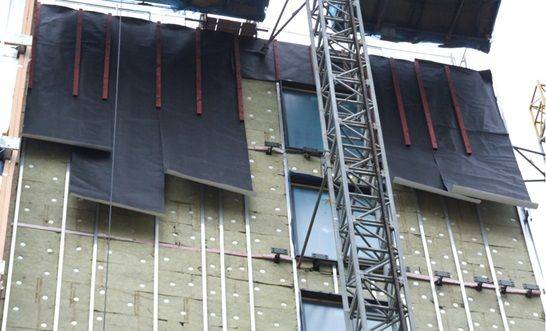

For secondary external protection of open-jointed rain screen wall systems.

Black, UV resistant, vapour permeable membrane.

Features and benefits:

Color	Black
Finish	Textured
Material	Polyethylene Polypropylene
Shape	Other
Length	50000 mm
Width	1500 mm 3000 mm
Warranty description	15 year

Uniclass	Pr_25_57_10_94 Vapour-permeable sheetsPrimary
CAWS	H20/10 Sheet cladding H20/155 Sheet cladding (attached to timber battens) H20/150 Sheet cladding (attached to metal support systems) H21/10 Vertical timber weatherboarding H21/20 Breather membrane H21/15 Horizontal timber weatherboarding H21/130 Breather membrane H21/115 Vertical timber weatherboarding H21/116 Horizontal timber weatherboarding H21/111 Horizontal timber weatherboarding H21/110 Vertical timber weatherboarding H92/120 Rainscreen cladding P10/65 Breather membrane P10/320 Breather membrane

Classification data
Standard	To BS EN 13859-2.
Performance characteristics	UV resistant and water resistant.
Class (minimum)	W1.
Material	High-density polyethylene (PE-HD) and polypropylene.
Third-party certification	British Board of Agrément (BBA) Certificate.
Weight (minimum)	195 g/m².
Thickness (minimum)	0.6 mm.
Water vapour permeability	To EN 13859, 0.035 m.
Tear resistance	To EN 13859, 300 N.
Accessories	Tyvek UV Façade Tape. Guidance for specification option: Black, single sided acrylic tape with high UV resistance for sealing laps, penetrations and joints in Tyvek® UV Façade membrane. Tyvek® Double Sided Acrylic Tape. Guidance for specification option: Double sided acrylic tape for sealing laps in Tyvek® membrane and bonding to smooth surfaces. Excellent adhesion properties under extreme conditions. Strong initial tack. Roll size: 50mm x 25m. Tyvek® Butyl Tape. Guidance for specification option: Double sided butyl based sealant, used to seal fixing penetrations in a Tyvek® membrane and form a moisture and airtight seal between a Tyvek® membrane and most commonly used building materials. Tape is compatible with brickwork, blockwork, masonry, timber, metalwork and most plastic products. Roll sizes: 20mm x 30m, 50mm x 30m.

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 0.74
Recyclability	All packaging materials can be reused (e.g. pallets), recycled or valorised through energy recovery. The material itself is not intended to be re-used or recycled. Energy recovery is possible.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
