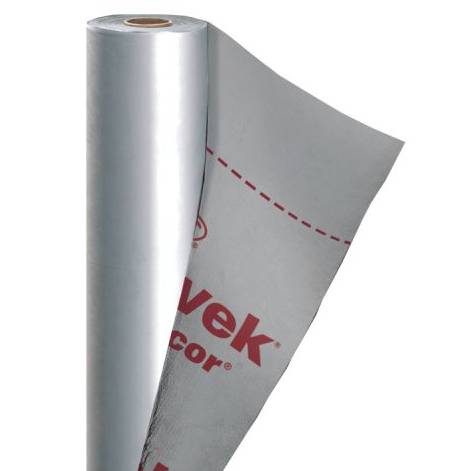

Name: Tyvek® Reflex
Brand: DuPont™ Tyvek®
SKU: wf2FGqjb9fsKBVXA6WT8pp

Color

Silver

Finish

Smooth

Material

Polyethylene

Guidance for specification option:

Metallised

Shape

Other

Length

100 mm

Width

0.48 mm

1.5 mm

2.7 mm

Warranty description

25 year

Uniclass

Pr_25_57_10_94 Vapour-permeable sheetsPrimary

CAWS

H20/10 Sheet cladding

H20/150 Sheet cladding (attached to metal support systems)

H20/155 Sheet cladding (attached to timber battens)

H21/10 Vertical timber weatherboarding

H21/110 Vertical timber weatherboarding

H21/111 Horizontal timber weatherboarding

H21/115 Vertical timber weatherboarding

H21/116 Horizontal timber weatherboarding

H21/130 Breather membrane

H21/15 Horizontal timber weatherboarding

H21/20 Breather membrane

H30/10 Fibre cement

H30/110 Fibre cement

H92/120 Rainscreen cladding

M30/265 Building paper

P10/320 Breather membrane

P10/65 Breather membrane

Standard

To BS EN 13859-2.

Performance characteristics

Heat reflective.

Water resistant.

Class (minimum)

W1.

Material

Polyethylene metallised.

Form

Spun-bonded.

Third-party certification

British Board of Agrément (BBA) Certificate.

Weight (minimum)

83 g/m².

Thickness (minimum)

0.22 mm.

Tyvek® Metallised Tape.

Guidance for specification option:

Single sided tape composed of an acrylic adhesive on a metallised Tyvek carrier. For sealing laps in metallised Tyvek® membranes and making good around penetrations, pipework, windows and door openings. Roll size: 75 mm x 25 m.

Tyvek® Double Sided Tape.

Guidance for specification option:

Double sided acrylic tape for sealing laps in Tyvek membrane and bonding to smooth surfaces. Excellent adhesion properties under extreme conditions. Strong initial tack. Roll size: 50 mm x 25 m.

Tyvek® Butyl Tape.

Guidance for specification option:

Double sided butyl based sealant, used to seal fixing penetrations in a Tyvek membrane and form a moisture and airtight seal between a Tyvek membrane and most commonly used building materials. Tape is compatible with brickwork, blockwork, masonry, timber, metalwork and most plastic products. Roll sizes: 20 mm x 30 m, 50 mm x 30 m.

Tyvek® FlexWrap NF.

Guidance for specification option:

A stretchable and flexible tape made up of three components: a crimped DuPont™ Tyvek® top sheet providing a water tight layer, the butyl mass as an adhesion layer and a paper release liner. It provides excellent watertight adhesion to all Tyvek® breather membranes around non-straight penetrations, such as dormers, door sills, chimney breasts, pipe penetrations and any custom shapes. Roll size: 2280 mm x 22.9 m.
