Type X Cavitray

Name: Type X Cavitray
Brand: Cavity Trays Ltd
SKU: mSseG5CL9pc1QGLtnD8ETv

Verified by manufacturer 7 months ago

Type X

Third party certifications:

Preformed DPC cavity tray with attached lead flashing.

Jump to:

Application

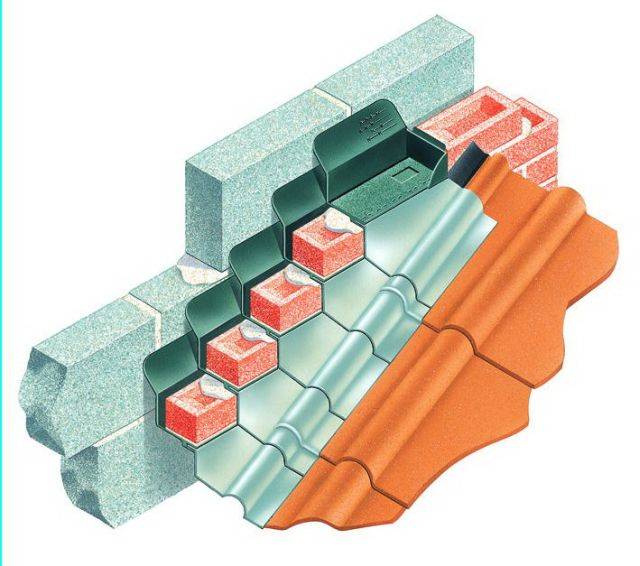

For use at pitched roof/ gable abutments.

Suitable for traditional masonry cavity construction or timber frame construction.

Preformed DPC cavity tray for use at pitched roof/ gable abutments.

Features and benefits:

Attached, shaped flashing secured in bosem jaw.
Attached lead flashings available in short or long lengths to suit roof tiling/ slating details.
Designed to suit standard 75 mm high brickwork courses.
Lead flashings and trays are flush pointed as masonry is raised eliminating the need to rake out joints for insertion/ fixing of lead flashing.
Hinged, variable angle upstand accommodates a wide range of cavity widths.
Perform flashing - Temperature resistance: -20°C to +70°C.
Perform flashing - UV and Ozone resistant.

Range:

Catchment trays for building in at the bottom of a slope to catch water and direct it, via weepholes, to the outside of a masonry wall.
Intermediate trays available in either hand, and built in at each course over the length of an abutment rake.

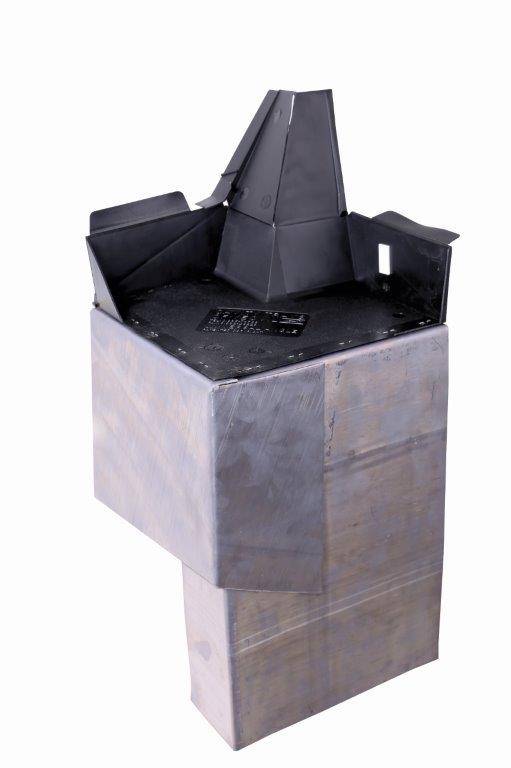

Ridge trays used to straddle a roof ridge abutment.
External angles used in place of catchment trays when commencing laying from the corner of a building.
Internal angles used in place of catchment where gable rises from internal corner of masonry.

Color	Black
Finish	Embossed
Material	Polypropylene Guidance for specification option: Injection moulded solid DPC.
Shape	Other
Warranty description	20 year Guidance for specification option: Perform® flashing - Type XP Cavitray.

Uniclass	Pr_25_57_21_66 Preformed cavity traysPrimary
CAWS	F30/370 Preformed cavity trays F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays F30/56 Preformed cavity trays

Material	Petheleyne. Guidance for specification option: Injection moulded solid DPC.
To fit cavity width	50 mm. 75 mm. 100 mm. 160 mm.
Attached lead flashings	Required.
Execution	Installing preformed cavity trays.

Roof pitch	15°. 25°. 35°. 45°. ___°.
Material	Lead. Guidance for specification option: To BS EN 12588. Aluminium. Copper.
Type	Catchment tray. Guidance for specification option: Stop end at each end of tray; supplied with weepvents. External angle. Guidance for specification option: Used instead of catchment trays if the abutment ends or returns on a corner. Can also provide a link with horizontal trays. Intermediate tray, left hand. Guidance for specification option: With one stop end on each tray; discharges water to the tray beneath. Intermediate tray, right hand. Guidance for specification option: With one stop end on each tray; discharges water to the tray beneath. Internal angle. Guidance for specification option: Used instead of catchment trays if the abutment ends or returns on a corner. Can also provide a link with horizontal trays. Ridge tray. Guidance for specification option: No stop ends; can discharge water to either end. As drawing ___. Show more

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Polypropylene Guidance for specification option: Injection moulded solid DPC.
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	-0.4 kg CO₂ eq/kg
Recyclability	Yes
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
