Application

  • Decorative and functional acoustic wall covering for education, retail and commercial interiors.
  • Media for creative solutions.
  • Acoustic pin-board surface for education and commercial sectors.
  • Modular room divider for display, privacy and sound absorption.

Description

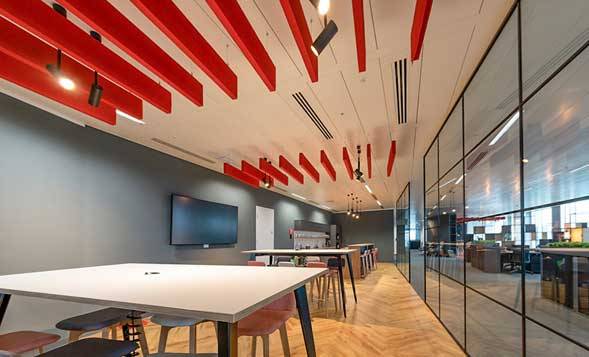

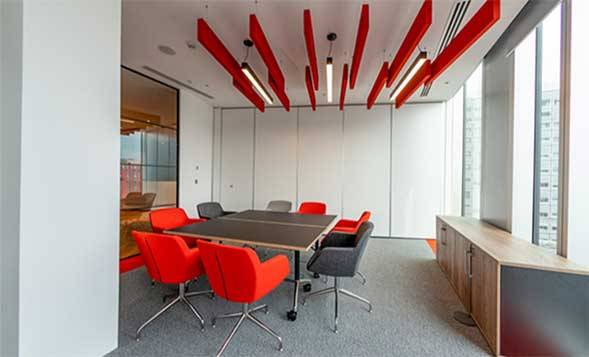

TVS ABsorb Baffle is a lightweight and semi-rigid panel that has sound-absorbing properties. Designed with solid colour throughout, TVS ABSorb Baffle has the potential to be used in a large array of spatial design and interior solutions. More than just a traditional interior acoustic panel, the baffle can be employed as a base material for creative solutions where design and aesthetics are important. The panels are made from 100% polyester and manufactured in the UK. Containing a minimum of 65% post-consumer recycled material, TVS ABSorb Baffle is completely safe, non-toxic, non-allergenic and non-irritant.


Features and benefits:

  • Design flexibility without the need for edging or capping, creates with solid colour throughout.
  • Excellent acoustic performance.
  • Available in a wide range of colours.
  • Custom colour printing available.
  • Limitless branding and design possibilities with in-house custom cutting.
  • Lightweight and easy to handle.
  • Made from 100% polyester fibre without chemical binders and certified low VOC.
  • Manufactured using a minimum of 65% post-consumer recycled material.
  • Highly durable providing long-term stability and performance.
  • Safe, non-toxic, non-irritant and non-allergenic.
  • Manufactured under ISO 9001 and ISO 14001 accredited Quality and Environment System.

General information

Color

White

Grey

Cream

Beige

Green

Show more

Finish

Other

Material

Polyester fibre (PET)

Shape

Rectangle

Length

2400 mm

Width

1200 mm

Height

12 mm

24 mm

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Standard

Manufactured under ISO 9001 and ISO 14001 accredited Quality and Environment System.

Form

Baffle.

Rigidity

Semi-rigid.

Application

Ceiling mounting.

Soffit mounting.

Wall mounting.

Material

Polyester Fibre (PET).

Material density

200 kg/m³.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

-

Manufacturer guidance

  • Class D, NRC 0.45 (with 24 mm air gap).
  • Class C, NRC 0.70.
  • Consult manufacturer's literature for details.

Fire performance

-

Reaction to fire

To EN13501-1, B-s2,d2.

Guidance for specification option:

  • Classification: Group 1, EN 13501-1:2007+A1:2009.
  • Fire rating to ISO 9705: Classification: Group 1-S, AS ISO 9705 - 2003.

VOC emissions

Certified low VOC.

Guidance for specification option:

Consult manufacturer for details.

Dimensions

-

Size (length x width)

2400 x 1200 mm.

Thickness (overall)

12 mm.

Colour

Pavillion.

Savoye.

Opera.

Acros.

Falling water.

Pinnacle.

Senado.

Bosco.

Zenith.

Ironbank.

Flatiron.

Empire.

Petronas.

Noise reduction coefficient (NRC)

0.45 (minimum).

Guidance for specification option:

Consult manufacturer's literature for details.

Weight

2400 g/m² (+/– 10%).

Sustainability data

Contains Red List materials

No

Country of material origin

France

Country of product manufacture

France

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

65 %

Guidance for specification option:

Manufactured using a minimum of 65% post-consumer recycled material.

Similar products from Total Vibration Solutions Limited t/a TVS Group

TVS ABSorb Etch - Acoustic wall covering

TVS ABSorb Etch - Acoustic wall covering

TVS ABSorb Image - Acoustic wall panel

TVS ABSorb Image - Acoustic wall panel

TVS ABSorb Rafts - Acoustic raft panel

TVS ABSorb Rafts - Acoustic raft panel

TVS ABSorb Sport - Acoustic wall panels

TVS ABSorb Sport - Acoustic wall panels

TVS ABSorb Wall Panels

TVS ABSorb Wall Panels

TVS Care Rafts - Acoustic raft panel

TVS Care Rafts - Acoustic raft panel

TVS Care Wall Panels - Acoustic

TVS Care Wall Panels - Acoustic

TVS Metal Rafts - Acoustic panel

TVS Metal Rafts - Acoustic panel

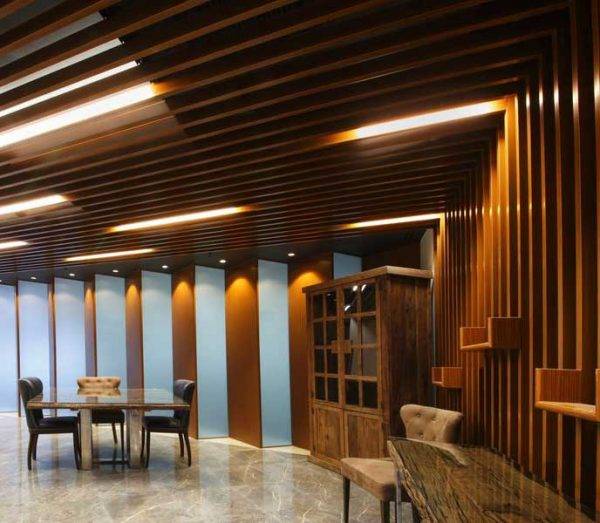

TVS Metal Wall Panels - Acoustic
