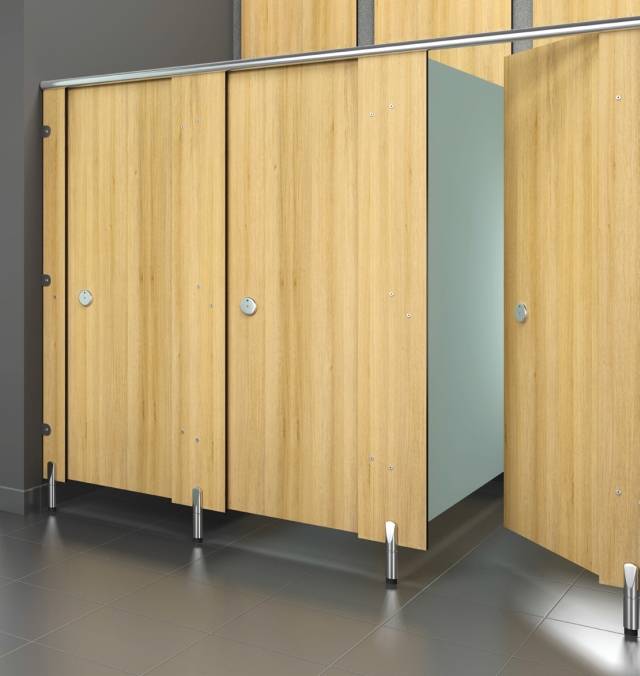

Trovex S3:60 Cubicles

Trovex S3:60 Cubicles

Trovex

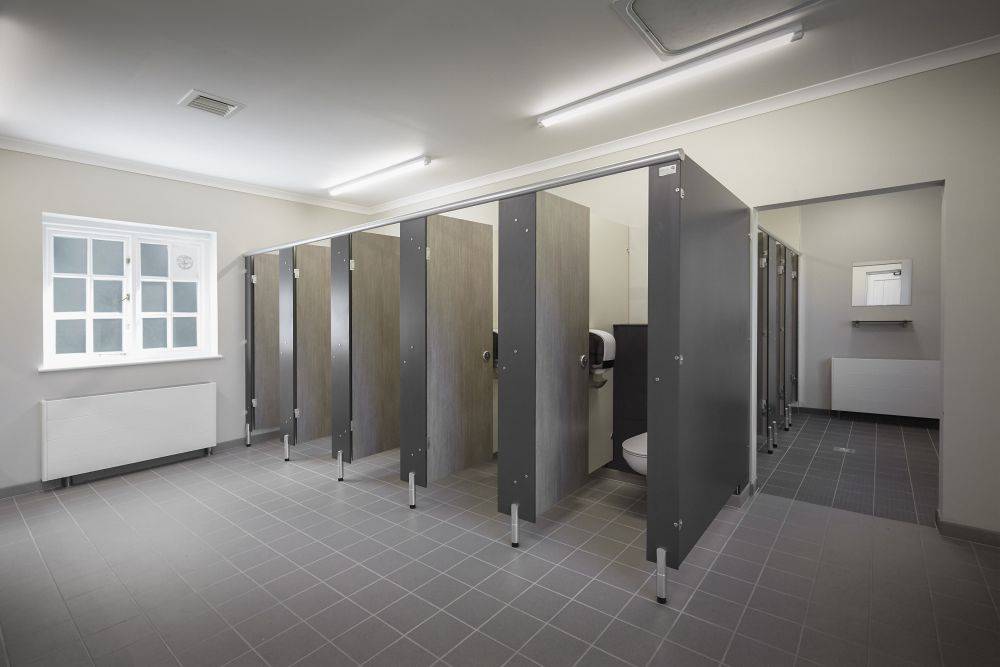

Durable solid grade laminate cubicles, suitable for many washroom & changing room applications.

Jump to:
+44 (0)1707 254170 www.trovex.com
Description

WC cubicle system with excellent strength, solid hardware and available in a choice of colour schemes.

Features and benefits:

  • Low maintenance.
  • Polished anodized aluminium hardware for strength.
  • Adjustable pedestal for accurate installation.
  • Anti-finger-trap hinges for safety.
  • Secure clip-panel system for easy maintenance.
  • Bullnosed headrail for a sleek appearance.
  • Pre-drilled components for faster installation.
  • Choice of core materials to suit all areas.
  • Wide choice of colour schemes available.

General information

Material

SGL

12 mm thick solid grade laminate.

Finish

Fine grained texture, low glare surface

Color

Choice available from Trovex laminate colour range

Features

Low maintenance, polished anodized aluminium hardware for strength, anti finger trap hinges for safety, secure clip panel for easy maintenance, bullnosed headrail for a sleek appearance

Size

1600 x 1960 mm

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Product Reference

Trovex S3:60 Cubicles

Material

SGL

12 mm thick solid grade laminate.

Colour/ Finish

-

Panels

Insert requirement from manufacturer's literature.

Doors

Insert requirement from manufacturer's literature.

Accessories

None

Coat hooks

Toilet roll holders

Special order

Insert requirement; contact manufacturer for information.

Standard product features

Height:

1960 mm (includes 150 mm floor clearance).

Edges:

Radiused and polished.

Headrail:

Polished anodized aluminium extrusion, bullnosed profile with end caps where applicable.

Pedestal:

Polished anodized aluminium casting with bolt through fixing to panel and adjustment to accommodate uneven floors.

Ironmongery:

Polished anodized aluminium anti-finger trap, rise and fall hinge, DDA-compliant indicator bolt with emergency release facility.

Product Options

Maximum recommended depth:

1600 mm (including duct).

Digital objects
Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
