Trovex Diamond Wall Cladding

Verified by manufacturer over a year ago

Trovex

Hygienic PVC wall cladding.

Jump to:
+44 (0)1707 254170 Website

Description

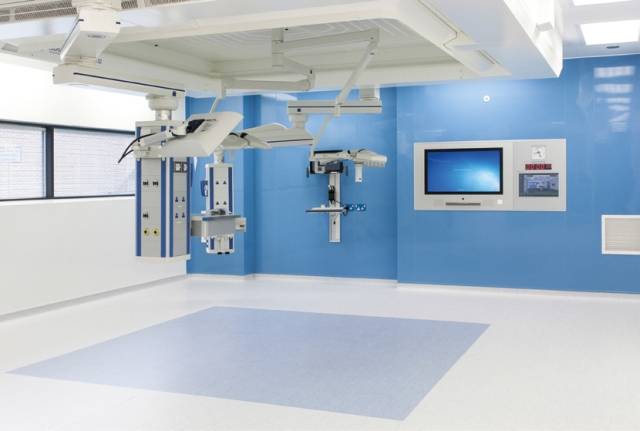

Hygienic PVC wall cladding with excellent strength and resistance to impact, moisture and chemicals. It is used to effectively clad walls and ceilings, providing a low-maintenance and antibacterial hygienic surface. Material is fully thermoformable and hot-seam weldable to create a seamless finish.

Preparation:

  • Good quality fairfaced brick or blockwork.
  • Well aligned joints bagged up flush.
  • Straight to within 3 mm over a 2 m straight edge and bricks/ blocks flush with those adjacent.
  • Sand cement rendering - 1:3 to a steel trowel finish.
  • 12.5 mm plasterboard.
  • Minimum 12 mm resin bonded plywood.
  • Ceramic tiles which are securely bonded to a substrate.
  • Certain sound painted surfaces, (an adhesive test is advisable to ascertain compatibility).
  • Plastered surfaces (subject to survey to confirm suitability).
  • Pink Lightweight Plasters - Generally not suitable.

General information

Material

Extruded semi-rigid PVC sheet (delivered with a peelable protection film)

Uniclass

Ss_25_25_75_65 Plastics veneered panel lining systemsPrimary

CAWS

K13/140 Proprietary laminated plastics-veneered panel lining

K13/145 Proprietary plastics cladding

K13/160 Proprietary

M50/150 Sheeting

M50/20 Sheeting

Product range

Hygienic Wall Cladding

Specification data - Plastics veneered panel lining systems

Product Reference

Trovex Diamond

Sheet

-

Sheet length

2500 mm

2750 mm

3000 mm

Colour

Diamond white

Guidance for specification option:

Standard.

Special order

Guidance for specification option:

Insert requirement from the Trovex Diamond Ambience Satin, Radiance Satin, Brilliance Gloss, Essence Woodgrain or Gallery Digitally printed colour collections.

Finish

Smooth gloss

Smooth satin

Adhesive

Trovex Bond Single Component Acrylic adhesive system

Trovex Bond Two-Part Polyurethane adhesive system

Jointing

Hot-welded joint

Guidance for specification option:

Colour matched.

Sealant system

Guidance for specification option:

Colour matched.

Two-part joining section

Guidance for specification option:

Standard, colour matched.

Base Substrate

New and Existing Plaster

Plasterboard

Ceramic Tiles

WBP Plywood (minimum 12 mm thickness)

Fairfaced blockwork

Accessories

None

Edge profile

External corner

Thermo-formed external corner

Thermo-formed internal corner

Two-part transition section

Guidance for specification option:

For vinyl flooring.

Standard product features

Sheet size:

  • Width: 1220 mm.
  • Thickness: 2.5 mm.

Material:

Extruded semi-rigid PVC sheet (delivered with a peelable protection film).

Fire behaviour:

Achieves Class 0 rating when installed onto a non-combustible substrate, and Class 1 fire rating to both BS 476-6 and BS 476-7.

  • Safe working temperature: 60°C.
  • Material softening point: 80°C.
  • Flash ignition temperature: 390°C (approximate).
  • Set ignition temperature: 450°C (approximate).
  • Trovex Diamond is self-extinguishing.

Chemical resistance:

Trovex Diamond has a smooth nonporous surface with dimensional stability and excellent chemical resistance.
