Triumph Cubicles - Unframed Panel Cubicle

Name: Triumph Cubicles - Unframed Panel Cubicle
Brand: Rearo Laminates Ltd
SKU: 2d4kdJ5WcTmLDiKnsouszV

Verified by manufacturer 2 days ago

Triumph - HPL

Rearo Laminates Ltd

Unframed, custom-fit, flushed fronted, full height panel cubicles with a minimalist design.

Jump to:

0141 440 0800 Website

Application

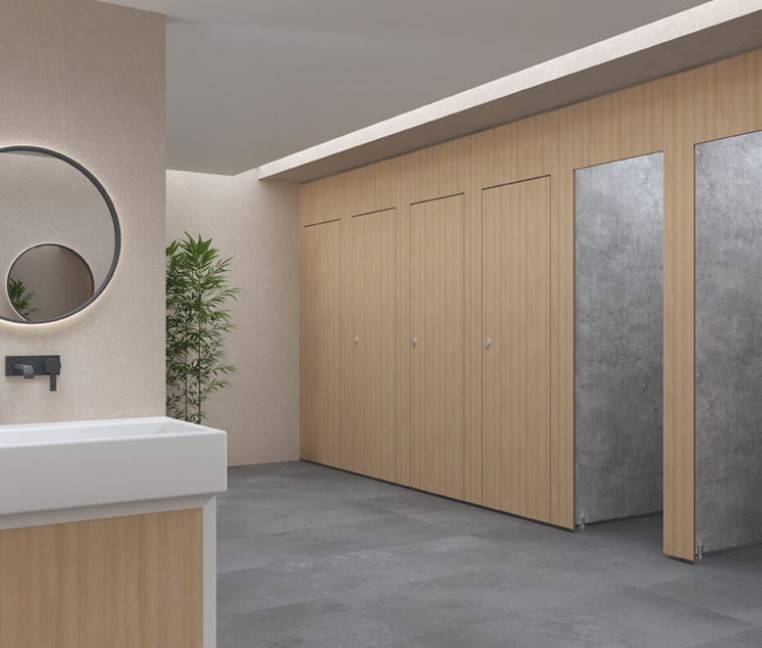

TRIUMPH CUSTOM-FIT CUBICLES FOR COMPLETE LUXURIOUS PRIVACY

Triumph offers a timeless, modern design characterised by smooth surfaces, clean lines, seamless fronts, and minimalist ironmongery. The carefully rebated pilasters and doors create a striking flush-fronted appearance, giving the illusion of floating walls. Meticulously crafted to embody the height of luxury, seamlessly blending style and function for a truly distinguished aesthetic.

Description

Unframed, custom-fit panel cubicles with a minimalist design, available in high pressure laminate (HPL) or solid grade laminate (SGL).

Features and benefits:

5 Week lead time from drawing approval.
Floor to ceiling cubicles
Flush fronted cubicles
Made to measure - helps to create a bespoke washroom.
Offers a minimalist aesthetic with floating design, smooth surfaces, clean lines, and seamless cubicle fronts.
Wide range of colour options.
High quality.
Doors are fitted with lift-off emergency hinges as well as an emergency release lock.
Robust stainless steel ironmongery ensures durability.
Panels do not need to be altered on site (scribing may be required).
Minimum of 20 mm ceiling clearance.
All pilasters and doors are pre-drilled for hinges and locks to simplify installation.
Hat/ coat hooks included as standard.

Also available with the option of enhanced height and privacy (specified separately).

General information

Color	White Blue Grey Brown Turquoise Silver Red Pink Green Beige Orange Yellow Black Other Show more Manufacturer guidance See the Colour Selector brochure for swatches.
Finish	Laminated Other
Material	High pressure laminate (HPL) Solid grade laminate (SGL) Aluminium Stainless steel Acrylonitrile butadiene styrene (ABS) Wood Show more
Length	Bespoke 1500 mm Manufacturer guidance Depth.
Width	Bespoke
Height	2790 mm Bespoke
Warranty description	Five year Guidance for specification option: HPL. Ten year Guidance for specification option: SGL.

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/120 Panel cubicles K32/10 Panel cubicles

Specification data - Panel cubicle systems

Classification data
Panels	600 kg/m³ moisture-resistant chipboard, HPL-faced both sides, 19 mm.
Panel supports	Stainless steel grade 316 pedestal. Guidance for specification option: Pedestal adjustment: +/- 5 mm (20 mm legs), +/- 20 mm (85–150 mm legs).
Pilasters	700 kg/m³ moisture-resistant medium density fibreboard (MR MDF), HPL-faced both sides, 32 mm.
Doors	700 kg/m³ moisture-resistant medium density fibreboard (MR MDF), HPL-faced both sides, 32 mm.
Lippings	Hardwood, rebated, sanded and sealed. 2 mm matching acrylonitrile butadiene styrene (ABS).
Hardware	Stainless steel grade 316 lift-off gravity hinges with cover plates to conceal fixings. Indicator bolt and keeper. Guidance for specification option: Indicator bolt: Stainless Steel 316 lever turn with bolt through concealed fixings. Circular slim 7 mm faceplate and emergency release facility.
System accessories	- Manufacturer guidance Consult manufacturer and insert requirements or omit.
Dimensions	Finished floor level: 2790 mm. Panel height: Up to 2780 mm. Partition depth: Up to 1840 mm. Door size: 2000 mm (with over panels fitted above the door). Manufacturer guidance Consult manufacturer for further details.
Headrail	Aluminium, nickel painted 32 mm over-panel fixed to pilasters with aluminium plates.
Floor Clearance	20–150 mm. Manufacturer guidance Consult manufacturer for details and insert requirement.
Finish	Bleached cuneo oak H3311. Parona walnut H1715. Brown cuneo oak H3317. Brown warmia walnut H1307. Dark hunton oak H2033. Tobacco gladstone oak H3325. Marone castella oak H1369. Truffle brown denver oak H1399. Dark grey fineline H3198. Carat beige U115. Sand beige U156. Almond beige U211. Taupe grey U750. Cubanit grey U767. Sage green U638. Reed green U604. Antique rose U325. Rusty red U335. Chromix silver F638. Dark grey chicago concrete F187. Manufacturer guidance See the Colour Selector brochure for swatches.
Fixings	Partition fixed to wall: Aluminium, nickel painted polyester powder-coated (PPC) ‘U’ channel. Pilaster fixed to wall: Aluminium, nickel painted polyester powder-coated (PPC) ‘L’ channel. Pilaster fixed to partition: Aluminium, nickel painted polyester powder-coated (PPC) ‘U’ channel.
Channel	Aluminium, nickel painted polyester powder-coated (PPC) wall channel. Manufacturer guidance Wall channel.
Size	Manufacturer's standard. Guidance for specification option: Pilaster sizes are designed and proposed based on site sizes or layout drawings. Consult manufacturer for details.

Sustainability data

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	United Kingdom
Manufacturing plant location	29 Loanbank Quadrant, Glasgow G51 3HZ, UK
Material	High pressure laminate (HPL) Solid grade laminate (SGL) Aluminium Stainless steel Acrylonitrile butadiene styrene (ABS) Wood
Recyclability	HPL can be recycled into chipboard or used as bio-mass. SGL can only be used as bio-mass. Aluminium and stainless steel Ironmongery can be recycled repeatedly without losing it's quality.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	85 %
Expected Life	Five year Ten year
