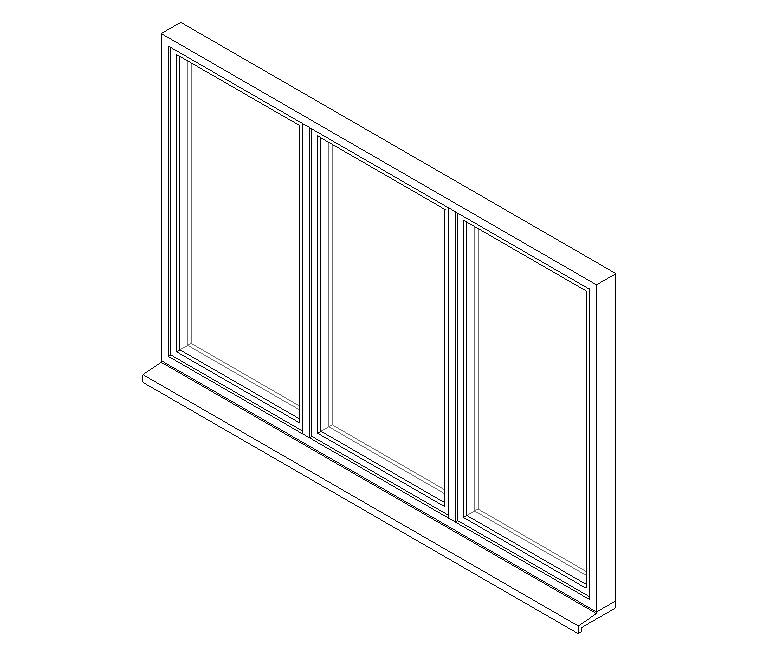

Triple Window System with Tilt-Turn Opening Lights and Central Fixed Light
Verified by manufacturer 9 months ago
Generic triple window system with tilt-turn opening lights and central fixed light.
Description
Pre-assembled generic triple exterior window system with optional sill, double or triple glazing.
System includes:
- Tilt-Turn Light
- Fixed Light
- Outer Frame
- Mullion
- Optional Sill
General information
Material | Acrylic |
Length | 1800 mm |
Width | 1200 mm |
Height | 80 mm |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 4 |
 IFC | - | 4 |
