Double Window System with a Side Hung Opening Light and Fixed Light

Verified by manufacturer 6 months ago

NBS

Generic double window system with a side hung light and fixed light.

Jump to:
BIM object icon
+44 (0)345 4569594 Website

Description

Pre-assembled generic double exterior window system with optional sill, double or triple glazing.

System includes:

  • Side Hung Opening Light
  • Fixed Light
  • Outer Frame
  • Mullion
  • Optional Sill

General information

Length

1200 mm

Width

1200 mm

Height

80 mm

Uniclass

Ss_25_30_95_95 Window systemsPrimary

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2016

4

IFC
-

4

Similar products from NBS

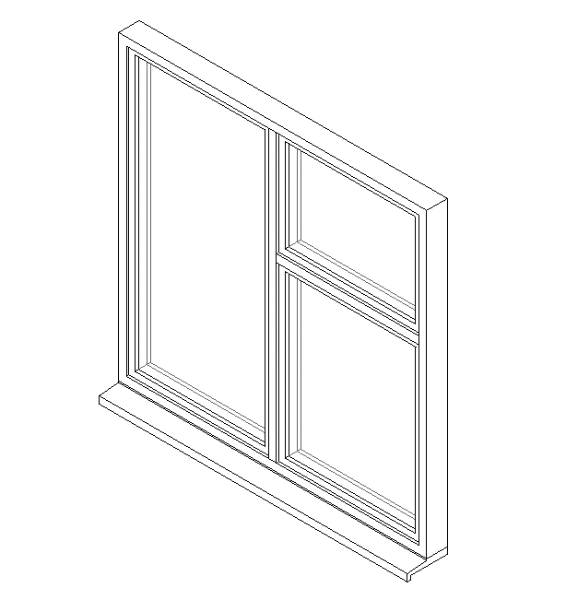

Double Window System with a Side Hung Light and Fixed Light with Opening Transom

Double Window System with a Side Hung Light and Fixed Light with Opening Transom

Double Window System with a Tilt-Turn Opening Light and Fixed Light

Double Window System with a Tilt-Turn Opening Light and Fixed Light

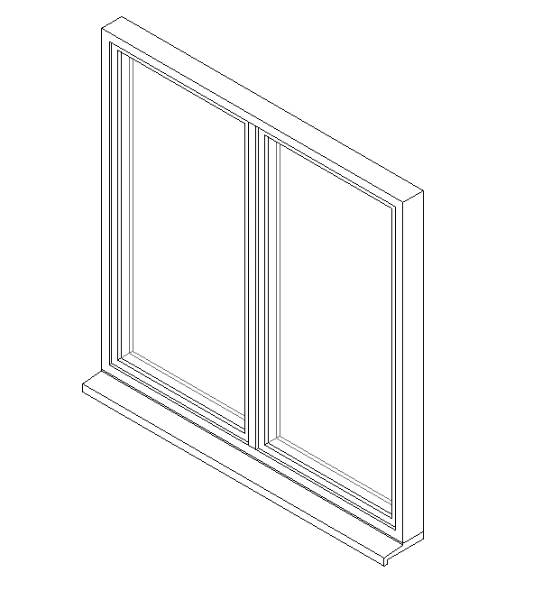

Double Window System with Side Hung Opening Lights

Double Window System with Side Hung Opening Lights

Double Window System with Tilt-Turn Opening Lights

Double Window System with Tilt-Turn Opening Lights

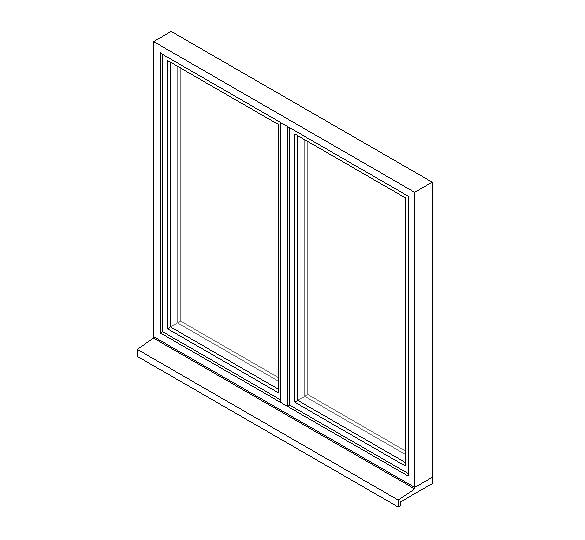

Double Window System with Top Hung Opening Lights

Double Window System with Top Hung Opening Lights

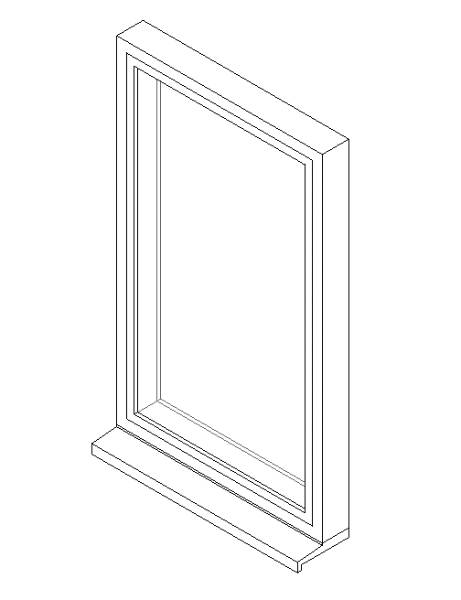

Single Fixed Light Window System

Single Fixed Light Window System

Single Window System with a Fixed Light and Opening Transom

Single Window System with a Fixed Light and Opening Transom

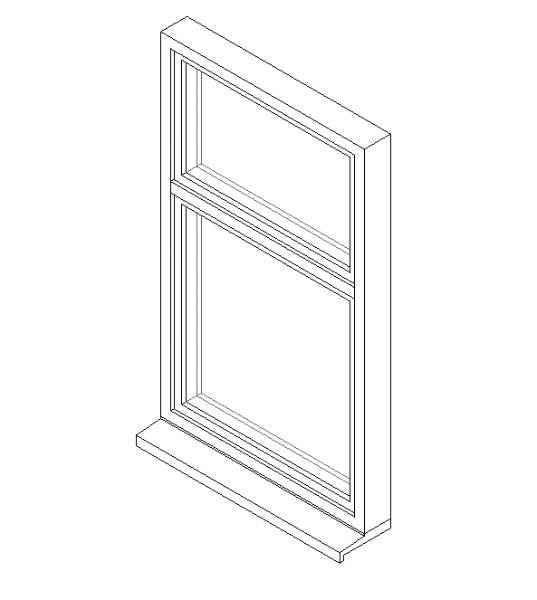

Single Window System with a Fixed Light and Transom
