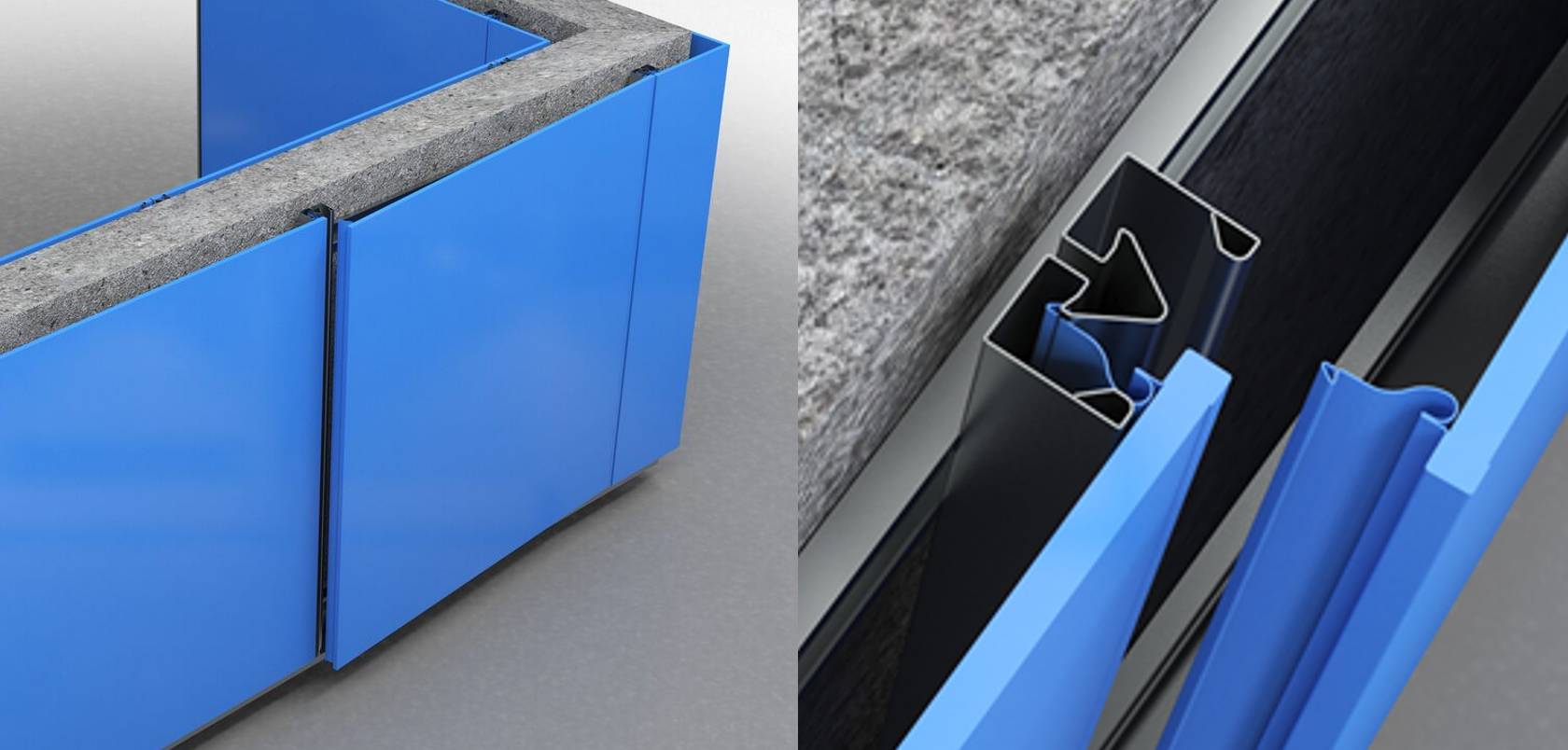

Trimawall® - Internal Walling System
Verified by manufacturer 2 days ago
An innovative mounting and panel system that can be applied as an internal fit-out panel with service void or alternatively as an external metal rainscreen facade.
Application
Trimawall® featuring Trisofix universal mounting and panel system can be used throughout a building, both as a facade and internal fit out as a hybrid solution mounted over a wide range of structural wall types. It is a particularly suitable choice for large building projects such as schools, hospitals, offices and housing schemes, where quick build times and guaranteed quality are of particular importance.
Suitable uses include:
- Volumetric builders.
- Traditional construction.
- Schools.
- Commercial offices and retail.
- Healthcare.
Description
Trimawall® is a DfMA (Designed for Manufacture and Assembly) solution that can help unlock additional capacity both off-site and on-site, facilitating on-time, on-budget delivery of projects. Featuring the Trisofix universal mounting system and Trimawall high performance panels can be used throughout a building, both as a facade and internal fit out as a hybrid solution mounted over a wide range of structural wall types.
Features and benefits:
- Benefit supply chain shortages within construction.
- Versatile.
- Pre-cut, pre finished panels.
- Rated to severe duty deflection and patressesing standards (BS EN 5234-2).
- Minimised waste.
- Individually demountable panels.
- Accessible service cavity means that it can be installed, demounted and then reconfigured.
- Simple M&E install.
- Durable magnetic Colorcoat® or Advantica® L Control finish.
System components:
- Base angle: 2.0 mm S280 G250 creates the level, supports panels seals into floor.
- Horizontal mounting rails: Steel C channel, 1.6 mm galvanized fixed to main structural wall. 3000 mm standard lengths.
- Sliding connector: 0.7 mm eCoated spring steel with twist in fit.
- Vertical retaining rail – 1.0 mm galvanized steel that snap clicks into place and can be slid into along the mounting rail, deskilling installation and making it easy to be positioned. 2800 mm lengths.
- Pre-finished panels with Push-fit panel clip (Pr_20_29_14_68) – 10.5 mm severe duty rated panels with push-in installation.
General information
Color | Other Guidance for specification option: A wide range of BS & RAL standards are available upon request, consult manufacturer. |
Finish | Painted Guidance for specification option: Colorcoat Advantica-L Control and Colorcoat Prisma. |
Material | Steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 40 year Guidance for specification option: Please contact manufacturers technical department for application guidance and period of warranty based upon project particulars. |
Uniclass | |
CAWS | H31/120 Metal profiled sheet self-supporting cladding/ roof covering H31/10 Metal H92/120 Rainscreen cladding |
Specification data - Specialist faced panel lining systems
Classification data | |
Battens | Not required. |
Panels | Trimawall® pre-finished panels. Guidance for specification option:
|
Fasteners | Trimawall® Fast Fit’s patented clip system. |
Finish | Colorcoat Prisma®. Guidance for specification option:
Advantica® L Control. Guidance for specification option:
Manufacturer guidancePanel finish. |
Mounting | Horizontal mounting rail. Base angle. Sliding connector. Vertical retaining rail. |
Base colour | Guidance for specification option: A wide range of BS & RAL standards are available upon request, consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceAll construction products and materials supplied from Building Systems UK are produced locally with high levels of UK content, this includes, but is not limited to, the production of pre-finished steel, the production of our construction products including our ComFlor® steel floor deck, our Trisomet® and Trimapanel® wall and roof panel systems and our RoofDek roofing profiles. During our transition to low CO2 intensive Electric Arc Furnace steel manufacture our feedstock is supplied from our sister plant in the Netherlands, our parent in India and other selected high quality and approved manufacturers. Our UK supply chain is certified to the Responsible Sourcing Framework BES 6001 and we operate an Environmental Product Declaration programme (a unique service) with the ability to supply bespoke EPD’s against project specifications. This capability means that Building Systems UK are one of the most environmentally reported construction product manufacturers in the world. Supporting local construction product manufacture, with Building Systems UK, will support the future of UK Steel supply chain – a necessity for a prosperous UK Construction Sector |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 16.1 % Manufacturer guidanceThe concept of recycled content is a useful metric to stimulate economies of scale around recycling of materials which may otherwise be incinerated or land-filled. But this is not the case for steel. Steel has been recycled for over 150 years and the recycling process and infrastructure is efficient and economical without any added stimulus. Scrap steel is valuable, so wherever it can be recovered it is, and very little steel ever goes to waste.
Provided this is understood we can confirm for the financial year 22/23 Tata Steel UK produced 2.93 million tonnes of crude steel, recycling 0.472 million tonnes of steel scrap. This equates to a recycled content of 16.1%. A breakdown of the scrap by source shows that ~12.5% was internal pre consumer scrap. The remaining ~3.6% was externally sourced commercial scrap. As the exact mix of the scrap cannot be fully determined it is not possible to define this as pre/post-consumer scrap per the LEED v4 definition. |
