Travelling Ladder

Verified by manufacturer 3 months ago

Eurosafe Solutions Ltd

Traversing ladder system mounted to facade via monorail(s). System designed to provide access to facade for maintenance purposes incorporating a built-in fall protection system.

Jump to:
+44 (0)114 250 7411 Website

Application

Facade Access System to provide maintenance access to straight, inclined, or curved glass roofs, green roofs, or facades.

System to traverse on monorail(s) mounted to structure within the facade.

Description

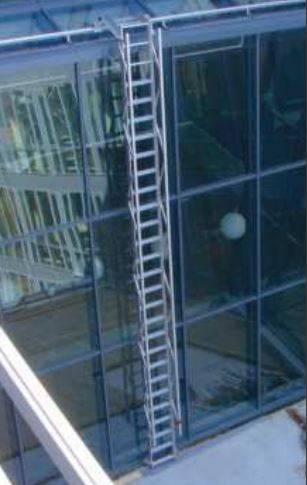

Traversing ladder system for access to straight, inclined or curved glass roofs, green roofs or facades.


Features and benefits:

  • Safe and easy access for maintenance and cleaning.
  • Almost any design possible, consult the manufacturer.
  • Ladders can follow the shapes of most structures.
  • Incorporates fall protection system.
  • Can be powder coated or anodised to suit colour scheme.
  • Horizontal movement possible via either manual trolley, belt driven trolley, motorised trolley or battery powered motorised trolley.

General information

Color

Silver

Other

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_80_30_25_90 Travelling ladder access systemsPrimary

CAWS

N25/140 Travelling ladder

Product range

Facade Access

Specification data - Travelling ladder access systems

Rail tracks

-

Upper

Aluminium.

Lower

Aluminium.

Ladder

-

Type

Travelling ladders.

Load

120–240 kg.

Guidance for specification option:

(1—2 men).

Manufacturer guidance

Rated load.

Weight

Guidance for specification option:

Dependant of design.

Dimensions

Guidance for specification option:

According to spec.

Operation

Manual.

Rope driven.

Electric.

Horizontal

Yes.

Manufacturer guidance

Horizontal movement.

Vertical

No.

Manufacturer guidance

Vertical movement.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100%

Literature

Lightweight Solutions for Facade Maintenance

Lightweight Solutions for Facade Maintenance

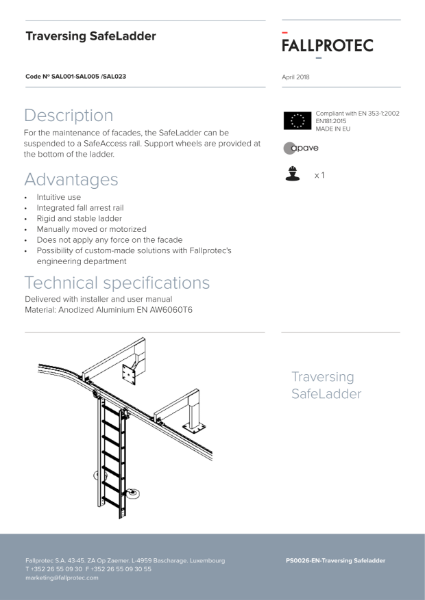

Traversing SafeLadder

Traversing SafeLadder
