Application

Aesthetic solution for providing access to facades.

Description

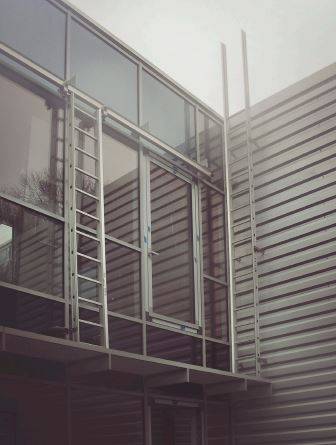

A SafeLadder travelling on a SafeAccess rail fixed on the facade or a parapet. Wheels are provided at the bottom of the ladder to increase the stability. Additional accessories may be fitted on the ladder, such as a platform above a parapet, footrests and telescopic sections among others. The ladder is connected to the rail through a wide range of trolleys that can be motorized - even battery operated trolleys - or manually operated, allowing the horizontal displacement all over the facade.

The SafeLadder is an aluminium ladder equipped with an integrated protection system against falls.


Features and benefits:

  • The system has been designed and tested in accordance with the EN 353-1 standard for personal protective equipment.
  • Rapidly installed and low-cost solution.
  • Easily operated. Just requires basic training in work at heights.
  • A lightweight solution.
  • A discrete solution for cleaning facades.
  • The SafeAccess rail system is an anchoring device that has been tested and approved according to the standard EN 1808 for suspended access equipment.

General information

Color

Silver

Other

Guidance for specification option:

Can be powder coated.

Finish

Powder-coated

Anodized

Material

Aluminium

Guidance for specification option:

EN AW6060 T6.

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_80_30_25_90 Travelling ladder access systemsPrimary

CAWS

N25/140 Travelling ladder

Product range

Facade Access

Specification data - Travelling ladder access systems

Rail tracks

-

Upper

Aluminium.

Lower

Aluminium.

Ladder

-

Type

Travelling ladders.

Ancillary equipment

SafeAccess system.

Guidance for specification option:

The rail is made from aluminium alloy EN AW6060 T6.

Each section of rail is connected to the next one by a junction section (rectangular tube) fixed by riveting.

SafeAccess system C.

Guidance for specification option:

The Fallprotec SafeAccess C system is designed for traversing systems fixed under ceiling.

Traversing ladders 10/Jan/2017 4 The rail is made of raw aluminium alloy EN AW6060 T66, on request it can be powder coated or anodized. The rail can be mounted in a false ceiling our on the underside of a ceiling.

Brackets

Placed at each end of the rail and at regular intervals.

Guidance for specification option:

Two adjacent brackets should not exceed 3 meters for a suspended load of 2 x 400 kg. The distance between façade and rail is 600 mm (others on request).

Sustainability data

Contains Red List materials

No

Recyclability

100%
