TWI50-K-59(2x50)(200)
BSI Kitemark
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type
UK Conformity Assessed (UKCA)
Certificate type

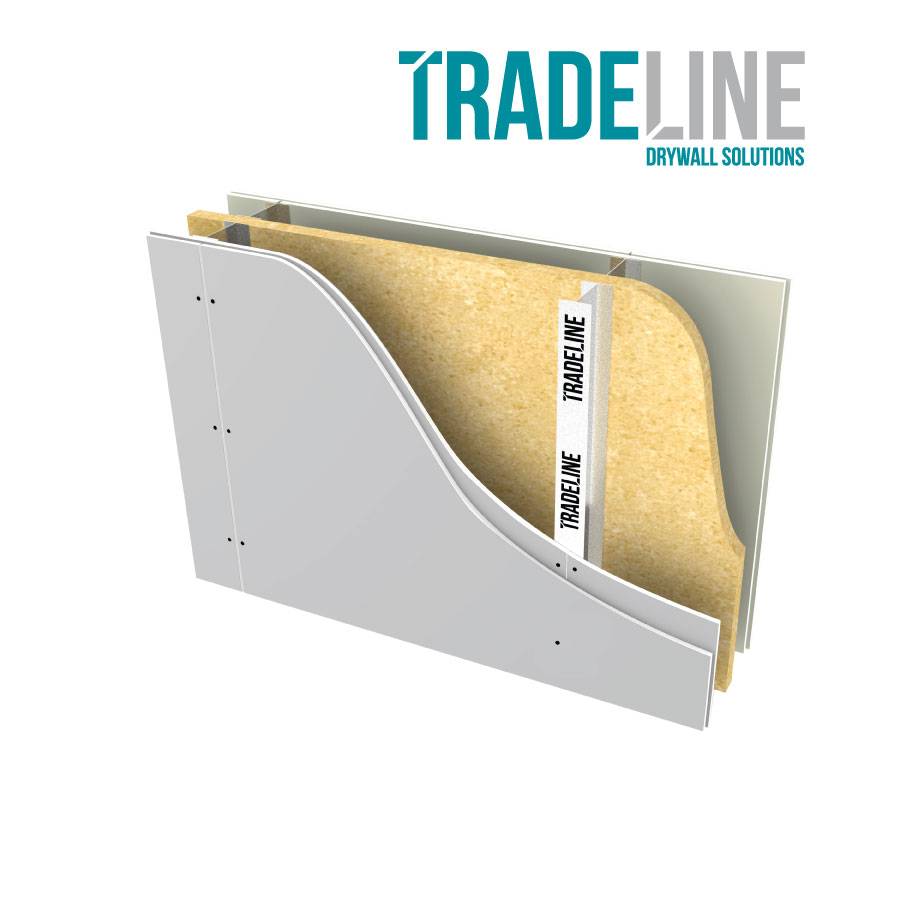

Lightweight plasterboard partition system.
Wall partitions.
Lightweight, quick to construct, cost-effective, compact and able to achieve high levels of fire resistance and sound insulation. The non-load bearing high performance walls, constructed from plasterboard facings on metal studs, offer considerable advantages over traditional heavy masonry construction.
Features and benefits:
Structural performance:
Fire performance:
Acoustic performance:
Installing framing for partitions:
Length | Bespoke |
Width | 200 mm 210 mm 250 mm 260 mm 270 mm |
Height | Bespoke |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Product range |
Framing | Twin Tradeline 'I' Stud, 50 mm. |
Insulation | Acoustic partition roll, 50+50 mm. |
Linings | |
Inner layers | Knauf Soundshield Plus, 12.5 mm. |
Outer layers | Knauf Soundshield Plus, 12.5 mm. |
Fasteners | Tradeline Drywall Screws. |
Joint treatment | Tradeline Joint Tape.Tradeline Paper Joint Tape.Tradeline Light Weight All Purpose Joint Compound.Tradeline Metal Corner Tape.Tradeline Flexible Metal Corner Tape.Tradeline Scrim Tape.Tradeline Drywall Self-Adhesive Joint Tape. |
System accessories | Tradeline Acoustic Intumescent Sealant.Tradeline PB24 Partition Brace.Tradeline FS24 Flat Bracing Strip.Tradeline ASP19B Plywood Service Support Plates. |
Fire resistance | To BS 476:1987:Part 22, 120/ 120 minutes (Integrity/ Insulation). |
Partition height | Guidance for specification option: Insert requirement based on centres specified.
Calculated based on a limiting deflection of L/240 at 200 Pascals. |
Nominal thickness | 200 mm. Guidance for specification option: Optimum system thickness. Note that if a greater partition thickness is required, this may improve the sound reduction index (Rw) - consult manufacturer for details. |
Calculated weighted sound reduction index (Rw) | 69 Rw dB (-9). Guidance for specification option: Based on the nominal system thickness. |
Centres | 600 mm. Guidance for specification option: Standard. 400 mm. Guidance for specification option: Allows for greater partition heights. |
StrengthGrade | Severe duty. |
Head/ Floor channel | Tradeline Standard Track. Guidance for specification option: Used for partition heights under 4 m. Available in 50, 52, 62 or 72 mm wide. 25 mm flange. Tradeline 32 mm Leg Track. Guidance for specification option: Used for partition heights under 4 m. Available in 52, 62, 72, 94 or 148 mm wide. 32 mm flange. Tradeline Deep Track. Guidance for specification option: Used for partition heights between 4 m and 8 m. Can be used as a head track where a deflection head of up to 30 mm is needed. Available in 52, 62, 72, 94 or 148 mm wide. 50 mm flange. Tradeline Extra Deep Track. Guidance for specification option: Used for partition heights between 8 m and 10.2 m. Can be used as a head track where a deflection head of up to 45 mm is needed. Available in 72, 94 or 148 mm wide. 70 mm flange. |
Standards | To BS 5234-2:1992 Annexes A-F, BS 476:1987:Part 22, BS EN ISO 10140-2: 2010. |
