TRADELINE Shaft Encasement Systems Utilising Knauf Board
Verified by manufacturer 4 months ago
SE60-K-56
SE60-K-56
BSI Kitemark
Certificate type
EPD
Certificate type
ISO 9001 Quality Management
Certificate type
UK Conformity Assessed (UKCA)
Certificate type

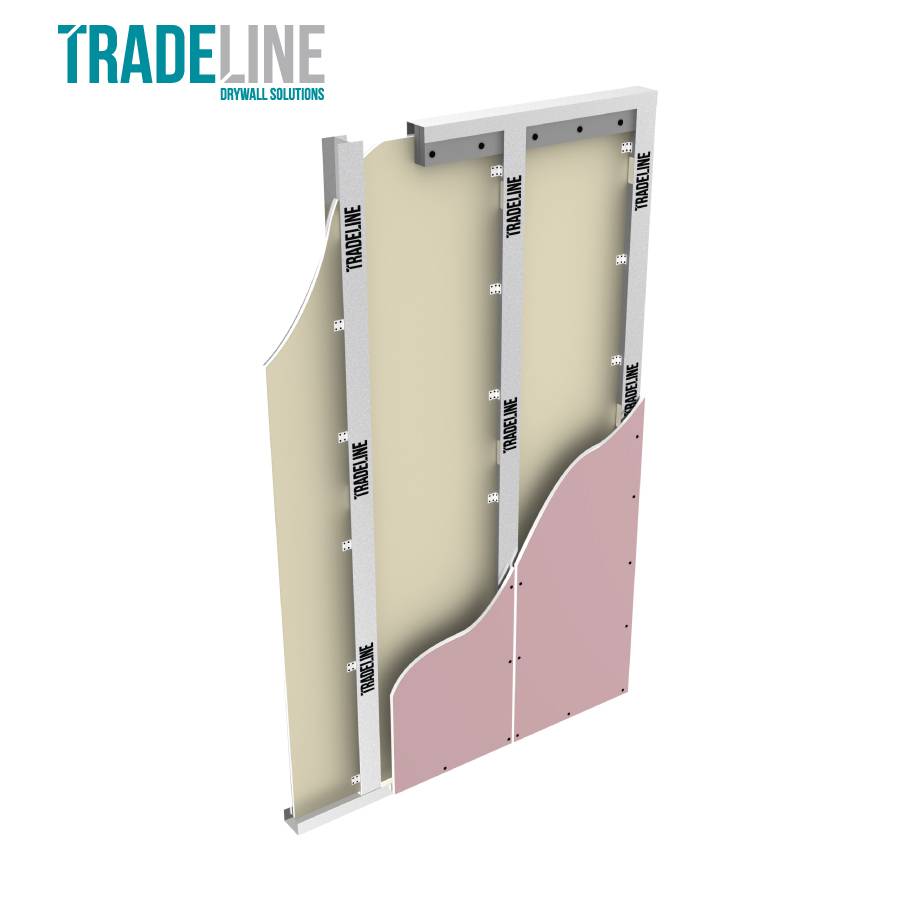

TRADELINE Shaft Encasement system is a high-performance fire protection system to enclose shafts and service risers.
Application
Sectors:
- High rise residential.
- Education.
- Healthcare.
- Leisure.
- Student accommodation.
- Offices.

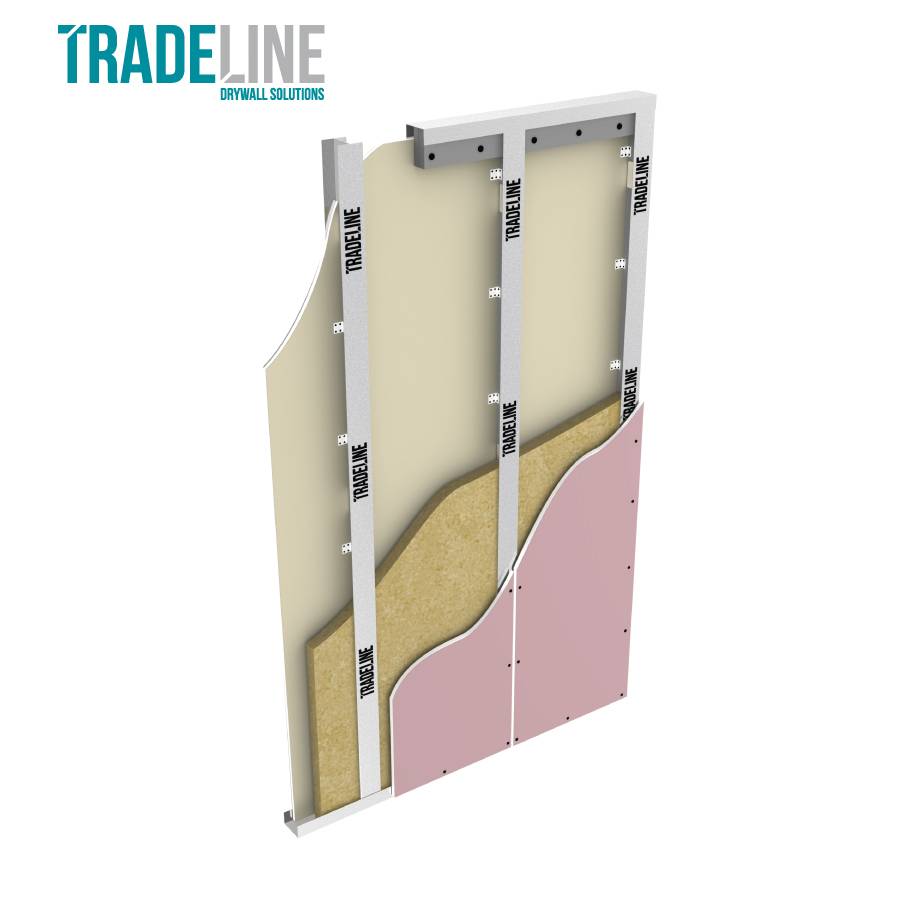

Description
TRADELINE Shaft Encasement systems are lightweight, non-load-bearing, friction-fit systems.
They can be used within all sectors and provide high levels of fire resistance for up to 120 minutes.
Due to its construction method, it can be used within areas of limited access such as service risers.
Features and benefits:
- Fast and simple to erect.
- Cost effective.
- Good impact resistance and stiffness.
- Lighter in weight than masonry.
- High level of fire protection.
- Allows any thickness of Coreboard to be used.
Structural performance:
- Strength grade to BS 5234-2:1992 Annexes A-F.
Fire performance:
- Fire resistance to BS 476:1987:Part 22.
Acoustic performance:
- Calculated weighted sound reduction index (Rw) to BS EN ISO 10140-2: 2010.
Installing framing for partitions:
- Partition height (maximum) calculated based on a limiting deflection of L/240 at 200 Pascals.
General information
Length | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Product range |
Specification data - Gypsum board partition systems
Framing | Tradeline 'I' Stud, 60 mm. |
Linings | |
Inner layers | Knauf Coreboard, 19 mm.Guidance for specification option: Secured in-between Tradeline 'I' stud. |
Outer layers | Knauf Fire Panel, 15 mm. |
Fasteners | Tradeline Drywall Screws. |
Joint treatment | Tradeline Joint Tape.Tradeline Paper Joint Tape.Tradeline Light Weight All Purpose Joint Compound.Tradeline Metal Corner Tape.Tradeline Flexible Metal Corner Tape.Tradeline Scrim Tape.Tradeline Drywall Self-Adhesive Joint Tape. |
System accessories | Tradeline Acoustic Intumescent Sealant.Tradeline PB24 Partition Brace.Tradeline FS24 Flat Bracing Strip.Tradeline ASP19B Plywood Service Support Plates. |
Fire resistance | To BS 476-22: 1987, 60/ 60 minutes from shaft side (Integrity/ Insulation). |
Partition height | Guidance for specification option: Insert requirement, maximum 3800 mm. Maximum based on 600 mm centres and calculated based on a limiting deflection of L/240 at 200 Pascals. |
Calculated weighted sound reduction index (Rw) | 39 Rw dB. Guidance for specification option: Based on the optimum system thickness. |
Centres | 600 mm. |
StrengthGrade | Heavy duty. |
Head/ Floor channel | Tradeline Standard Track. Guidance for specification option: Used for partition heights under 4 m. Available in 50, 52, 62 or 72 mm wide. 25 mm flange. Tradeline 32 mm Leg Track. Guidance for specification option: Used for partition heights under 4 m. Available in 52, 62, 72, 94 or 148 mm wide. 32 mm flange. Tradeline Deep Track. Guidance for specification option: Used for partition heights between 4 m and 8 m. Can be used as a head track where a deflection head of up to 30 mm is needed. Available in 52, 62, 72, 94 or 148 mm wide. 50 mm flange. Tradeline Extra Deep Track. Guidance for specification option: Used for partition heights between 8 m and 10.2 m. Can be used as a head track where a deflection head of up to 45 mm is needed. Available in 72, 94 or 148 mm wide. 70 mm flange. |
Product Reference | TRADELINE Shaft Encasement System |
Sustainability data
Third party certifications
Third party certifications
BSI Kitemark
BIM Level 2 Kitemark - For Design and Construction Phase
BSI Kitemark
BSI Kitemark™ for BIM Objects
EPD
Environmental Product Declaration EPD - Drylining
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
UK Conformity Assessed (UKCA)
UKCA Declarations of Performance - Drylining
Literature

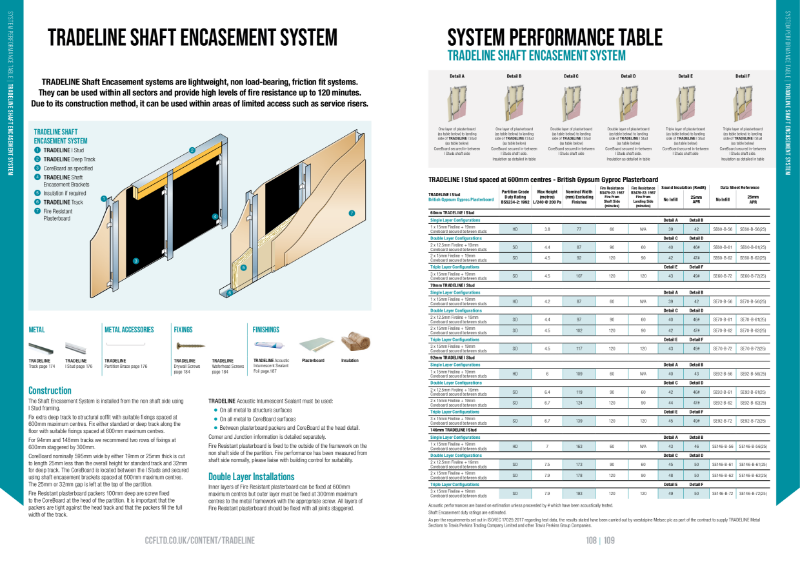

Product Data Sheet - Drylining
TRADELINE Shaft Encasement System
