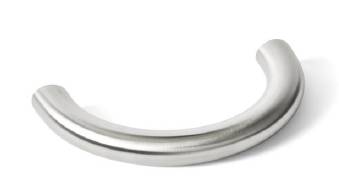

Tom Dixon collection: Fat pull handle, small - Pull handle
Verified by manufacturer 6 months ago
FAT PULL HANDLE SMALL Bush, Ø35, cc70, SSS
FAT PULL HANDLE SMALL Bush, Ø35, cc70, SSS
Stainless steel, pull handles.
Application
Stainless steel Fat pull handle, small. Suitable for all building types.
Description
Stainless steel, pull handles.
The FAT collection is a series of architectural hardware pieces designed by English industrial designer Tom Dixon.
Features and benefits:
- Available in multiple finishes and colours.
- Part of Tom Dixon collection.
- 35 mm diameter.
- Available in small, medium and large.
- Manufactured in the highest quality marine grade, AISI 316 stainless steel, protecting against high levels of corrosion.
- 20 year warranty.
General information
Color | Silver Guidance for specification option: Satin stainless steel. Black Guidance for specification option: Charcoal. Blue Guidance for specification option: Electric blue. Gold |
Finish | Satin PVD Brass |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Shape | Circle |
Length | 105 mm 175 mm 245 mm |
Width | 35 mm Manufacturer guidanceDiameter. |
Height | 65 mm 100 mm 135 mm Manufacturer guidanceProjection. |
Warranty description | 20 year Guidance for specification option: 20 year warranty (5 years for coated items). |
Uniclass | |
CAWS | P21/42 Pull handles P21/641 Pull handles |
Specification data - Pull handles
Classification grades (minimum) | |
Door mass | No requirement. |
Corrosion resistance | 3. |
Form | D handle. |
Diameter | 35 mm. |
Material and finish | Stainless steel AISI 316 (satin).Guidance for specification option: Satin grain 320, crafted by hand. Stainless steel AISI 316 (PVD).Guidance for specification option: Charcoal. Stainless steel AISI 316 (powder-coated).Guidance for specification option: Electric blue. Stainless steel AISI 316 (brass). |
Colour | Satin steel.Charcoal.Electric blue.Brass.Stainless steel. |
Accessories | Not required. 14491792303 - Bush head bolt M10 x 30 mm. 14491792605 - Bush head bolt M10 x 60 mm. 14970100077 - Grub screw M5 x 10 mm, DIN 916. 14976500106 - Allen key 2.5 mm. |
Diameter | 35 mm. |
Dimensions | 105 x 65 mm. Manufacturer guidanceLength x projection. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
FAT by Tom Dixon
Book of curated collections
Fat pull handle (data sheet)
