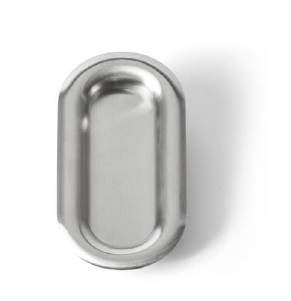

Tom Dixon collection: Fat flush pull handle, oval - Flush pull handle
Verified by manufacturer 1 month ago
Stainless steel, flush, oval pull handle.
Application
Stainless steel Fat flush pull handle, oval.
Description
Stainless steel, flush, oval pull handle.
The FAT collection is a series of architectural hardware pieces designed by English industrial designer Tom Dixon.
Features and benefits:
- Available in multiple finishes and colours.
- Part of Tom Dixon collection.
- 70 mm diameter.
- Manufactured in the highest quality marine grade, AISI 316 stainless steel, protecting against high levels of corrosion.
- 20 year warranty.
General information
Color | Silver Guidance for specification option: Satin stainless steel. Black Guidance for specification option: Charcoal. Blue Guidance for specification option: Electric blue. Gold |
Finish | Satin PVD Brass |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Shape | Oval |
Length | 140 mm |
Width | 70 mm |
Height | 19 mm Manufacturer guidanceProjection. |
Warranty description | 20 year Guidance for specification option: 20 year warranty (5 years for coated items). |
Uniclass | |
CAWS | P21/42 Pull handles P21/641 Pull handles |
Specification data - Pull handles
Classification grades (minimum) | |
Door mass | No requirement. |
Corrosion resistance | 3. |
Diameter | 70 mm. |
Material and finish | Stainless steel AISI 316 (satin).Guidance for specification option: Satin grain 320, crafted by hand. Stainless steel AISI 316 (PVD).Stainless steel AISI 316 (powder-coated). |
Colour | Satin steel.Charcoal.Electric blue. |
Accessories | Not required. 14970102016 - Grub screw, M5 x 6.8 mm. 14970102019 - Grub screw, M5 x 8.3 mm. |
Diameter | 70 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Material | Stainless steel Guidance for specification option: Stainless steel AISI 316. |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
FAT by Tom Dixon
Book of curated collections
Fat flush pull handle, oval (data sheet)
d line warranty declaration
Case studies
Vyn restaurant & hotel
