Titan - Door Single

Titan - Door Single

Troax (UK) Ltd

Elan double skin steel, single hinged doors are available in a variety of styles for use with the Elan panel partitioning wall system.

Jump to:
+44 (0)1793 542000 www.troax.com/gb

Application

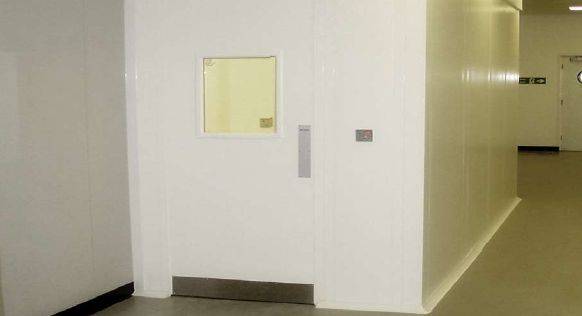

Suitable for use in cleanroom environments, where clean processes are undertaken. Can also be used for offices and enclosures where a high quality of finish is required.

Description

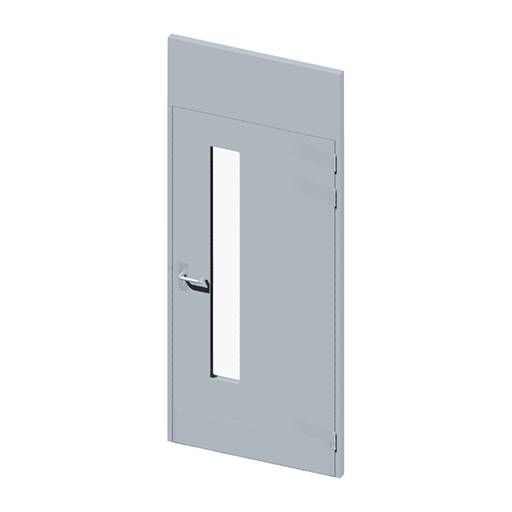

Single door for use within the Titan partitioning system.


Features and benefits:

High quality, hygenic.


General information

Shape

Rectangle

Color

White

White - RAL 9010.

Finish

Powder coated

Material

Carbon steel

Carbon steel facings with bonded composite core

WarrantyDescription

The warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

-

Uniclass 2015

Pr_30_59_24_52 Metal doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Titan

Specification data - Metal doorsets Enhanced data

Configuration

Single leaf, single action.

Doorset size

Insert requirement, available 900–1000 x 2390–3615 mm (w x h), 1971 mm opening height.

-

Frame

-

Threshold

None.

Installation fasteners

Connects to adjacent Titan panels using unique cleat and cover channel.

Door leaf

-

Thickness

50 mm.

Core

Honeycomb paper.

Panel details

Full steel.

Steel/ disabled access vision panel.

Steel/ rectangular vision panel.

Material

Carbon steel.

Glazing

-

Type

Glazing is bonded to the frame, 6 mm toughened.

Finish

-

Coating

TGIC and lead free powder coated to an average thickness of 70 microns.

External colour

White - RAL 9010.

Internal colour

White - RAL 9010.

Film thickness (minimum)

70 microns (average).

Hardware

Hinges: flush fitted stainless steel, handles: satin finish stainless steel handles, closer: satin finish stainless steel.

Architraves

-

Material

Metal.

Accessories

Drop down seal.

Entry systems.

Handicap accessible.

Self-closers.

Special order.

Insert requirements.

None.

Louvered vents.

Round vision panels.

Spy holes.

Stainless steel framed vision panels.

Stainless steel kick plates.

Environmental information

Country of material origin

United Kingdom

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

2

1.3
Revit

Revit 2015

2

1.3
Download now from NBS National BIM Library
