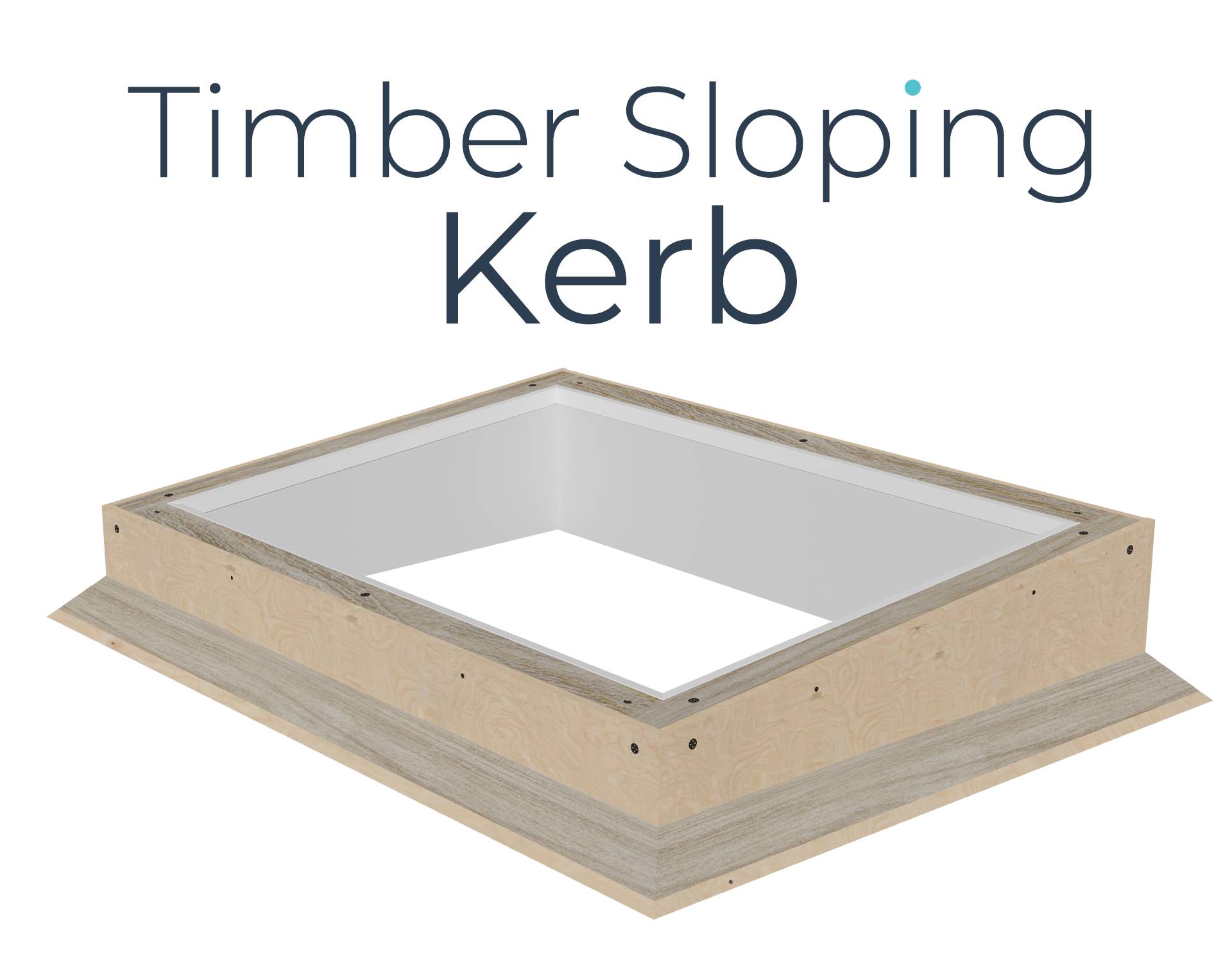

Timber Sloping Kerb - Builders Kerb
Verified by manufacturer 4 months ago
S2
S2

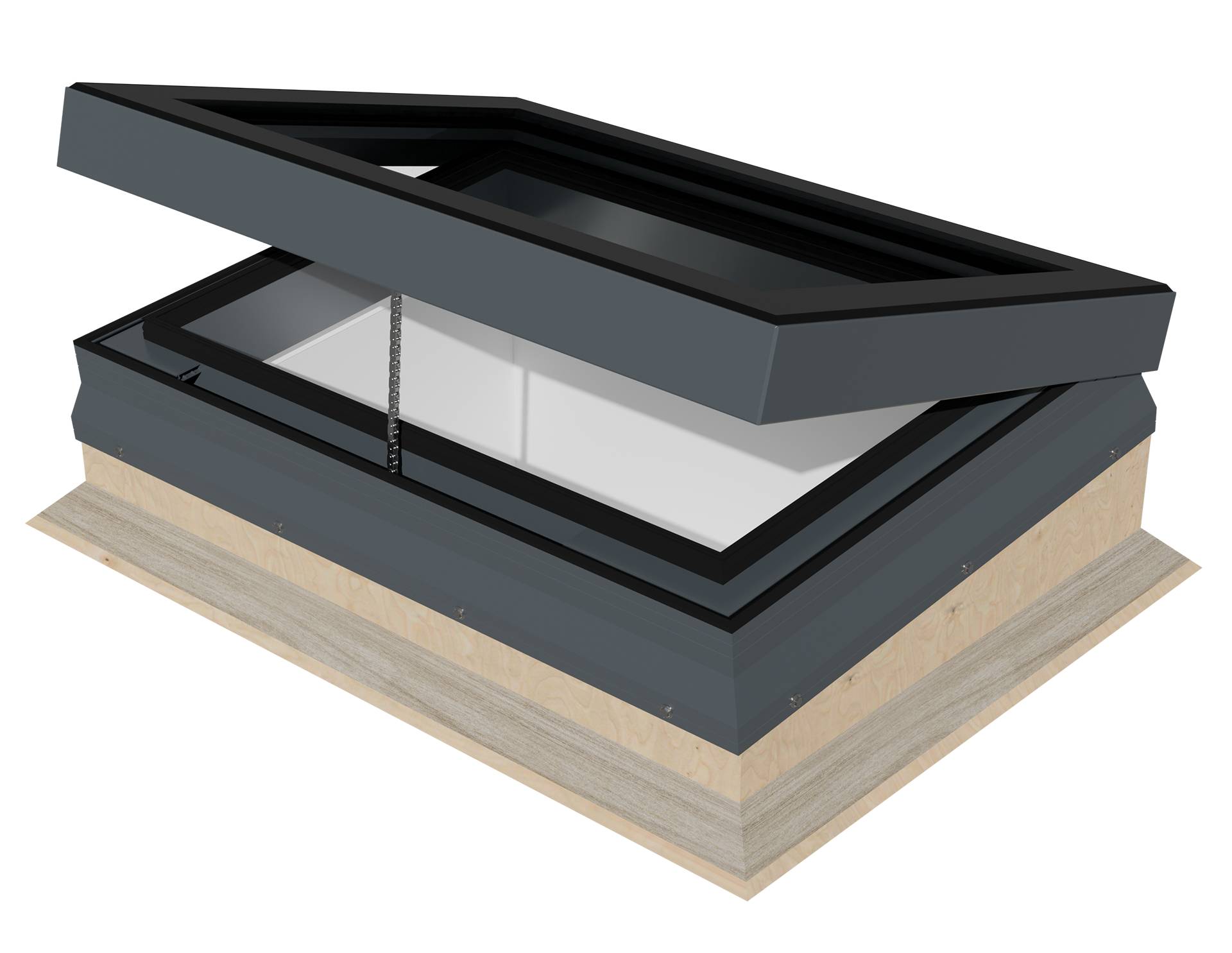

Sustainable timber builders kerb, fully Part L and Part B compliant, manufactured exclusively for the Whitesales em.glaze flat glass Premium and Economy rooflights.
Application
Out of the box, proprietary timber unit. Simply screw into place above roof void.
Description
The new proprietary Whitesales Timber Sloping Upstand designed exclusively for the em.glaze flat glass rooflight is constructed with the tradesperson in mind.
With the new Part L Thermal Building Regulations requiring all upstands built on-site, either new build or refurbishment projects, meet a u-value of 0.35W/(m2·K).
The new proprietary timber sloping upstand ensures that every Whitesales em.glaze fixed or concealed motor aluminium roof light is fully compliant.
Constructed from thick CLS timber sandwiched together with Rockwool insulation and marine grade plywood with a fire rated plasterboard lining.
It is supplied pre-assembled making it quick and easy to install, whilst guaranteed to be structurally and dimensionally sound to suit all em.glaze flat glass rooflight products.
Features and benefits:
- Available in 18 standard stock sizes in 3-5 days lead time.
- 150 mm height sloping 5 degree pitch to ensure the right height and pitch for water to run off.
- Supplied pre-assembled to reduce installation time on site.
- Can be supplied ahead of roof light to support onsite timescales.
- Manufactured from C16 graded CLS timber, responsibly sourced from an FSC Certified supplier.
- Part L and Part B compliant.
General information
Color | Other |
Finish | Wood grain |
Material | Timber |
Shape | Square Rectangle |
Length | 500 mm 600 mm 700 mm 800 mm 900 mm |
Width | 500 mm 600 mm 700 mm 800 mm 900 mm |
Height | 150 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/460 Rooflights L10/45 Rooflights |
Specification data - Wood frames
Species | Timber. |
Size | 600 x 600 mm.Manufacturer guidanceTo suit external kerb size. |
Factory finish | Wood grain. |
Wind pressure/ suction: | Maximum Wind Pressure (to lid): 0.90kN/m^2; Maximum Wind Suction (to lid): -1.62kN/m^2; Maximum Lateral Wind Suction (to kerb): -2.52kN/m^2. |
Snow load | 0.70kN/m^2. |
Load | 0.60kN/m^2. Manufacturer guidanceAccess load. |
Weight | 19.8 kg. |
Opening size | 500 x 500 mm. Manufacturer guidanceTo Suit roof opening size. |
Whole window U-value | 1.2 W/m2K. |
Form | Square. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Canada |
Country of product manufacture | Europe |
Recyclability | Yes |
Literature

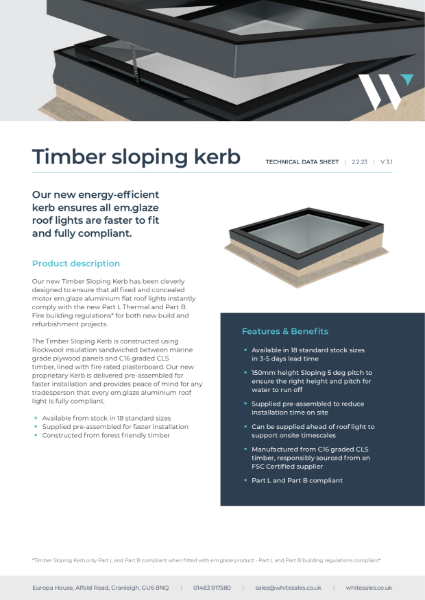

Timber Sloping Kerb Datasheet
