Timber Click-on Battens
Verified by manufacturer 3 months ago

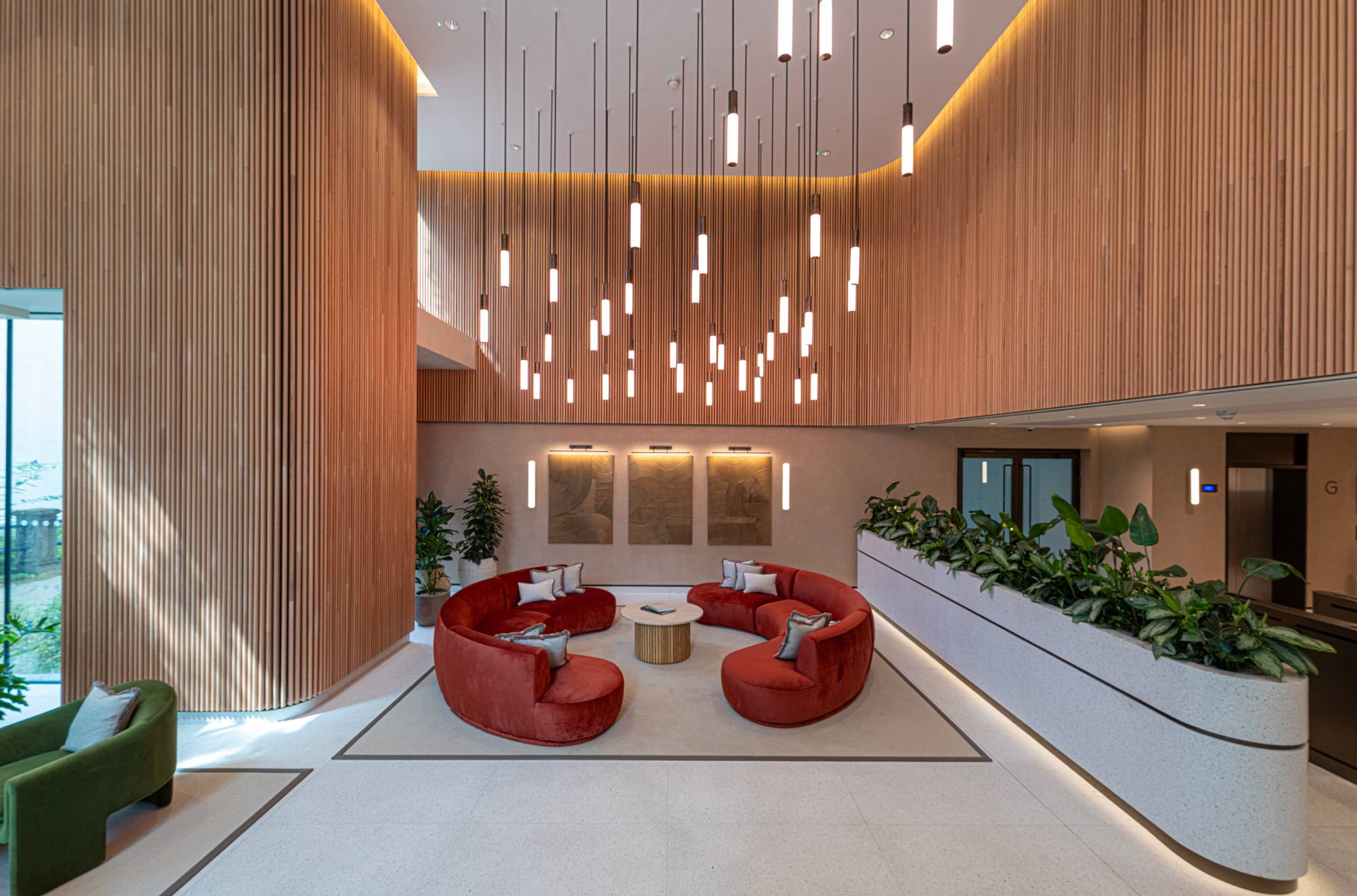

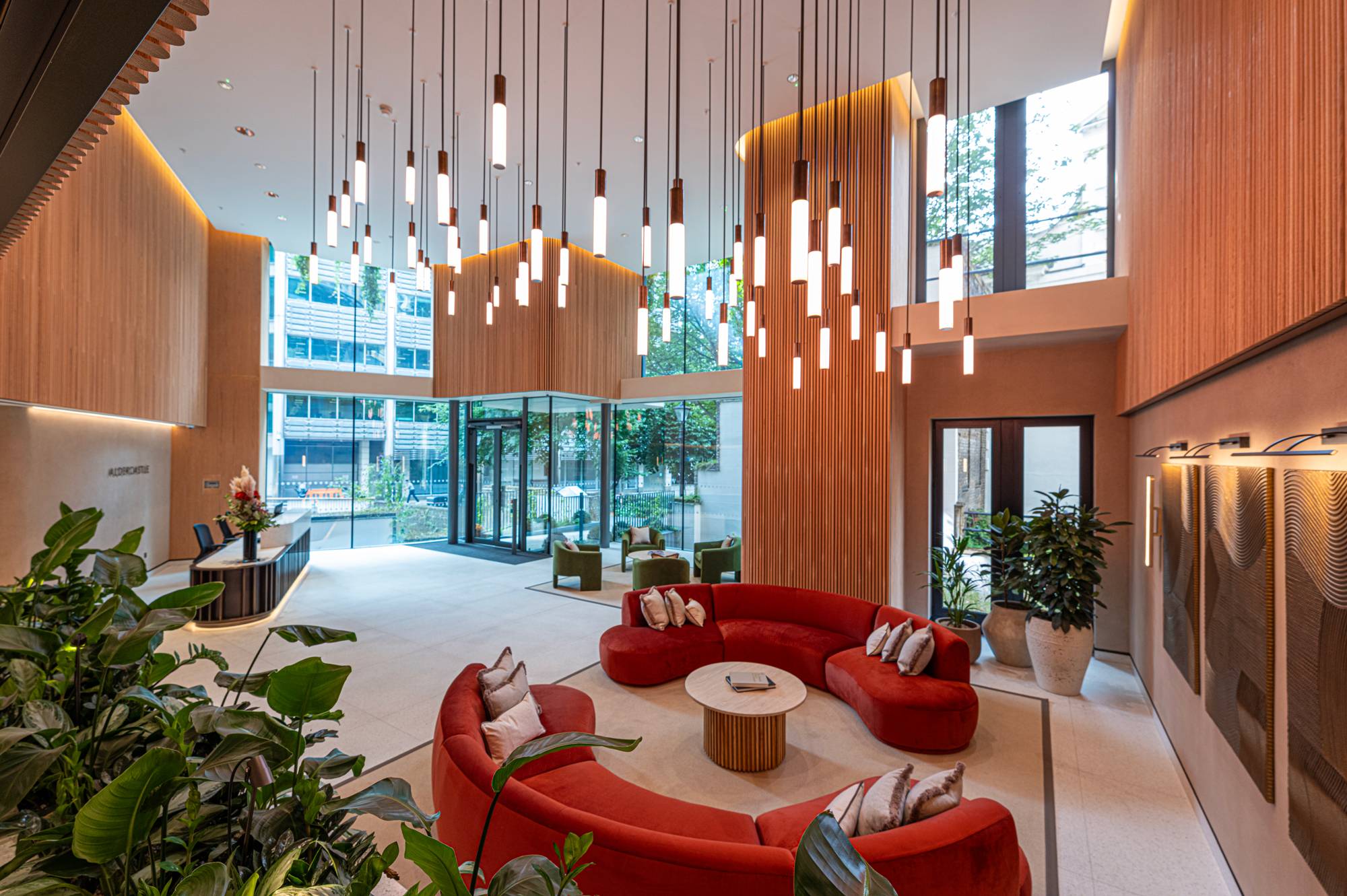

Acoustic battens for feature walls and ceilings.
Application
External applications:
- Soffits.
- Walls (horizontal and vertical installation).
- Facades.
- Screens.
Internal applications:
- Suspended ceilings.
- Direct fixed ceilings.
- Walls (curved or straight, horizontal and vertical install).
Description
Acoustic battens for feature walls and ceilings. Pre-coated timber profiles fixed to mounting tracks with a clip connection, allowing for fast click-on installation. Available in a range of profiles and finishes.
General information
Color | Brown |
Finish | Varnished |
Material | Timber Aluminium |
Shape | Rectangle |
Width | 22 mm 60 mm |
Height | 19 mm 60 mm |
Uniclass | |
CAWS | K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Specification data - Acoustic panel lining systems
Classification data | |
Battens | Aluminium mounting tracks - 45 x 25 mm Std Track. Aluminium mounting tracks - 25 x 25 mm Slim Line. Aluminium mounting tracks - 45 x 32 mm Ceiling Track. |
Acoustic insulation | PET acoustic panel. |
Panelling | |
Type | Timber battens, Spotted gum. Guidance for specification option: Interior/exterior. Durability class – life expectancy: To AS 5604:2005, Class 1 (greater than 40 years). Timber battens, Australian ash. Guidance for specification option: Interior only. Durability class – life expectancy: To AS 5604:2005, Class 3 (7 to 15 years). Timber battens, American oak. Guidance for specification option: Interior only. Durability class – life expectancy: To AS 5604:2005, Class 3 (7 to 15 years). |
Surface finish | Mirotone - Waterbased Lacquer. Guidance for specification option: Internal. Rubio - Waterbased Woodcream. Guidance for specification option: Internal. Intergrain Enviropro - Waterbased Lacquer. Guidance for specification option: Exterior. Cutek Extreme - Stabiliser. Guidance for specification option: Exterior. |
Fasteners | Clip/spring connection system. Guidance for specification option: Zamak EZDA 3 (Zinc Alloy 3) injection cast with ALZIN ESP-SF Clear coating. |
System accessories | None. Suspended Ceiling Connector Clip and Joiner. |
Profiles | Block 30 x 19 mm. Block 40 x 19 mm. Block 60 x 19 mm. Blcok 30 x 30 mm. Block 22 x 40 mm. Block 40 x 40 mm. Block 30 x 60 mm. Dome 30 x 19 mm. Dome 30 x 30 mm. Dome 40 x 30 mm. Dome 60 x 30 mm. Dome 22 x 40 mm. Dome 30 x 40 mm. Dome 30 x 60 mm. Flute 30 x 19 mm. Flute 40 x 19 mm. Flute 60 x 19 mm. Flute 30 x 30 mm. |
FireRating | Exterior: To AS 1530.1:1994, Combustible; Interior: AS/NZS 3837:1998, Group 3. |
Sustainability data
Contains Red List materials | No |
Material | Timber Aluminium |
Literature
Literature type
Sculptform Product Technical Datasheet - Click-on Battens for Walls and Ceilings
Sculptform Click-on Battens Installation Manual
Sculptform Timber Interiors Cleaning and Maintenance Guide
Sculptform Spotted Gum Datasheet
Sculptform American Oak Datasheet
Case studies
Aldercastle
London Luton Airport’s Redevelopment
Co-op Live, Manchester
