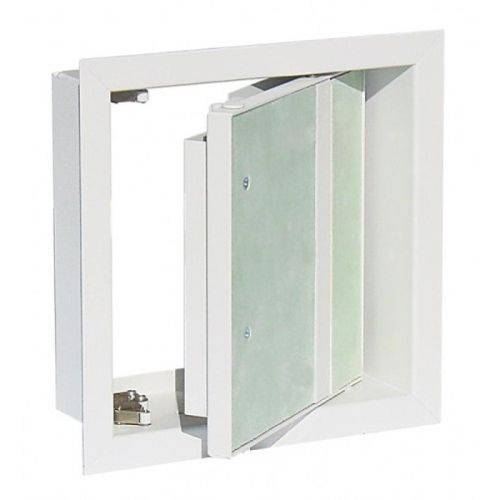

Tile Access Panel | Touch Catch Lift-Out Door - Access Panels

Verified by manufacturer today

Trade Access Panels

Access panel designed to integrate with existing tiling.

Jump to:
+44 (0)1922 500 145 Website

Application

Tile Door Access Panels are designed for integrating with tiled walls for a ceramic or marble finish in areas where regular maintenance to services is required.

Please Note: The size ordered is the Tile size. The structural opening (hole which needs to be cut into the wall) needs to be 7 mm larger than the panel size.

Description

The range of Tile Door Access Panels are simple to install and suitable for walls only allowing easy access where regular maintenance to services is required.

The panels are manufactured with an beaded frame detail for tiling over.

The panel is manufactured with a moisture board faced door for application of ceramic tiles. The panels door leaf is locked in position via a Mini Touch Catch as standard, other lock options are available upon request.

This product has a lift out door and is hung on the horizontal, hinged version available upon request.

Features and benefits:

  • Includes a moisture board infill and concealed beaded perforated frame to take a ceramic tile.
  • Manufactured in the UK.
  • Ten-year guarantee.
  • Made-to-measure.
  • Manufactured to suit current tile and grout thickness.
  • Can be specified with specific fire performance.

General information

Finish

Guidance for specification option:

Insert RAL colour requirement.

Material

Steel

Guidance for specification option:

Zintec.

Other

Guidance for specification option:

Moisture Board for attaching Ceramic Tiles

Shape

Square

Length

Bespoke

Width

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/430 Access panels

K40/280 Access units

SKU Code

TAP14/000/TD/BF/TC

Product range

Access Panels, Loft Hatches & Riser Doors

Specification data - Access panels

Classification data

Position

Wall mounted.
Ceiling mounted.

Size

-

Manufacturer guidance

100 x 100 mm-1200 x 1200 mm.

Frame

20 mm.

Panel

-

Material

Zintec steel.

Guidance for specification option:

Frame/ door tray: 1 mm-thick.

Moisture board.

Guidance for specification option:

Infill: 12 mm-thick.

Integral finish

-

Manufacturer guidance

Insert RAL colour requirement.

Latch or lock type

Touch catch.
Budget lock with hinge.
Lift-out door.

FireRating

Required.

Guidance for specification option:

Consult manufacturer and insert requirements.

Not required.

Size

-

Manufacturer guidance

Bespoke sizes. Insert requirement between minimum and maximum dimensions as per General Properties.

Thickness

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Grouting

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Adhesive thickness

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Hinges

To the long side.
To the short side.

Sustainability data

Country of product manufacture

United Kingdom

Material

Steel

Guidance for specification option:

Zintec.

Other

Guidance for specification option:

Moisture Board for attaching Ceramic Tiles

Literature

Trade Access Panels Brochure

Trade Access Panels Brochure

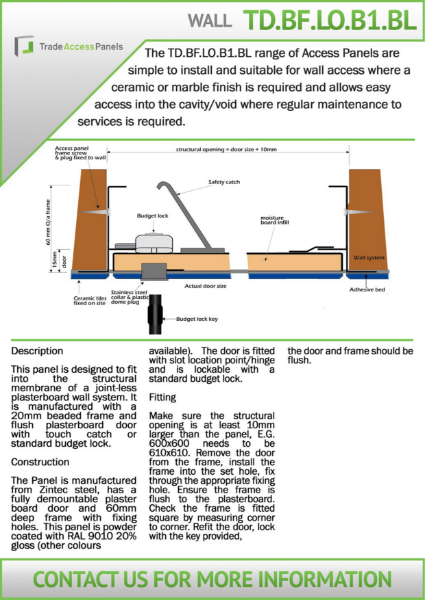

Tile Door Access Panel
