Technics 5 - Underlay
Verified by manufacturer 5 months ago
EPD
Certificate type
Underlay suitable for the double-stick and stretch-fit installation of carpets, and floating wood and laminate installations.
Application
Suitable for the double-stick and stretch-fit installation of carpets, and floating wood and laminate installations.
Description
Underlay suitable for the double-stick and stretch-fit installation of carpets, and floating wood and laminate installations.
Features and benefits:
- Sponge rubber (flat).
- Green Label Plus certified.
- Suitable for underfloor heating and flame retardant applications.
- End use classification (to BS 5808): HC/U, heavy contract use.
- Contains not less than 3% post-consumer recycled material. MR 4.0 points available.
- At the end of the underlay's useful life it can be 100% recycled. MR 2.0 points available.
- Regional materials: Where used within 500 miles of production facility, MR 5.0 points available.
- Meets or exceeds the industry standard for indoor air quality as established by the CRI Green Label Programme. IEQ 4.3 points available.
- Antimicrobial and mildew resistance: Pass.
- Russian GOST FR Test Classification: KM3.
- US Critical radiant flux: NFPA class I.
- US Methenamine Pill Test: Pass.
- US Smoke Chamber Test: Pass.
General information
Color | Black |
Finish | Other |
Material | Rubber |
Shape | Other |
Length | 1.37 mm |
Width | 0.27 mm |
Height | 0.27 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | M50/170 Carpeting M50/25 Carpeting |
Product range |
Specification data - Cellular rubber underlays
Use class | HC/U. |
Thickness (minimum) | 5 mm.Manufacturer guidanceNominal. |
Recycled content | 0% post-consumer. |
Area | 15.07 m². Manufacturer guidanceRoll area. |
Roll size | 1.37 x 11 m. |
Roll weight | 40.9 kg. Manufacturer guidanceNominal. |
Odour | No objectionable odour. |
Colour | Black. |
Backing | Printed Textron backing. |
Impact sound reduction | 28 dB. Manufacturer guidanceDelta Lw. |
VOC emissions | Complies A+. Guidance for specification option: Accreditation 0754 to US CRI Green Label Plus programme. Manufacturer guidanceFrench VOC emission regulations. |
Thermal resistance | 0.56 togs. |
Thermal resistance (R-value) | 0.0056 m²K/W. |
Compression | 96 J/m² work of compression (minimum 50 J/m²). Manufacturer guidanceTechnical characteristics. |
Breaking strength: | 282/ 162 N. Manufacturer guidanceBreaking strength, minimum 40 N (length/ width). |
Extension | 0.8/ 0.5%. Manufacturer guidanceExtension under force, maximum 10% at 40 N (length/ width). |
Resistance | Pass. Manufacturer guidanceResistance to cracking (not greater than 50 mm). |
Performance | 5.6 PSI. Guidance for specification option: 25% deflection. 20.9 PSI. Guidance for specification option: 50% deflection. 81.6 PSI. Guidance for specification option: 65% deflection. Manufacturer guidanceTest performance to US standards. CFD (Compression Force Deflection). |
Performance class | Extra heavy commercial class III. Manufacturer guidanceRecommended use. |
Flammability | Low radius of ignition. Manufacturer guidanceHot metal nut test. |
Reaction to fire classification | Bfl-s1. Manufacturer guidanceTested in conjunction with Axminster 80:20 carpet. |
Nominal weight | 2712 g/m². Manufacturer guidanceNominal square weight. |
Nominal density | 542.4 kg/m³. |
Technical characteristics, other | 3.5 % after dynamic loading. Manufacturer guidanceLoss in thickness (maximum 15%). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom Guidance for specification option: Haslingden, BB4 4LS, UK. |
Material | Rubber |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 48.67 kg CO₂ eq/unit |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 3 % Manufacturer guidance
|
Third party certifications
Third party certifications

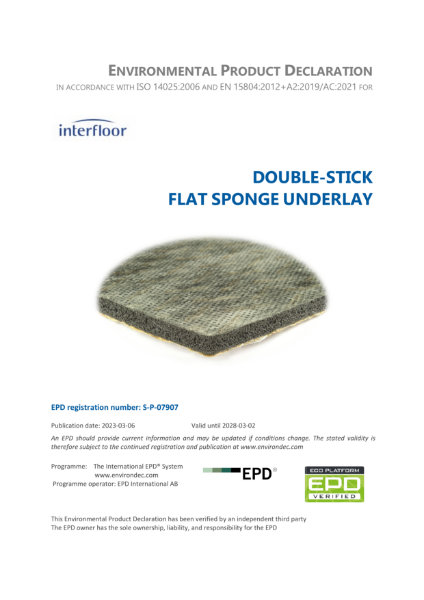

EPD
Double Stick Flat Sponge Underlay
Literature

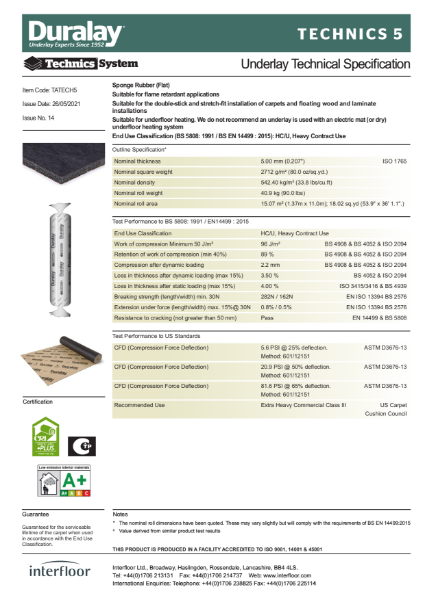

Technics 5 Specification
