New Supreme
Verified by manufacturer 5 months ago
EPD
Certificate type
Underlay suitable for the stretch-fit installation of carpets.
Application
Suitable for the stretch-fit installation of carpets.
Description
Underlay suitable for the stretch-fit installation of carpets.
Features and benefits:
- Sponge rubber.
- Green Label Plus certified.
- End use classification (to BS 5808): L/U, luxury use.
- Contains not less than 65% post-consumer recycled material. MR 4.0 points available.
- At the end of the underlay's useful life it can be 100% recycled. MR 2.0 points available.
- Regional materials: Where used within 500 miles of production facility, MR 5.0 points available.
- Meets or exceeds the industry standard for indoor air quality as established by the CRI Green Label Programme. IEQ 4.3 points available.
- Antimicrobial and mildew resistance: Pass.
- Russian GOST FR Test Classification: KM3.
- US Methenamine Pill Test: Pass.
General information
Color | Green |
Finish | Other |
Material | Rubber |
Shape | Other |
Length | 1.37 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | M50/170 Carpeting M50/25 Carpeting |
Product range |
Specification data - Cellular rubber underlays
Use class | L/U. |
Thickness (minimum) | 8.75 mm.Manufacturer guidanceNominal. |
Recycled content | 65%.Guidance for specification option: Post-consumer. |
Nominal weight | 3424 g/m². Manufacturer guidanceNominal square weight. |
Area | 10.96 m². Manufacturer guidanceRoll area. |
Roll size | 1.33 x 8.24 m. |
Roll weight | 37.5 kg. Manufacturer guidanceNominal roll weight. |
Nominal density | 391 kg/m³. |
Odour | No objectionable odour. |
Colour | Green. |
Backing | Printed Textron backing. |
Impact sound reduction | 39 dB. Manufacturer guidanceDelta Lw. |
VOC emissions | Meets low VOC emission criteria, certified GLP051 Cat CC10 rubber. Manufacturer guidanceUS Carpet and Rug Institute. |
Thermal resistance | 1.00 togs. |
Thermal resistance (R-value) | 0.08. |
Compression | 143 J/m². Guidance for specification option: Work of compression (minimum 50 J/m²). 88%. Guidance for specification option: Retention of work of compression (minimum 40%). |
Technical characteristics, other | 3.7%. Guidance for specification option: After dynamic loading. 3.3%. Guidance for specification option: After static loading. Manufacturer guidanceLoss in thickness (maximum 15%). |
Performance | 2.2 PSI. Guidance for specification option: 25% deflection. 6.7 PSI. Guidance for specification option: 50% deflection. 15.9 PSI. Guidance for specification option: 65% deflection. Manufacturer guidanceTest Performance to US Standards. CFD (Compression Force Deflection). |
Performance class | Moderate traffic class I. Manufacturer guidanceRecommended use. |
Flammability | Low radius of ignition. Manufacturer guidanceHot metal nut test. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom Guidance for specification option: Haslingden, BB4 4LS, UK. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 44.49 kg CO₂ eq/unit |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 65 % |
Third party certifications
Third party certifications
EPD
Flat sponge underlay 8.25-11.4mm
Literature

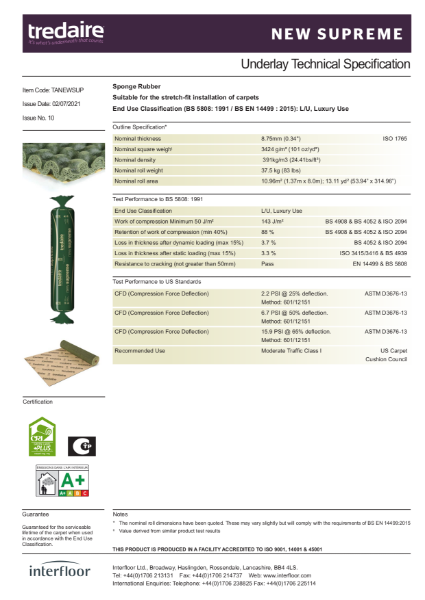

New Supreme Specification
