TapcoSlate - Classic Ridge End Cap - Pitched roof ridge end cap
Verified by manufacturer 5 months ago

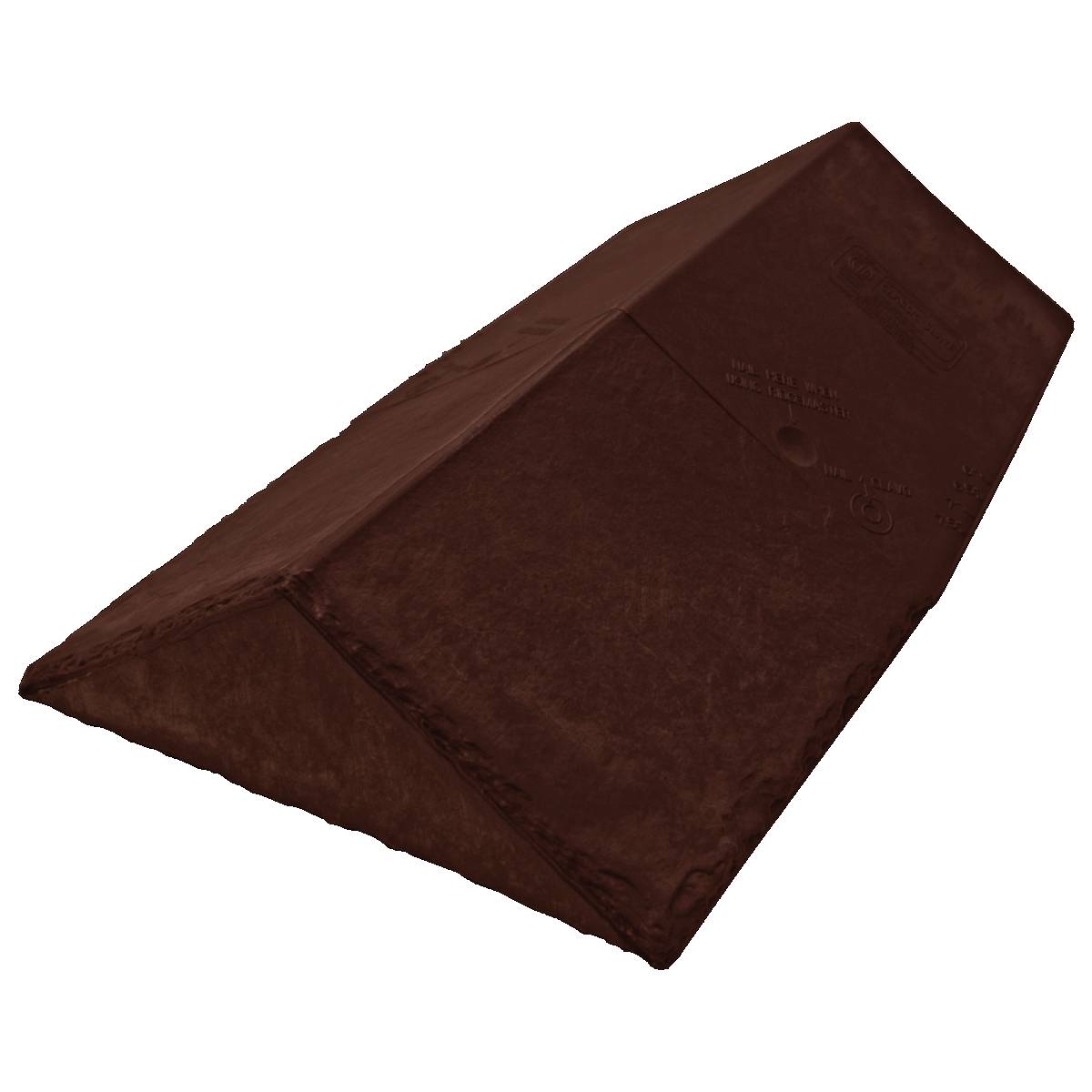

Tapco Slate Classic Ridge End Cap - 804 Pewter Grey - 25-29º Pitch
Tapco Slate Classic Ridge End Cap - 804 Pewter Grey - 25-29º Pitch
A dry-fix ridge 90° end cap.
Application
Suitable for Tapco Slate Classic and Tapco Slate Classic Ridge and Hip Caps.
Description
A dry-fix ridge 90° end cap to weather seal and finish the roof line at the end of the ridge. Manufactured in the same material as our Tapco Slate Classic product to match the roof slate.
Features and benefits:
- Lightweight – as low as 12 kg per square metre.
- Easy to install with pre-marked nailing guides and spacers.
- Easily cut with a fine-toothed saw or sharp utility blade.
- Mechanically fixed.
- Choice of all six of our stocked colours (for immediate availability).
- Choice of three pitches: 25 to 29°, 30 to 34° and 35 to 40°.
- Fully tested to BBA, ETA and CE standards, including fire rating, water absorption, wind, driven snow and rain.
General information
Color | Grey Red Brown Black Other |
Finish | Textured |
Material | Limestone Guidance for specification option: Virgin limestone. Polypropylene |
Shape | Rectangle |
Length | 445 mm |
Width | Bespoke |
Height | Bespoke |
Warranty description | 40 year |
Uniclass | |
CAWS | H62/105 Roof slating H62/3 Roof slating H67/375 Ridge caps H67/60 Ridges |
Specification data - Reconstituted slate coursing fittings
Colour | Pewter grey. |
PitchAngle | 25-29º. |
Dimensions | 70 x 445 x 290 mm. |
FireRating | To BS476 Part 3, Boarded Roof SAA, Battened Roof SAC. |
Code_Performance | Fully tested to BBA, ETA and CE standards. |
Life expectancy | 80+ years. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
TapcoSlate Classic Features & Benefits
TapcoSlate Classic ETA Certificate
TapcoSlate Classic BBA Certificate
TapcoSlate Classic Accessories
TapcoSlate Classic Care & Maintenance
TapcoSlate Classic Fixing Guide

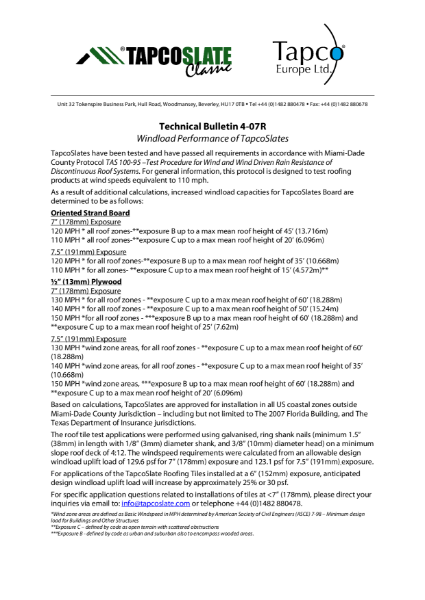

TapcoSlate Classic Wind Load Performance

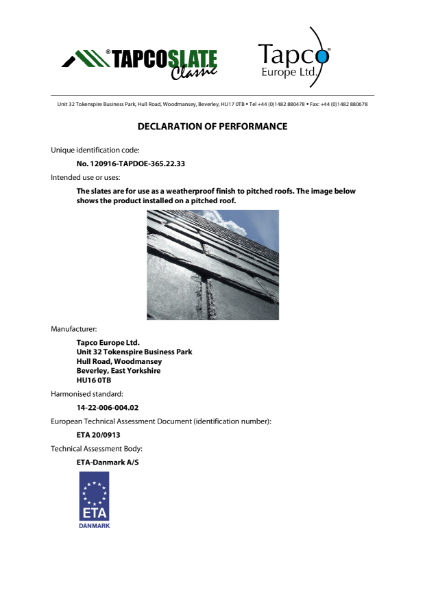

TapcoSlate Declaration of Performance (DoP)
