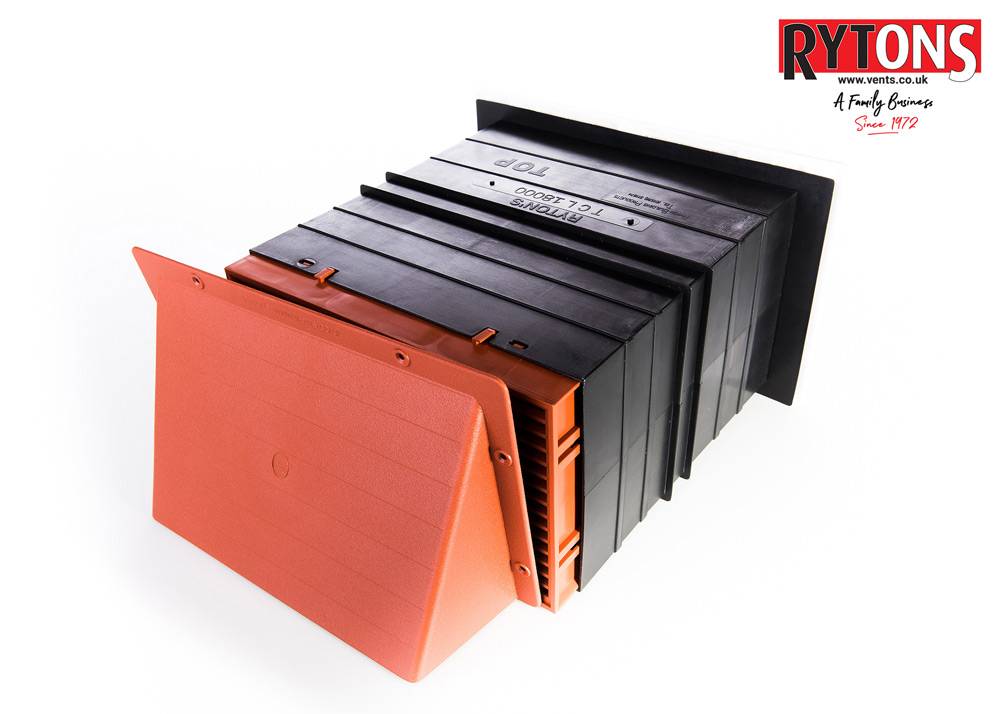

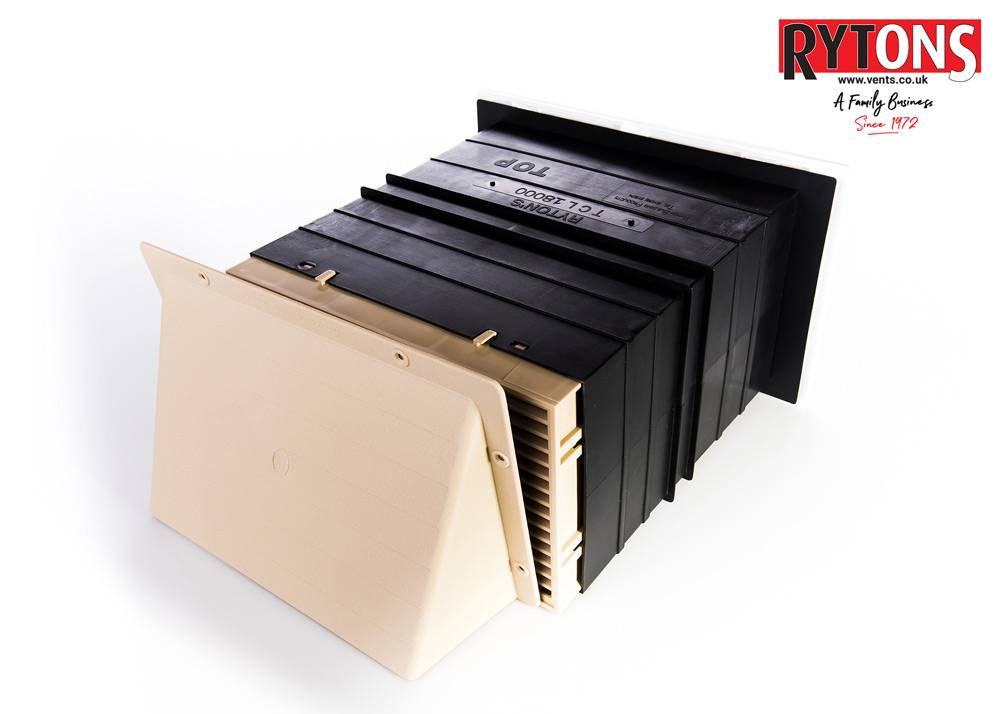

TALHMCWL - Rytons 9 x 6 Cowled Acoustic AirLiner® Set with Hit & Miss Ventilator

Verified by manufacturer 24 days ago

TALHMBCWL

Rytons Building Products Ltd Variant:

Plastic telescopic acoustic cavity liner set with external cowl.

Jump to:
+44 (0)1536 511874 Website

Application

  • Background room ventilation, for use in noisy areas to reduce the amount of noise entering the building for a more peaceful environment.
  • As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.

Description

Plastic, telescopic acoustic cavity liner set with external cowl, compliant with BS 5250.


Features and benefits:

  • External cowl protects against excessive weather conditions and alleviates air blasts through the cavity.
  • Telescopic cavity liner contains a system of internal baffles to reduce light and draughts.
  • Reduces sound by 42 dB with internal grille fully open or closed.
  • Internal hit and miss grille manually adjusted with a sliding action allowing ventilation to be controlled as required.
  • External water baffles prevent transfer of water across the cavity.
  • Cowl, air brick and hit and miss grille UV stabilized to slow down the effects of sunlight.
  • BRE verified equivalent area.


Components:

  • Cowl.
  • Multifix® Air Brick.
  • Acoustic AirLiner®.
  • Hit & Miss Grille.

General information

Color

Cream

Orange

White

Material

Plastic

Guidance for specification option:

UV stabilized polypropylene.

Size

255 x 154 x 74 mm

Guidance for specification option:

Cowl: (l x h x d).

220 x 140 mm

Guidance for specification option:

Acoustic AirLiner® with Multifix® Air Brick: (w x h). Extends from 250–404 mm L.

271 x 171 mm

Guidance for specification option:

Hit & Miss Grille:  (l x h).

Uniclass

Pr_30_59_96_92 Ventilation ductsPrimary

CAWS

F30/17 Ventilation ducts in external walling

F30/171 Ventilation ducts in external walling

U90/340 Through wall ventilator ducts

U90/340 Through wall ventilator ducts

Product range

Rytons Ventilation Sets with Hit and Miss Ventilators

Specification data - Ventilation ducts

Material

Plastic.

Guidance for specification option:

UV stabilized polypropylene.


Equivalent area

9800 mm².

Air brick

Buff/ Sand.
