T77 Elite SR1 Aluminium Security Shutter

Name: T77 Elite SR1 Aluminium Security Shutter
Brand: Roché Systems Ltd
SKU: prbxcfnWm8WoDrkkLaKaF8

Verified by manufacturer 1 month ago

Roché Systems Ltd

Third party certifications:

QA Certificate
Certificate type

LPCB SR1 insurance approved insulated aluminium security roller shutter with 77 mm high slats.

Jump to:

BOS

03330347967 Website

Application

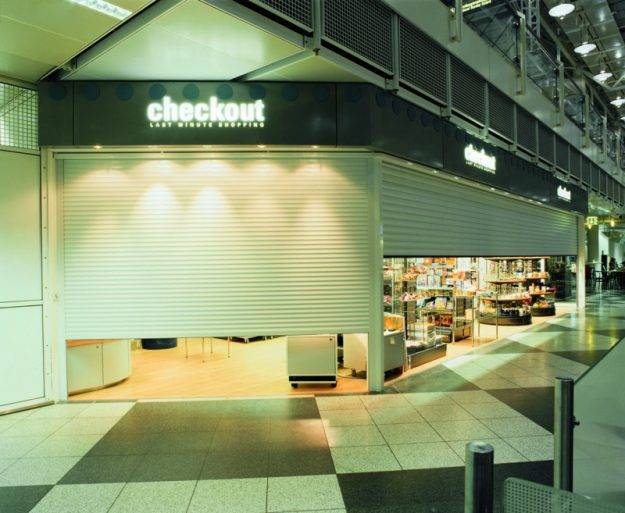

Suitable for commercial sites and shopfronts that require high security.

Description

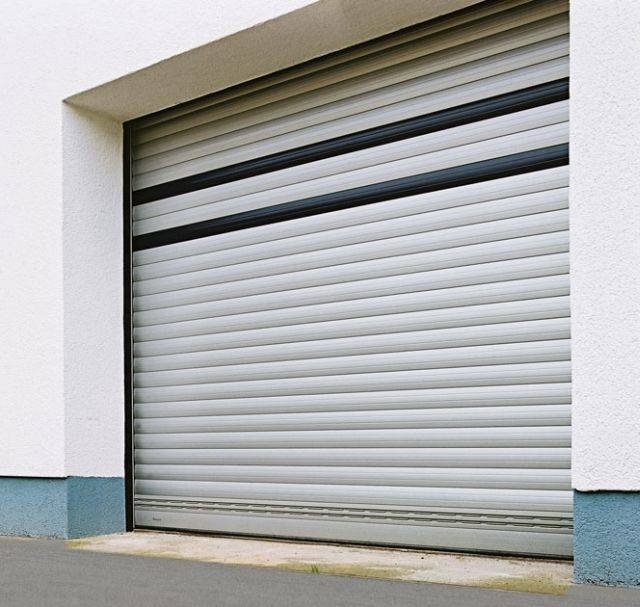

Extruded aluminium security roller shutters with 77 mm high slats and designed to suit specific site requirements.

Features and benefits:

Tested by the Loss Prevention Certification Board (LPCB) to LPS 1175 SR2 and awarded insurance approved 'Secured by Design' status.
Mounted internally, externally or reveal fixed.
Span up to 5 m in width and an area up to 20 m².
Available with solid and punched profiles.
Available in a wide range of colours including wood laminate finishes to match window and door frames.

General information

Color	White Brown
Finish	Galvanized Powder-coated Plastisol
Material	Aluminium
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Pr_30_59_84_73 Roller shuttersPrimary
CAWS	L20/60 Doors L20/610 Roller shutters/ curtains

Product range	Insulated Roller Shutters

Specification data - Roller shutters

Opening sizes	5000 x 4000 mm. Guidance for specification option: (width x height.) Available up to 20 m². Manufacturer guidance Enclosure size (internal face fix): Dependent on height. <1750 mm: 250 mm. 1750–2700 mm: 300 mm. 2700–3640 mm: 360 mm.
Arrangement	Vertical, external face fix. Vertical, internal face fix.
Shutter curtain.	-
Lath material	Aluminium. Guidance for specification option: 20 mm thick aluminium double skinned polyester powder-coated with polyurethane foam insulating core, 77 mm in height.
Profile	77 mm.
Finish and colour	Powder coated - Brown. Powder coated - White. Powder coated - BS. Guidance for specification option: Insert RAL/ BS code or standard color (white, brown, beige, blue, red, moss green, sage green, fir green, black, light grey, anthracite grey, silver, oak, rosewood or teak). Powder coated - RAL. Laminated - wood effect. Manufacturer guidance Can be powder coated to any RAL/ BS colour or laminate wood effect (surcharge applies).
Frame and guides	-
Material	Aluminium. Guidance for specification option: Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: 150 mm deep extruded aluminium. Bottom slat: Extruded aluminium with weather seal.
Finish	Powder coated.
Colour	Brown. Guidance for specification option: Standard colour. White. Guidance for specification option: Standard colour.
Operation	-
Mode	Automatic. Guidance for specification option: Somfy Electric Single Phase (Tubular Motor) with safety brake.
Control	- Manufacturer guidance Somfy tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available. See product literature or consult manufacturer for more information; insert requirements.
Accessories	None. Crank handle. Manual override facility.

Weight	5.5 k.g./m².
Guide channel depth	150 mm. Guidance for specification option: Guide channels must be fitted 30 mm from the opening, giving 180 mm from opening edge to back of guide.
