T55 Aluminium Security Shutter
Verified by manufacturer 13 days ago
Double skinned insulated aluminium security roller shutter with 54 mm high slats.
Application
For use in high security domestic and commercial applications.
Description
Double skinned insulated aluminium security roller shutter with 54 mm high slats.
Features and benefits:
- The shutter can span up to 4 m in width and an area up to 9 m².
- Numerous control option variants such as group, remote control or mobile phone activation.
General information
Color | White Brown |
Finish | Laminated Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product range |
Specification data - Roller shutters
Opening sizes | 4000 x 2200 mm.Manufacturer guidanceAvailable up to 3800 mm height depending on width. |
Arrangement | Vertical, external face fix.Vertical, internal face fix.Vertical, reveal fix. |
Shutter curtain. | |
Lath material | Aluminium.Guidance for specification option: 13.5 mm thick aluminium double skinned polyester powder-coated with polyurethane foam insulating core, 54 mm in height. Bottom slat: Extruded aluminium with brush and rubber weather seals. |
Finish and colour | Powder coated - Brown.Guidance for specification option: Standard. Powder coated - White.Guidance for specification option: Standard. Powder coated - BS.Guidance for specification option: Insert colour code. Powder coated - RAL.Guidance for specification option: Insert RAL colour code. Laminated wood effect.Manufacturer guidanceOption to powder coat any RAL/ BS colour or laminate wood effect (surcharge applies). Insert requirement; consult with manufacturer for more information. |
Frame and guides | |
Material | Aluminium.Guidance for specification option: Enclosure: Roll formed aluminium with pressure-moulded aluminium alloy end caps. Guide channels: 68 mm deep extruded aluminium. |
Finish | Powder coated. |
Colour | Brown.Guidance for specification option: Standard colour. White.Guidance for specification option: Standard colour. |
Operation | |
Mode | Electric, NRG Economy tubular motor.Electric, Somfy tubular motor.Manual, cord belt.Guidance for specification option: Operation may prove problematic dependent on size. Manual, rod and crank.Guidance for specification option: Operation may prove problematic dependent on size. Manual, spring and lock.Guidance for specification option: Operation may prove problematic dependent on size. Manufacturer guidanceElectric shutters are supplied with a single phase tubular motor with internal rocker or external key switch as standard. Numerous control option variants such as group, remote or mobile phone activation are available. |
Accessories | Not required..Crank handle.Manual override facility. |
Enclosure type | Box. Guidance for specification option: Standard. Circular. |
Weight | 4.2 k.g./m². |
Guide channel depth | 66 mm. |
Size | 55 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 DWG | - | 1 |
 IFC | - | 1 |
 Revit | - | 1 |
Literature
Commercial Security Shutters
Domestic Security Shutters

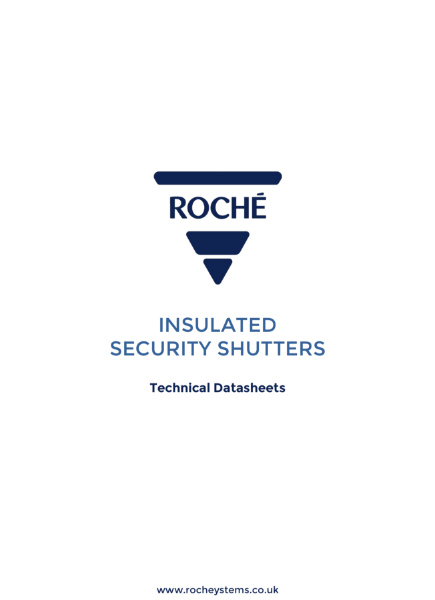

Insulated Security Shutters
Commercial Security Solutions

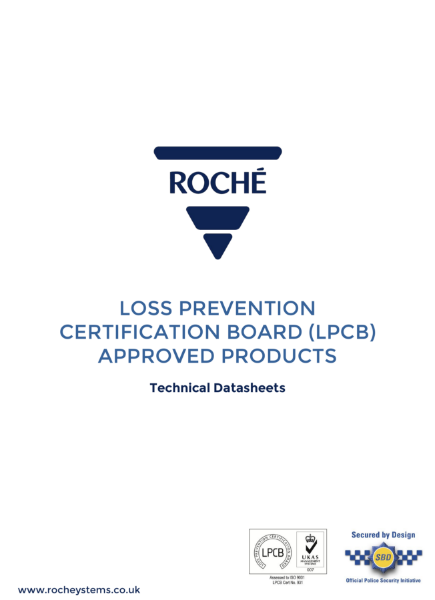

LPCB (Loss Prevention Certification Board) Shutters
Industrial Security Shutters

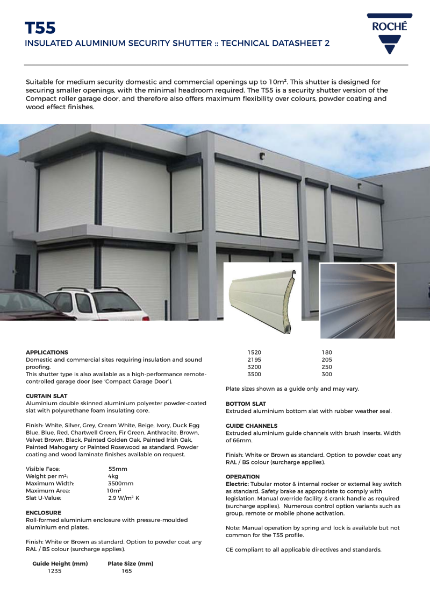

T55 Datasheet
