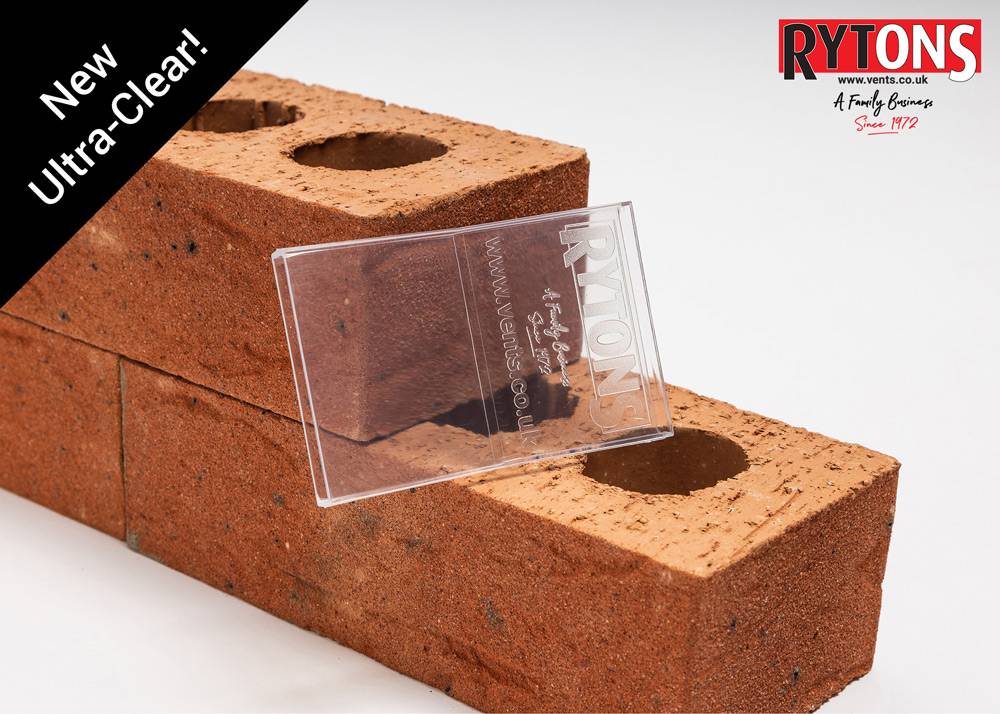

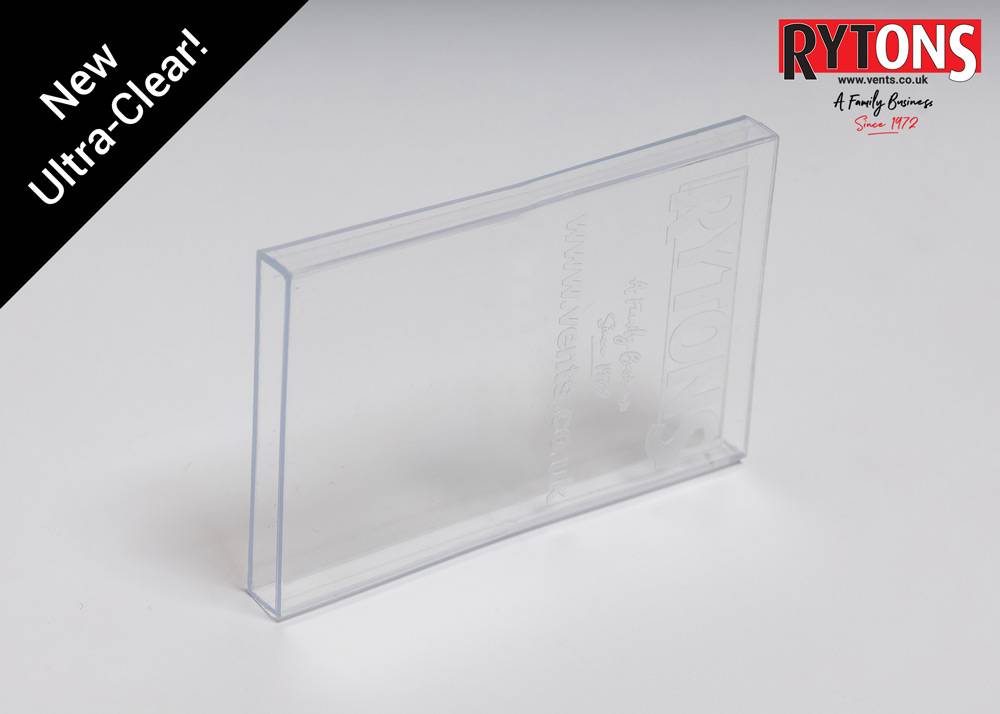

SVMIN - Rytons Slim Vent® Minor (Cavity Vent/Weep)
Verified by manufacturer 3 months ago
Plastic perpend cavity ventilator/weep.
Application
- Cavity ventilator/weep for use in timber frame and traditional build.
- As a plastic component this item is not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.
Description
Plastic perpend cavity ventilator/weep, compliant with BS 5250.
Features and benefits:
- Allows a 6 mm venting gap.
- Open faced to give maximum airflow and prevent clogging by paint and airborne debris.
- Huge airflow allows fitting at the maximum 1.2 m centres in Scotland and approximately every third brick to NHBC Standards, giving a cost efficient advantage.
- Unique internal water baffles and specially tapered surfaces prevent water transfer and make the vent an effective weep hole for drainage.
- Simple design allows quick and easy fitting with no special brickwork required.
- Clean lines maintain the aesthetic appearance of the building.
- Made in Britain.
General information
Color | Clear |
Material | Plastic Guidance for specification option: High impact polystyrene. |
Shape | Rectangle |
Length | 102 mm |
Width | 10 mm |
Height | 66 mm |
Uniclass | |
CAWS | F30/132 Perpend joint plastics weep holes F30/175 Cavity ventilators F30/8 Perpend joint plastics weep holes |
Product range |
Specification data - Perpend joint plastics weepholes
Colour | Clear. |
Accessories | DAMSLIMVENT. Guidance for specification option: Rytons DamRyt® Slim Vent® Protector – Render and flood protector. |
Free area | 356 mm² (3.56 cm²). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Plastic Guidance for specification option: High impact polystyrene. |
Recyclability | Recyclable |
