Surface Mounted Ceiling Hanger
Verified by manufacturer 5 months ago

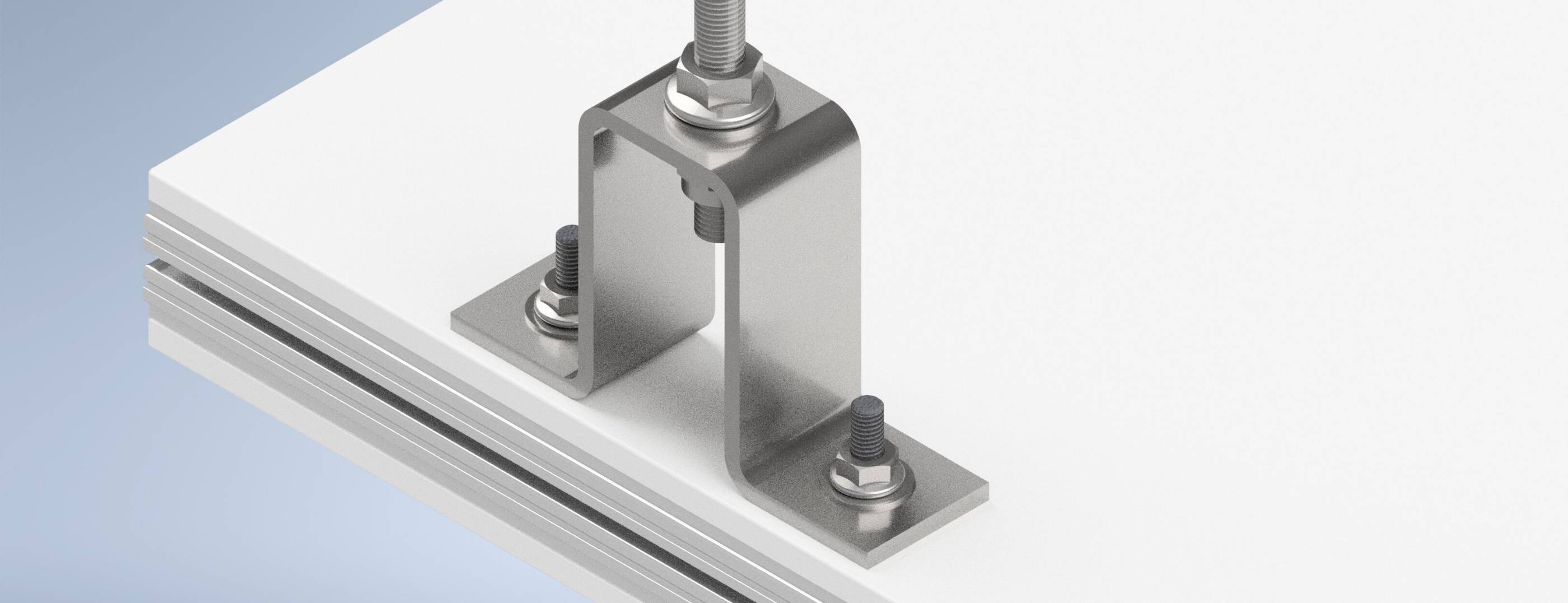

Suspension ceiling hanger.
Application
For use with ceilings in room corners and long-span perimeter panels where there are no joints for standard hangers.
Description
Our Surface Mounted Ceiling Hanger complements a standard ceiling hanger. It is a useful addition to the perimeter of the cleanrooms where space is limited, and our Concealed Hangers won’t fit. Can be used as an additional hanger for service heavy areas, increasing the load capacity.
General information
Finish | Galvanized |
Material | Steel |
Length | 135 mm |
Width | 85 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/115 Unit/ modular suspended ceiling system K45/12 Existing suspended ceiling system K45/120 Existing suspended ceiling system K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings |
Specification data - Metal suspended ceiling hangers
Components | Two M8 blind bolts; two M8 washers; UB403 Hanging Bracket. |
Fixing | Two blind bolts into box section. |
Loading | Pull out design load 4.1 kN/drop. |
Form | Ceiling hanger. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
Recyclability | 35 |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
UB403-Ceiling
