Concealed Suspension Hanger for Puracore Ceiling Panels
Verified by manufacturer 4 months ago
60 mm Concealed Suspension Ceiling Hanger
Application
For internal cleanroom use.
Description
Our concealed hanging system provides a clean surface within the cleanroom. It was designed to support all our Puracore Ceiling Panel systems and bear significant loads. It has been independently tested with results achieving high loads to support our Puracore ceiling panels.
- Comes with a C-bracket for easier high adjustment
General information
Finish | Mill |
Material | Aluminium |
Length | 60 mm |
Width | 18 mm |
Height | 24 mm |
Warranty description | Nine year |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/130 Relocatable partition system K40/250 Suspension system K45/315 Suspension system K45/35 Suspension system |
Specification data - Metal suspended ceiling hangers
Form | Hanging Plate Clevice; clip and pin; spacer extrusion. |
Material | Aluminium. |
Centres | 2000. Guidance for specification option: 2.5kN/m² Loading. 2500. Guidance for specification option: 1.5kN/m² Loading. 3000. Guidance for specification option: 0.9kN/m² Loading. Manufacturer guidanceAluminium Honeycomb Panel Core. |
Fixing | Back cover plate with SDST 3.2 x 19 mm fixings into panel |
Sealing | Applied to panel joint on site. |
Compatibility | Full Puracore range. |
Ancillaries | Spacer bar; back cover strip; hanging plate cover strip. |
Size | 12 mm. Guidance for specification option: Clip & pin. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

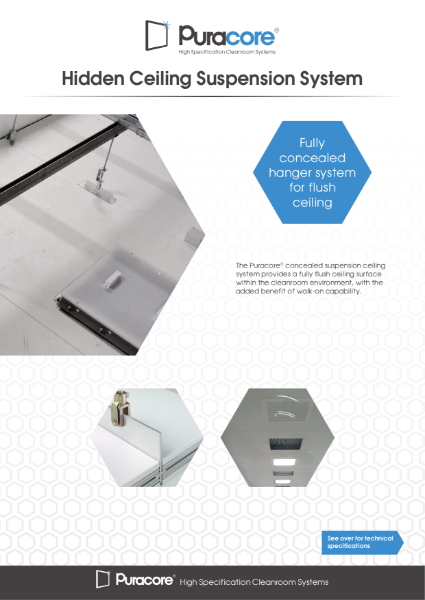

Hidden-Ceiling-Suspension-System
