SUITMATE® Swimsuit Dryer Water Extractor
Verified by manufacturer 10 days ago
Swimsuit/ swimming costume dryer.
Application
Wall mounted for commercial pools, leisure centres and sports facilities or private use
Description
Features and benefits:
- Removes approximately 95% of a swimsuit's water in eight seconds without using heat.
- Fast spin cycle at 3100 rpm removes water by centrifugal force, draining it safely into the waste water supply connected.
- Safe for all swimsuit materials.
- Manual self-start and self-stop.
- No exposed moving parts.
- Built-in ground fault circuit interrupter.
- Automatic shut off after eight seconds.
- Easy operation.
- Wall mounted via supplied wall mount bracket.
- Quiet operation.
- Customisable design.
- Full aftersales care and service.
- CE marked.
General information
Color | Silver Grey |
Finish | Satin |
Material | Stainless steel Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Length | 380 mm |
Width | 380 mm |
Height | 584 mm |
Warranty description | Two year Guidance for specification option: Parts only. After two years, manufacturer can provide parts at cost or offer a full, authorised repair service. |
Uniclass |
Specification data - Commercial tumble dryers
Standards | To BS EN ISO 10472-1 and BS EN ISO 10472-4. |
Heat source | No heat required. |
Material and finish | Stainless steel, durable ABS plastic.Guidance for specification option: 304 stainless steel. |
Dimensions | |
Width (maximum) | 380 mm. |
Depth (maximum) | 380 mm. |
Height (maximum) | 584 mm. |
Programmes | Manufacturer's standard. |
Electrical supply | 230 V, 50/ 60 Hz. |
Power rating | 750 W. |
Sound level (maximum) | 65 dB. |
Features | Automatic start. |
Accessories | Wall mount bracket. |
Power consumption | 0.0016 kWh (1.6Wh). |
Weight | 25 kg. |
Motor | 1/3 HP. |
Drying time | Eight seconds. |
Certification | CE marked, UKCA, UL, cUL. |
Safety features | Manual self-start and self-stop, no exposed moving parts, built-in residual current device (RCD). |
Installation | Direct electrical connection to a 230 V, 50/ 60 Hz, 13 Amp dedicated circuit. Water drainage to approved sanitary waste line or to floor drain. |
Mounting | Wall. Guidance for specification option: Via supplied wall mount bracket. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Recyclability | Recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

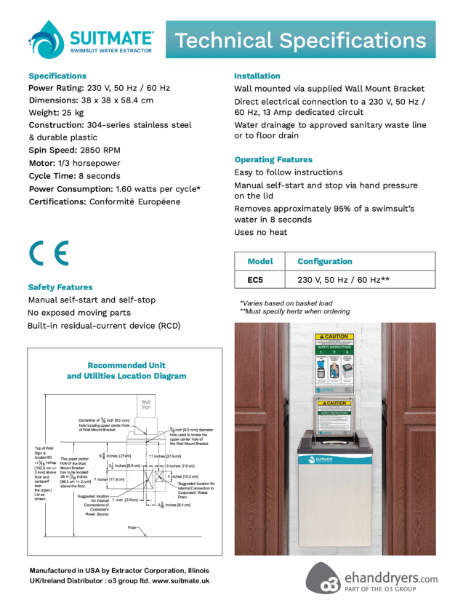

SUITMATE Swimsuit Water Extractor - Technical Specifications

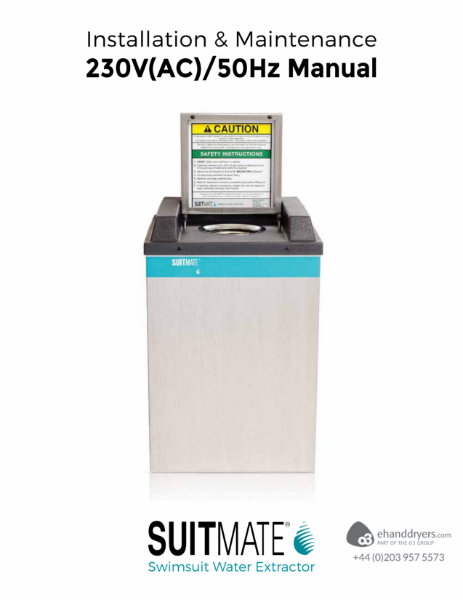

SUITMATE Swim Suit Dryer Water Extractor - User Manual UK

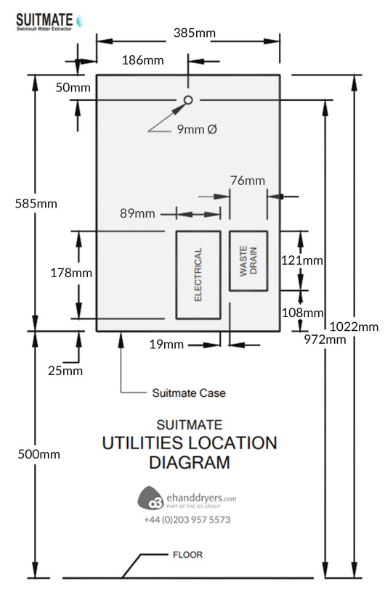

Installation Utilities Diagram for SUITMATE Swimsuit Dryer Water Extractor

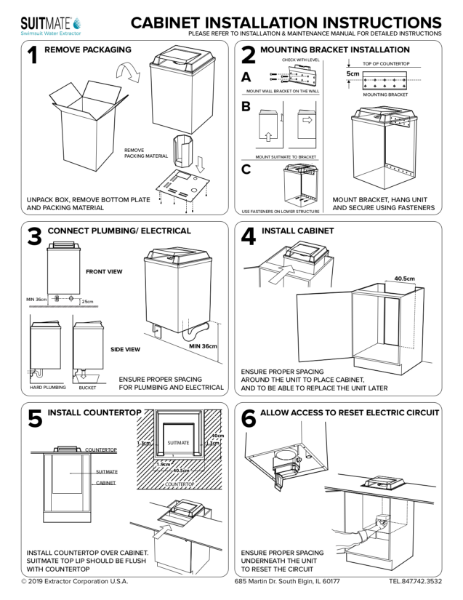

SUITMATE : Instructions and advice for installing inside a cabinet

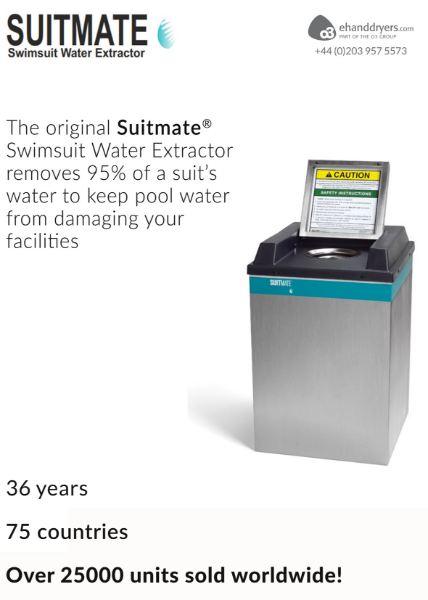

SUITMATE Brochure - Swimsuit Dryer information sheet
SUITMATE Swimsuit Dryer Water Extractor Dimensions
