Steel Protection Macropoxy® 400 - Multi-Functional Protection Coating
Verified by manufacturer 3 days ago
EPD
Certificate type
A two-component, multi-functional epoxy zinc phosphate coating for the protection of carbon steel.
Application
Suitable for the protection of steelwork in a range of exposure environments from C1 to C5 as defined in BS EN ISO 12944-2:2017, including buildings, car parks, petrochemical plants, breweries and power stations.
Industries:
- Pharmaceutical;
- Civil infrastructure;
- Bridge and highway;
- Water and wastewater;
- Food and beverage;
- Oil and gas.
Description
A two-component, multi-functional epoxy zinc phosphate coating for the protection of carbon steel.
Suitable for the protection of steelwork in a range of exposure environments from C1 to C5 as defined in BS EN ISO 12944-2:2017, including buildings, car parks, petrochemical plants, breweries and power stations.
May be used as a high-build intermediate coat as well as the final coat where a low-sheen industrial and functional finish is required.
General information
Color | Other |
Finish | Sheen |
Material | Epoxy |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M61/170 Off-site coating to galvanized steel M61/160 Off-site coating to primed steel M61/150 Off-site coating to unprimed steel G10/660 Shop plus site painting G10/640 Shop painting |
SKU Code | Macropoxy® 400 |
Specification data - Epoxy resin coatings
Classification data | |
Colour | Guidance for specification option: Limited range including MIO shades available; consult manufacturer for options and insert requirements. |
Composition | Solvent-based. Guidance for specification option: Recommended thinner: No 2 (for thinning); No 9 or No 13 (for cleaning). |
Standard | To BS 476-7:1997 - Surface Spread of Flame. To BS 6853 Appendix D - Smoke Emissions. Guidance for specification option: For details of substrate/ scheme, consult manufacturer. |
Flash point | Base: 24°C; additive: 26°C. |
Volume solids | To ASTM-D2697-03(2014), 70% ±3%. |
VOC content | 257 g/L determined practically in accordance with UK Regulations PG6/23. 289 g/L calculated from formulation to satisfy EC Solvent Emissions Directive. 190 g/kg content by weight from formulation, to satisfy EC Solvent Emissions Directive. |
Drying time | At +15°C: to touch: 1.5 hours; to recoat: 5 hours; to handle: 15 hours. At +23°C: to touch: 1 hour; to recoat: 3.5 hours; to handle: 7 hours. At +35°C: to touch: 45 minutes; to recoat: 2 hours; to handle: 4 hours. |
Application method | Airless spray, conventional spray, brush or roller. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Epoxy |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/kg) Stage:A1–A3 ('Production stage') Normalised unit : 3.39 (kg CO₂ eq/kg) Declared unit : 3.39 Lower emissions | |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Product certifications
Product certifications
EPD

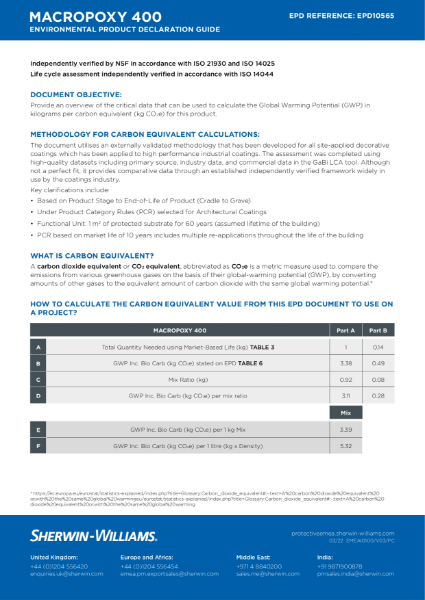

Macropoxy 400 EPD Certificate
Literature

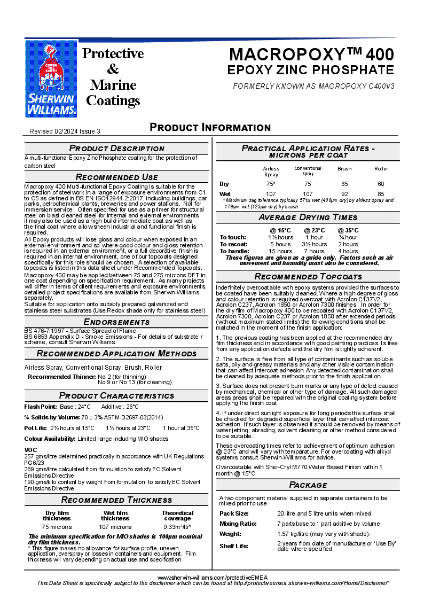

Steel Protection Macropoxy® 400 Product Data Sheet
Similar products from Sherwin-Williams
Fire Protection FIRETEX® C69

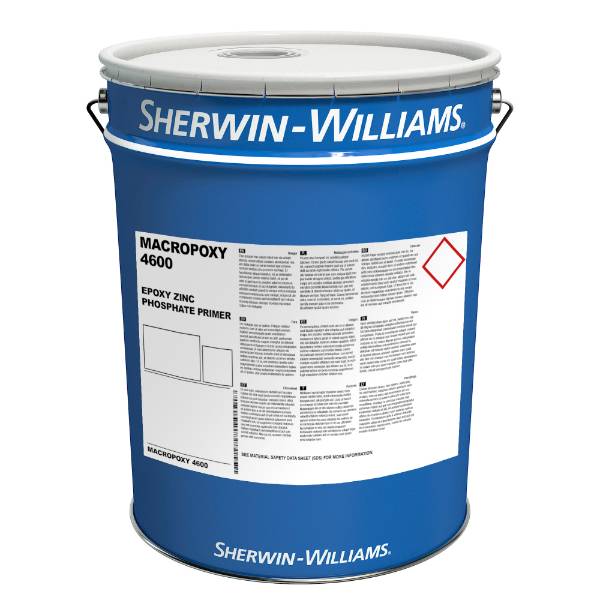

Steel Protection Macropoxy® 4600 - Multi-Functional Protection Coating
