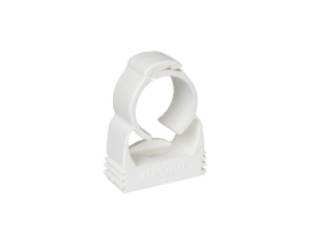

Name: starQuick® - Pipe Clamp
Brand: Walraven Ltd
SKU: cyGHjGjRC5YD3wC2eYmzPR

None.

BIS starQuick® duo wall plate, white.

Guidance for specification option:

For fixing of two pipes with BIS starQuick® clamps.

Suitable for BIS starQuick® Clamps up to SQ-20.

BIS starQuick® duo wall plate, grey.

Guidance for specification option:

For fixing of two pipes with BIS starQuick® clamps.

Suitable for BIS starQuick® Clamps up to SQ-20.

BIS starQuick® threaded rod adaptor, M6.

Guidance for specification option:

To fix a BIS starQuick® Clamp to a threaded rod.

To add pipework quickly and simply to an existing installation.

BIS starQuick® threaded rod adaptor, M8.

Guidance for specification option:

To fix a BIS starQuick® Clamp to a threaded rod.

To add pipework quickly and simply to an existing installation.

BIS starQuick® distance block.

Guidance for specification option:

For clamp fixing with a distance to the structure.

For screwing a clip to a distance block, use a screw of at least 55 mm.

Suitable for SQ-10 up to SQ-36.

BIS starQuick® hammer-in screw.

Guidance for specification option:

For fixing of BIS starQuick® Clamps without nut.

Suitable for fixing onto concrete, aerated concrete, brick.

BIS starQuick® rail.

Guidance for specification option:

For fixing of two or more pipes with BIS starQuick® Clamps without nut.

BIS starQuick® rail adaptor.

Guidance for specification option:

Suitable for BIS starQuick® Clamps up to SQ-32.

For fixing of a BIS starQuick® Clamp (without nut) on a BIS starQuick® Rail or on a Strut-Adaptor.

BIS starQuick® universal rail adaptor.

Guidance for specification option:

For fixing BIS starQuick® Clamps to BIS RapidRail® or Strut Rail.

To add pipework quickly and simply to an existing installation.

Suitable for SQ-10 up to SQ-51.

BIS starQuick® fixing nut, M6, grey.

Guidance for specification option:

To make a threaded connection in a BIS starQuick® clamp.

BIS starQuick® fixing nut, M6, white.

Guidance for specification option:

To make a threaded connection in a BIS starQuick® clamp.

BIS starQuick® fixing nut, M8, grey.

Guidance for specification option:

To make a threaded connection in a BIS starQuick® clamp.

BIS starQuick® push plug.

Guidance for specification option:

For fixing of a BIS starQuick® clamp or other clamp with thread connection M6.

BIS starQuick® hammerfix.

Guidance for specification option:

For fixing of a BIS starQuick® clamp on steel rail with a 15 mm slot (e.g. WM0, 1, 15, 2, 30 or 35).

Color	White Grey Copper
Material	Plastic Guidance for specification option: Modified PA6 (polyamide).

Clip type	One piece.
Material	Modified PA6 (polyamide).

Pipe diameter	10–12 mm. 12–14 mm. 14–16 mm. 16–20 mm. 20–23 mm. 24–28 mm. 28–32 mm. 32–35 mm. 35–40 mm. 40–44 mm. 44–50 mm. 48–55 mm. 59–65 mm. Show more
Colour	Grey.
Accessories	None. BIS starQuick® duo wall plate, white. Guidance for specification option: For fixing of two pipes with BIS starQuick® clamps. Suitable for BIS starQuick® Clamps up to SQ-20. BIS starQuick® duo wall plate, grey. Guidance for specification option: For fixing of two pipes with BIS starQuick® clamps. Suitable for BIS starQuick® Clamps up to SQ-20. BIS starQuick® threaded rod adaptor, M6. Guidance for specification option: To fix a BIS starQuick® Clamp to a threaded rod. To add pipework quickly and simply to an existing installation. BIS starQuick® threaded rod adaptor, M8. Guidance for specification option: To fix a BIS starQuick® Clamp to a threaded rod. To add pipework quickly and simply to an existing installation. BIS starQuick® distance block. Guidance for specification option: For clamp fixing with a distance to the structure. For screwing a clip to a distance block, use a screw of at least 55 mm. Suitable for SQ-10 up to SQ-36. BIS starQuick® hammer-in screw. Guidance for specification option: For fixing of BIS starQuick® Clamps without nut. Suitable for fixing onto concrete, aerated concrete, brick. BIS starQuick® rail. Guidance for specification option: For fixing of two or more pipes with BIS starQuick® Clamps without nut. BIS starQuick® rail adaptor. Guidance for specification option: Suitable for BIS starQuick® Clamps up to SQ-32. For fixing of a BIS starQuick® Clamp (without nut) on a BIS starQuick® Rail or on a Strut-Adaptor. BIS starQuick® universal rail adaptor. Guidance for specification option: For fixing BIS starQuick® Clamps to BIS RapidRail® or Strut Rail. To add pipework quickly and simply to an existing installation. Suitable for SQ-10 up to SQ-51. BIS starQuick® fixing nut, M6, grey. Guidance for specification option: To make a threaded connection in a BIS starQuick® clamp. BIS starQuick® fixing nut, M6, white. Guidance for specification option: To make a threaded connection in a BIS starQuick® clamp. BIS starQuick® fixing nut, M8, grey. Guidance for specification option: To make a threaded connection in a BIS starQuick® clamp. BIS starQuick® push plug. Guidance for specification option: For fixing of a BIS starQuick® clamp or other clamp with thread connection M6. BIS starQuick® hammerfix. Guidance for specification option: For fixing of a BIS starQuick® clamp on steel rail with a 15 mm slot (e.g. WM0, 1, 15, 2, 30 or 35). Show more

starQuick® - Pipe Clamp

Application

Description

General information

Color

Material

Uniclass

Specification data - Pipe clips

Clip type

One piece.

Material

Modified PA6 (polyamide).

Pipe diameter

Colour

Accessories

Sustainability data

Country of product manufacture
