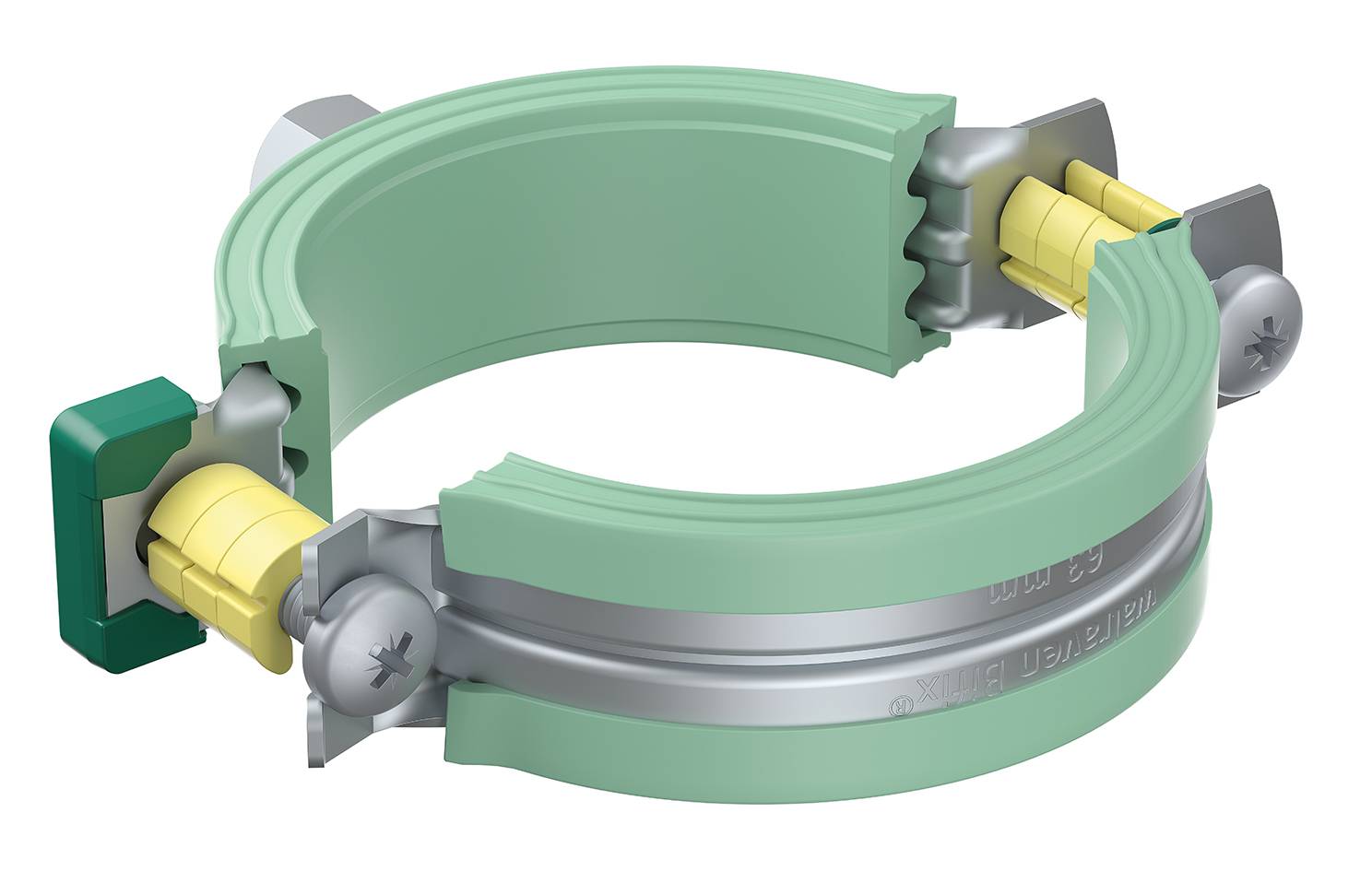

Bifix 5000 G2 - Pipe Clamp with Lining

Verified by manufacturer today

Pipe diameter: 16 mm (M8/10)

Walraven Ltd Variant:

M8/10 steel pipe clamp with lining, for plastic pipes 16–200 mm.

Jump to:
+44 (0)1295 753400 Website

Application

For use with plastic pipes 16–200 mm.

Suitable for indoor and outdoor applications.

Description

M8/10 steel pipe clamp with lining, for plastic pipes 16–200 mm.


Features and benefits:

  • Two-screw clamp with quick locking system.
  • Heavy design.
  • With removable spacer washers, making the clamp suitable for either sliding or anchoring.
  • Surface protection:
  • Part of the BIS UltraProtect® 1000 system;
  • Suitable for indoor and outdoor applications;
  • Stands minimum 1000 hours salt spray test (maximum 5% red rust) according to ISO 9227.
  • Lining:
  • Noise insulating, EPDM rubber, green.
  • Sound insulating (according to DIN 4109);
  • Very suitable for applications with plastic pipes;
  • Inner part of lining is flush to improve sliding of pipe in clamp;
  • Age resistant.

General information

Color

Silver

Green

Finish

Guidance for specification option:

BIS UltraProtect® 1000.

Material

Steel

Rubber

Guidance for specification option:

EPDM rubber.

Shape

Circle

Uniclass

Pr_20_29_14_65 Pipe clipsPrimary

CAWS

P20/30 Proprietary

P20/170 Proprietary

Specification data - Pipe clips

Clip type

600 N.

Material

Steel; EPDM rubber lining.

Dimensions

63 x 50 x 20 mm.

Guidance for specification option:

Height x width x depth.

Clamp plate: 1.25 mm thick.

Finish:

BIS UltraProtect® 1000.

Sustainability data

Country of product manufacture

Czechia

Literature

BIS UltraProtect® 1000 Leaflet

BIS UltraProtect® 1000 Leaflet
