Stannah Midilift CLS low pit platform lift
Verified by manufacturer 2 months ago
750×785 Single entrance (side mounted) side opening 250 kg
750×785 Single entrance (side mounted) side opening 250 kg
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

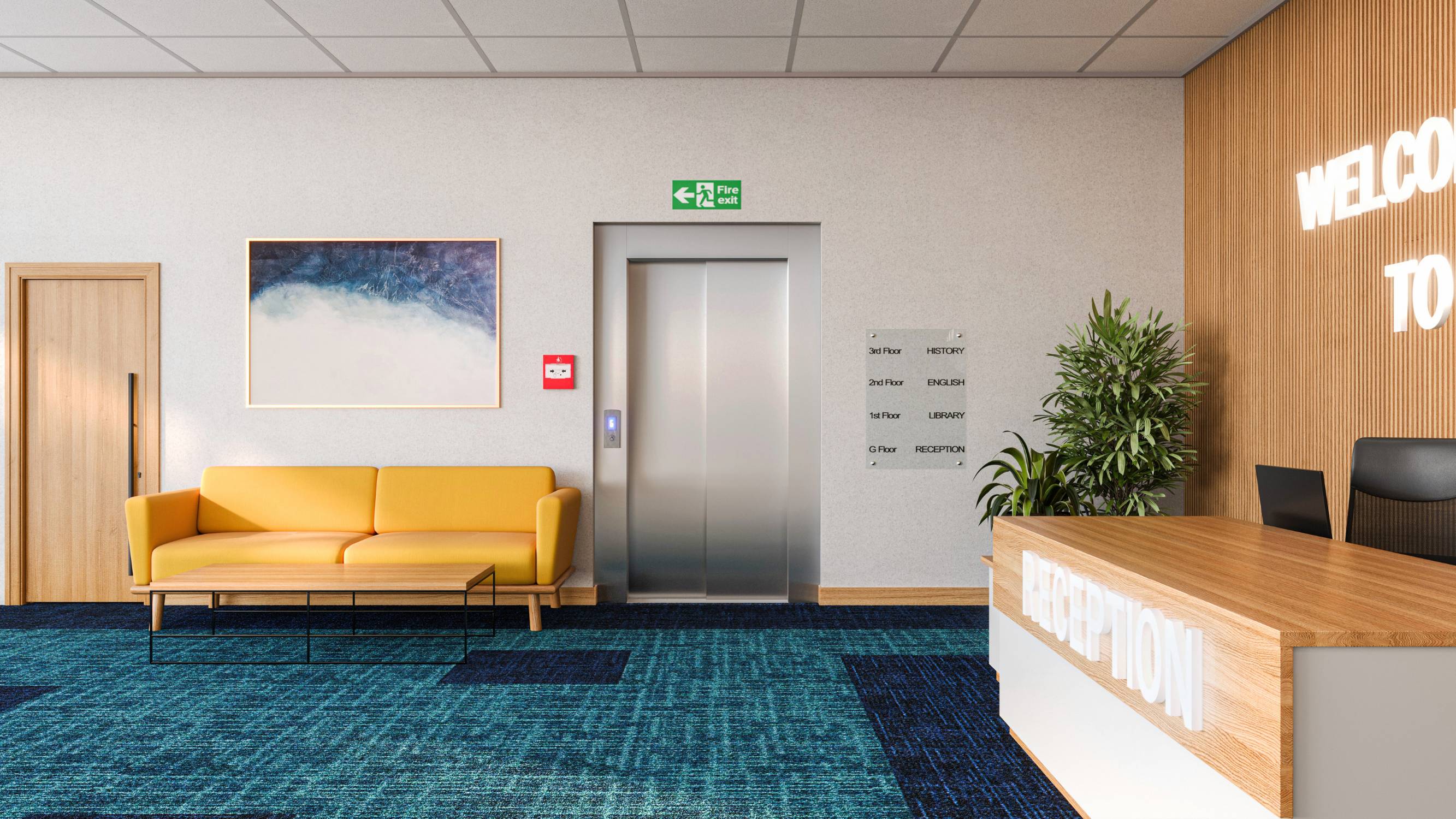

Fully enclosed cabin platform lift with sliding doors and automatic controls. Ideal for home, public and commercial environments.
Application
- Low-rise applications up to 12 m.
- Public, commercial and residential environments.
- Indoor or outdoor.
- Ideal for wheelchair and disabled access.
Description
The Midilift CLS range of low-speed lifts combines the benefits of a platform lift with the features of a conventional passenger lift and includes a full lift car, centre and side opening sliding landing doors and automatic controls.
Helps to meet the requirements of Part M, Section 4.2 and BS 8300, as well as helping to meet obligations under the Equality Act (formerly the DDA).
Features and benefits:
- Fully-enclosed lift car with automatic controls and sliding doors.
- Wide range of configurations and options.
- It can be installed within a traditional masonry-built shaft or steel structure, available in a wide variety of colours and finishes, including glazed panels.
Our Midilift CLS range is CE marked, meets 2006/42/EC Machinery Directive and complies with the Supply of Machinery (Safety) Regulations 2008 (2008 No. 1597).
General information
Color | White Grey Black |
Finish | Powder-coated Smooth Textured |
Material | Steel Stainless steel Glass |
Shape | Rectangle Square |
Length | 540 mm 785 mm 800 mm 860 mm 885 mm Manufacturer guidanceThe length and width of the platform are dependent on entrance configuration, car size and whether it's in a masonry shaft or structure. |
Width | 740 mm 750 mm 800 mm 900 mm 960 mm |
Height | 1200 mm |
Warranty description | Two year Guidance for specification option: Two year service warranty cover with four service visits per year. Optional 24/7 service cover. |
Uniclass | |
CAWS | X12/110 Vertical lifting platform systems X12/110 Vertical lifting platform systems X12/350 Platform lifts X12/350 Platform lifts |
Product range |
Specification data - Vertical lifting platforms
Standard | To BS EN 81-41. |
Rated load (minimum) | 250 kg. |
Drive type | Hydraulic.Guidance for specification option: With separate control cabinet 962 x 511 x 2162 mm (w x d x h). |
Carriage type | Fully enclosed. |
Carrier | |
Frame material | Steel. |
Frame finish | Steel. |
Frame colour | Manufacturer's standard. |
Infill material | Skin-plate.Formica.Stainless steel.Timber.Glass.Manufacturer guidanceSee Infill finish for the finish options for each material. |
Infill finish | Skin-plate - Traffic white.Guidance for specification option: Standard option. Skin-plate - Soft beige.Skin-plate - Blue.Skin-plate - Grey.Skin-plate - Light Grey.Skin-plate - Cream.Skin-plate - Red.Skin-plate - Green.Skin-plate - Orange.Skin-plate - Light wood effect.Skin-plate - Medium wood effect.Skin-plate - Dark wood effect.Skin-plate - Platinum.Skin-plate - Grey leather.Formica - Birch.Formica - White.Formica - Beige.Formica - Deep blue.Formica - Deep red.Formica - Grey.Formica - Red orange.Formica - Yellow.Formica - Light green.Formica - Green.Formica - Sky blue.Formica - Turquoise.Formica - Grey.Formica - Black.Formica - Light oak.Formica - Dark oak.Formica - Dark walnut.Formica - Grey timber.Stainless steel - Natural.Stainless steel - Elephant Skin.Stainless steel - Linen.Timber - Oak 7101 with gold stainless steel.Timber - Oak 7101 with SB stainless steel.Timber - Chestnut with gold stainless steel.Timber - Chestnut with SB stainless steel.Glass - Natural standard.Guidance for specification option: For glass infills. |
Insert colour | See Carrier - Infill finish. |
Doors | |
Arrangement | Single. |
Type | Sliding, two-panel stainless steel, side-opening.Manufacturer guidanceOptional: The doors are available in natural and gold stainless steel, as well as other decorative finishes. Consult manufacturer for details. |
Clear opening width (minimum) | 600 mm. |
Fire classification | E120.Guidance for specification option: Two hour fire rated doors as standard. |
Frame material | Stainless steel. |
Frame finish | Brushed. |
Frame colour | Silver. |
Infill material | Brushed stainless steel.Glass. |
Carrier floor | |
Dimensions | |
Width (minimum) | 750 mm. |
Depth (minimum) | 785 mm. |
Material | None.Rubber - Light grey circles S42 GG.Guidance for specification option: Standard option. Rubber - Black circles S45 GN.Rubber - Dark Grey S52 GN.Rubber - Sand S62 GG.Granite - Pearl Grey.Granite - Clear Labrador.Granite - Dark Labrador.Marble - Italian White.Marble - Portuguese Brown.5-bar Aluminium Chequer Plate.Stainless Steel Tread Chequer Plate.Stainless Steel Diamond Chequer Plate.Manufacturer guidance140mm pit depth required on marble and granite floors. Floor by others available on request. |
Colour | See Carrier floor - Material. |
Electrical supply | Single-phase 220 V a.c.. |
Control device type | Push-button - round button with halo.Guidance for specification option: Standard option. Push-button - round button with halo and braille.Manufacturer guidanceAutomatic. |
Control features | Door open push button. |
Accessories | Not required.Key switch.Guidance for specification option: On car or landing operating panel. Card reader.Guidance for specification option: On car or landing operating panel. Keypad.Guidance for specification option: On car or landing operating panel. Volt free contacts for integration with customer control systemAutodialler with GSM with options for induction loop and Stannah ManagedSIM service.Automatic emergency rescue device.4 hour emergency lighting in lift car ceiling. |
Shaft type | Masonry. Shaft (supplied by others). Painted steel shaft structure, smooth finish with infills to match, RAL 9016 (traffic white). Painted steel shaft structure, smooth finish with infills to match, RAL. Guidance for specification option: Light Grey Crinkled Finish RAL 7035, Grey Aluminium RAL 9007, Anthracite Grey RAL 7016, Jet Black RAL 9005. Insert requirements. Painted steel shaft structure, RAL, with clear glass infills. Guidance for specification option: Light Grey Crinkled Finish RAL 7035, Grey Aluminium RAL 9007, Anthracite Grey RAL 7016, Jet Black RAL 9005. Insert requirements. |
Ceiling | Spot LED - Direct lighting using 2 x LED spots in silver surround on RAL (White) painted ceiling. Guidance for specification option: Standard option. I LED - Direct lighting using 2 x LED spots in gold surround on RAL (White) painted ceiling. L350 Suspended ceilings with indirect lighting. 401 Suspended ceiling with grid style ceiling and indirect lighting. |
Mirrors | Not required. Half height mounted on rear wall. |
Handrail | PS12 Single round stainless steel (35 mm diameter). PS14 Double round stainless steel (35 mm diameter). |
Car operating panel | BCE1 Short 1320 mm length. Guidance for specification option: Standard option. BCE2 Partial height vertical surface mounted. Guidance for specification option: Variable height between 1600–1800 mm. BCEE Full height vertical flush mounted. BC300 Full height vertical flush or surface mounted. |
Display | Car display - DCEPH 3” digital car floor and level indicator. Guidance for specification option: Standard option. Car display – DCEPV 3” digital car floor and level indicator Car display - 7” full-colour car floor level and direction indicator. |
Landing display | Vertical LCD display with landing designation (HLE6). |
Landing operating panels | Landing operating panel (BEE3). Landing operating panel with digital landing and direction indicator (BEE4). Landing operating panel with indicator (BEE5). |
Headroom | 2500 mm (For adjacent entry, headroom is 2600 mm). |
Pit depth | Manufacturer guidance150 mm pit depth, or ramp option. Consult manufacturer for details and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Steel Stainless steel Glass |
Recyclability | Steel, Stainless Steel, Copper, Aluminium, Glass |
