Stannah Midilift CL cabin platform lift
Verified by manufacturer 3 months ago
800x1250 Single entrance (mechanism rear mounted) 250 kg
800x1250 Single entrance (mechanism rear mounted) 250 kg
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
ISO 45001 Health and Safety Management
Certificate type
Cabin platform lift with hinged landing doors and automatic controls. Suitable for home, public and commercial environments.
Application
- Low-rise applications up to 12 m.
- Public, commercial and residential environments.
- Indoor or outdoor.
- Particularly suitable for wheelchair and disabled access.
Description
Midilift CL vertical platform lift has a comprehensive range of lift cars, finishes and materials – as well as indoor and outdoor options – to suit a range of public and residential environments.
Helps to meet the requirements of Part M, Section 4.2 and BS 8300, as well as helping to meet obligations under the Equality Act (formerly the DDA).).
Features and benefits:
- Semi or fully-enclosed lift car with automatic controls and hinged landing door.
- Wide range of configurations and options.
- It can be installed within a traditional masonry-built shaft or steel structure, available in a wide variety of colours and finishes, including glazed panels.
Our Midilift CL range is CE marked, meets 2006/42/EC Machinery Directive and complies with the Supply of Machinery (Safety) Regulations 2008 (2008 No. 1597).
General information
Color | White Grey Black Other |
Finish | Smooth |
Material | Steel Stainless steel Glass |
Shape | Rectangle Square |
Length | 750 mm 770 mm 870 mm 900 mm 970 mm Manufacturer guidanceThe length and width of the platform are dependent on entrance configuration, car size and whether it's in a masonry shaft or structure. |
Width | 600 mm 685 mm 700 mm 900 mm 800 mm |
Height | Bespoke |
Warranty description | Two year Guidance for specification option: Two year service warranty cover with four service visits per year. Optional 24/7 cover. |
Uniclass | |
CAWS | X12/350 Platform lifts X12/350 Platform lifts X12/110 Vertical lifting platform systems X12/110 Vertical lifting platform systems |
Product range |
Specification data - Vertical lifting platforms
Standard | To BS EN 81-41. |
Rated load (minimum) | 250 kg. |
Drive type | Hydraulic.Guidance for specification option: With remote control cabinet 700 x 400 x 1500 mm (w x d x h). |
Carriage type | Full-height. |
Carrier | |
Frame material | Steel. |
Frame finish | Metal. |
Frame colour | Manufacturer's standard. |
Infill material | Skin-plate.Formica.Stainless steel.Glass.Manufacturer guidanceSee Infill finish for the finish options for each material. |
Infill finish | Skin-plate - Warm White.Guidance for specification option: Standard option. Skin-plate - Soft Beige.Skin-plate - Blue.Skin-plate - Grey.Skin-plate - Light Grey.Skin-plate - Cream.Skin-plate - Red.Skin-plate - Green.Skin-plate - Orange.Skin-plate - Light wood effect.Skin-plate - Medium wood effect.Skin-plate - Dark wood effect.Skin-plate - Platinum.Skin-plate - Grey leather.Formica - Birch.Formica - White.Formica - Beige.Formica - Deep blue.Formica - Deep red.Formica - Grey.Formica - Red.Formica - Orange.Formica - Yellow.Formica - Light green.Formica - Green.Formica - Sky blue.Formica - Turquoise.Formica - Grey.Formica - Black.Formica - Light oak.Formica - Dark oak.Formica - Dark walnut.Formica - Grey timber.Stainless steel - Natural.Stainless steel - Elephant Skin.Stainless steel - Linen.Glass - Natural standard.Guidance for specification option: For glass infills. |
Insert colour | See Carrier - Infill finish. |
Doors | |
Arrangement | Single. |
Type | No car door.Guidance for specification option: Standard option. Automatic bus-type stainless steel lift car door.Automatic bus-type stainless steel lift car door with glass window. |
Clear opening width (minimum) | 900 mm. |
Carrier floor | |
Dimensions | |
Width (minimum) | 800 mm. |
Depth (minimum) | 1250 mm. |
Material | None.Rubber - Light grey circles S42 GG.Guidance for specification option: Standard option. Rubber - Black circles S45 GN.Rubber - Dark Grey S52 GN.Rubber - Sand S62 GG.Granite - Pearl Grey.Granite - Clear Labrador.Granite - Dark Labrador.Marble - Italian White.Marble - Portuguese Brown. |
Colour | See Carrier floor - Material. |
Electrical supply | Single-phase (25 A Type C MCB). |
Control device type | Push-button - round button with halo.Guidance for specification option: Standard option. Push-button - round button with halo and braille.Manufacturer guidanceConstant pressure/ Automatic (with car door option). |
Control features | Door open push button. |
Accessories | Not required.Key switch.Guidance for specification option: On car or landing operating panel. Card reader.Guidance for specification option: On car or landing operating panel. Keypad.Guidance for specification option: On car or landing operating panel. Volt free contacts for integration with customer control systemAutodialler with GSM with options for induction loop and Stannah ManagedSIM service.Automatic emergency rescue device.4 hour emergency lighting in lift car ceiling. |

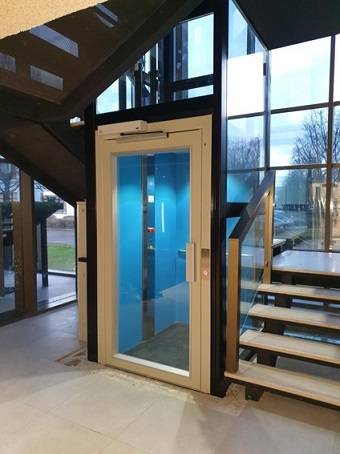

Shaft type | Masonry. Shaft (supplied by others). Painted steel shaft structure, with infills to match, RAL 9016 (traffic white). Painted steel shaft structure, with infills to match, RAL. Guidance for specification option: Light Grey Crinkled Finish RAL 7035, Grey Aluminium RAL 9007, Anthracite Grey RAL 7016, Jet Black RAL 9005. Insert requirements. Painted steel shaft structure, RAL, with clear glass infills. Guidance for specification option: Light Grey Crinkled Finish RAL 7035, Grey Aluminium RAL 9007, Anthracite Grey RAL 7016, Jet Black RAL 9005. Insert requirements. |

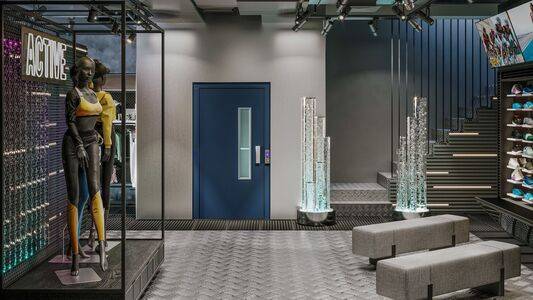

Landing doors | Steel door with small vision panel (45 minute fire rated). RAL painted. Guidance for specification option: Standard option. Fully glazed manual landing door in RAL 9016 (traffic white) leatherette finish. Steel door with vision panel (45 minute fire rated), RAL painted. Steel door with vision panel (60 minute fire rated), RALpainted. Steel door with vision panel (120 minute fire rated), RAL painted. |
Ceiling | Spot LED - Direct lighting using 2 x LED spots in silver surround on RAL (Traffic White) painted ceiling. Guidance for specification option: Standard option. I LED - Direct lighting using 2 x LED spots in gold surround on RAL (Traffic White) painted ceiling. L350 Suspended ceilings with indirect lighting. 401 Suspended ceiling with grid style ceiling and indirect lighting. |
Mirrors | Full height (1/3 of car wall width). Guidance for specification option: Standard option. Half height mounted on rear wall. |
Handrail | PS12 Single round stainless steel (35 mm diameter). Guidance for specification option: Standard option. PS14 Double round stainless steel (35 mm diameter). |
Car operating panel | Full height, surface mounted car operating panel. |
Display | Car display - DCEPH 3” digital car floor and level indicator. Guidance for specification option: Standard option. Car display - 7” full-colour car floor level and direction indicator. |
Landing display | Horizontal LCD display with landing designation (HLE0). Vertical LCD display with landing designation (HLE6). |
Landing operating panels | Landing operating panel with indicator (BEE5). |
Landing buttons | Brushed stainless steel landing button with braille option (PCEB). Black landing button with braille option (PCMT). |
Headroom | Internal car height + 350 mm. |
Pit depth | Manufacturer guidance100 mm or 140 mm dependent on floor finish or ramp option. Consult manufacturer for details and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Spain |
Country of product manufacture | Spain |
Recyclability | Steel, Stainless Steel, Copper, Aluminium, Glass |
Third party certifications
ISO 14001 Environmental Management Systems
ISO 14001 Environmental Management
ISO 9001 Quality Management
ISO 9001 Quality Management
ISO 45001 Health and Safety Management
ISO 45001 Health and Safety Management
