Standard Geotextiles - Nonwoven geotextile
Verified by manufacturer 1 day ago
T700
T700

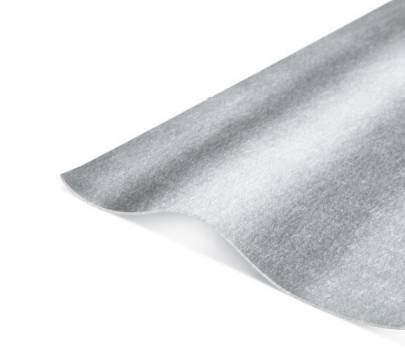

Nonwoven geotextile made from UV stabilized polypropylene fibres for separation and filtration in construction applications.
Application
Used for prevention of intermixing of sub-base and subgrade layers, drainage and bedding materials in paved and unpaved roads, railways, car parks, hardstandings, cycleways, footpaths, and Sustainable Drainage Systems (SuDS).
Description
Nonwoven geotextile manufactured from UV stabilised, high tenacity, virgin polypropylene fibres that have been both mechanically and thermally bonded to provide a highly permeable yet durable separation and filtration layer.
Features and benefits:
Features and benefits:
- Manufactured from inert high tenacity virgin polypropylene fibres giving excellent long term durability in all soil types.
- High static and dynamic puncture resistance ensures a low risk of damage during construction.
- Random orientated web with isotropic properties provide the same strength, permeability and filtration in all directions.
- High elongation at break maintains separation and filtration function under load particularly in soft and variable ground conditions.
General information
Color | White |
Material | Polypropylene |
Shape | Other Guidance for specification option: Roll. |
Length | 50000 mm 100000 mm 150000 mm |
Width | 4500 mm 6000 mm |
Uniclass | |
CAWS | Q25/64 Geotextile sheet Q25/365 Geotextile sheet Q20/170 Geotextile filter/ separator membrane R12/492 Geotextile membranes – filter D20/550 Geotextile sheet D20/58 Geotextile sheet |
SKU Code | 153756 |
Specification data - Plastics sheets
Classification data | |
Product reference | Standard Geotextiles |
Material | Polypropylene. |
Purpose | Separation and filtration layer. |
Standard | To BS 8661. |
Third-party certification | Network Rail PADS certificate numbers; T1000 057/100703, T2000 57/100705, T3000 57/100706 (4.5 x 100 m rolls) and T4000 057/100709 (4.5 x 50 m rolls). |
Performance characteristics | |
Tensile strength (minimum) | 6 kN/m. |
Elongation to break | 60%. |
UV stabilization | To EN 12224: 30 days. |
Environmental performance requirements | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | None – virgin material. |
Form | Non-woven. |
Root inhibitor | None. |
Physical properties | |
Colour | White. |
Weight (minimum) | 40 kg. |
Dimensions | |
Width (minimum) | 4.5 m. |
Roll length (minimum) | 150 m. |
CBR puncture resistance | 1050 N. |
Permeability | 100 L/m²s. |
Pore size | 95 µm. |
Ageing | Combined ageing (Oxidation, temperature and moisture) to EN ISO 13438 Service: 50 years. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Manufacturing plant location | |
Material | Polypropylene |
Expected Life | 100 year |

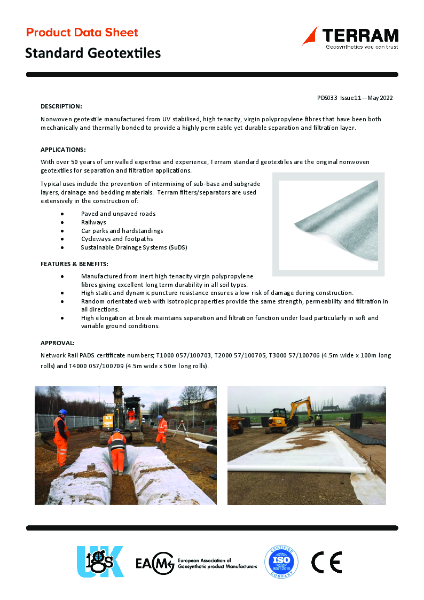

Literature
Standard Geotextiles
