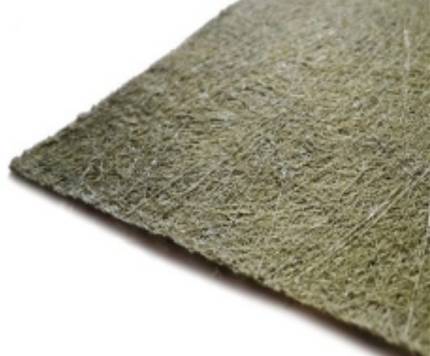

Inbitex™ - Geotextile
Verified by manufacturer 3 days ago
Specialist nonwoven geotextile for pervious pavement systems and sustainable urban drainage to separate, filter, and remove pollutants from runoff.
Application
Used within pervious pavement systems (PPS) and sustainable urban drainage systems (SUDS) to provide separation, filtration, and removal of pollutants from water runoff.
Suitable for:
- Formpave Aquaflow permeable concrete block paving systems.
- Terram Bodpave pervious pavement system.
- Terram Truckpave pervious pavement system.
- Porous/pervious paving systems.
- Filter wrap to geocellular attenuation/infiltration tanks.
- Diffuser boxes.
- SuDS filtration.
Description
Inbitex™ is a specialist nonwoven geotextile designed for use within PPS (pervious pavement systems) or SUDS (sustainable urban drainage systems) to provide separation, filtration and removal of pollutants from water runoff.
Features and benefits:
- Attracts & traps hydrocarbons (oil) - prevents pollution.
- Unique fibre matrix provides perfect habitat for microbial film - breaks down up to 400 g oil/SQM/year.
- Nonwoven material with isotropic properties, same strength in all directions extending pavement life.
- High permeability and low pore sizes - effectively filters silts and other pollutants.
- Chemically inert and durable.
- Service life in excess of 100 years.
- Lightweight and easy to handle - low risk of manual handling injury.
General information
Color | Grey |
Material | Polyethylene Polypropylene Polymer |
Shape | Other Guidance for specification option: Roll. |
Length | 100000 mm |
Width | 4500 mm |
Height | 0.7 mm |
Uniclass | |
CAWS | Q24/12 Permeable concrete block paving Q24/119 Permeable concrete block paving – no infiltration Q24/117 Permeable concrete block paving – partial infiltration Q24/115 Permeable concrete block paving – total infiltration |
SKU Code | Inbitex |
Specification data - Plastics sheets
Classification data | |
Product reference | Inbitex™ |
Material | Advanced bico technology from UV stabilised virgin polymers (PE&PP). |
Purpose | Separation, filtration and removal of pollutants from water runoff. |
Performance characteristics | |
Tensile strength (minimum) | 8.5 kN/m. |
Elongation to break | 30%. |
UV stabilization | Weathering (UV Exposure) to EN 12224: 30 days. |
Form | Non-woven. |
Root inhibitor | None. |
Physical properties | |
Colour | Grey. |
Weight (minimum) | 140 g/m². |
Dimensions | |
Thickness (minimum) | 0.7 mm. |
Width (minimum) | 4.5 m. |
Roll length (minimum) | 100 m. |
CBR puncture resistance | 1.575 kN. |
Pore size | 145 µm. |
Permeability | 80 L/m²s. |
Ageing | Combined ageing (Oxidation, temperature and moisture) to EN ISO 13438: 100 years. |
Sustainability data
Material | Polyethylene Polypropylene Polymer |
Expected Life | 100 year |
Literature
Inbitex™
