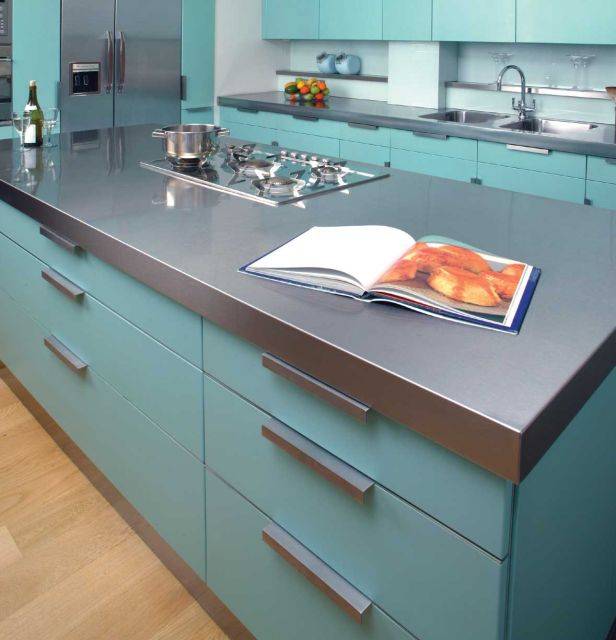

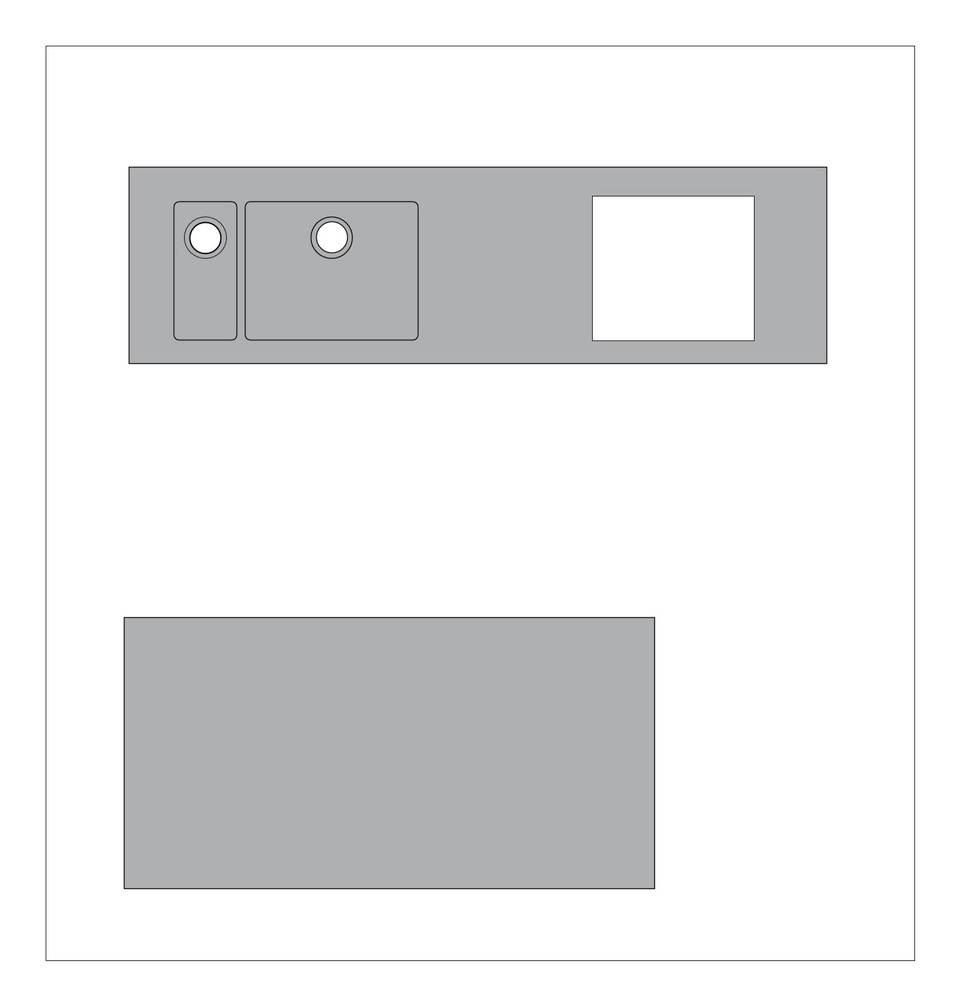

Stainless Steel Worktops - Sanitary Worktop
Verified by manufacturer 2 months ago
Made to measure stainless steel worktop. Variable shape, size, edge profiles, sink bowls and cutouts.
Application
- Domestic and commercial kitchens, kitchenettes and tea points.
- Bathrooms, washrooms, conveniences and utility rooms.
- Laboratories, surgeries and specialist areas.
- General spaces including restaurants, bars and passageways.
Suitable for:
Worktops
Kitchens
Commercial Projects
Sinktops
Combination Bowl
Sink With Drainer
Description
Worktop products are manufactured using 1 mm, 1.25 mm, 1.5 mm and 2 mm brushed-satin stainless steel of domestic grade (EN 1.4301) or alternatively, acid resisting grade for laboratories/ special environments (EN 1.4401). The actual gauge is normally dependent on size of item.
Features and benefits:
- GEC Anderson stainless steel is highly durable, resilient to heat, fire and sustained heavy use and is aseptic (totally hygienic).
- 100% recyclable.
- Can be used to produce tops in all shapes and sizes.
- Available with a range of various edge details to suit the application.
- The worktops can be made to measure in any shape or size, without joints, in one continuous flat (not sloping or fluted) surface.
- Bowls and cut-outs for appliances can be positioned precisely where required by the installation design.
General information
Color | Silver Guidance for specification option: Stainless Steel. |
Finish | Brushed Satin |
Material | Stainless steel Guidance for specification option: To EN 1.4301 or to EN 1.4401. Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N12/320 Worktops N11/340 Worktops N11/20 Worktops N10/200 Worktops N10/145 Vanity and washroom furniture N10/110 Purpose-made N10/10 Purpose-made |
Product range |
Specification data - Worktops
Material | Stainless steel to EN 1.4301.Guidance for specification option: As standard. Stainless steel to EN 1.4401. |
Dimensions | |
Plan size | As drawing.Guidance for specification option: Any size available. |
Thickness | 1 mm.1.25 mm.1.5 mm.2 mm. |
Exposed edges | |
Profile | Edge 1.Guidance for specification option: Watersafe back edge for tiling. Edge 2.Guidance for specification option: Watersafe side edge. Edge 3.Guidance for specification option: Watersafe front edge. Edge 4.Guidance for specification option: Anti-drip side/ back edge. Edge 5.Guidance for specification option: Anti-drip front edge. Edge 6.Guidance for specification option: Square back/ side up-stand. Edge 7.Guidance for specification option: Square front edge. Edge 8.Guidance for specification option: Square side/ back edge. Edge 10.Guidance for specification option: Back/ side up-stand. Edge 10R.Guidance for specification option: Back/ side up-stand. HTM63 Edges.Guidance for specification option: Bullnose front and back up-stand. Inset Edge. |
Finish | Brushed satin. Textured. |
Other requirements | Not required. As drawing. Cut-outs for appliances. Fixing and clearance for pipework. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
Literature
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel

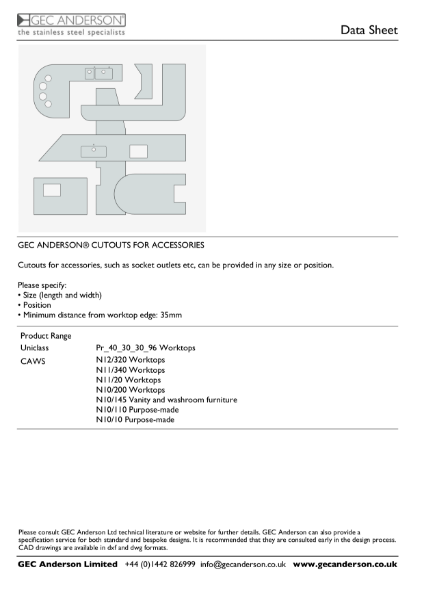

GEC Anderson Data Sheet - Cutouts for accessories

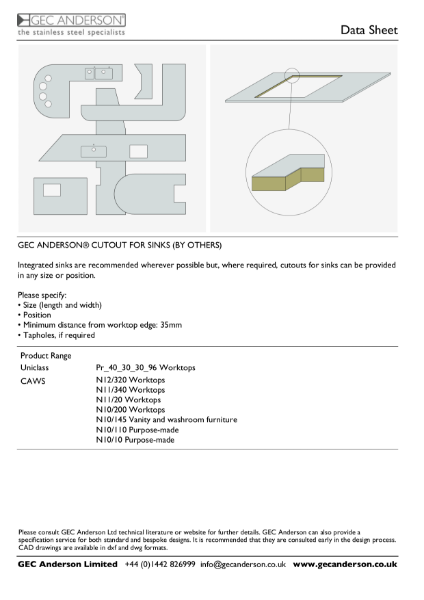

GEC Anderson Data Sheet - Cutout For Sinks

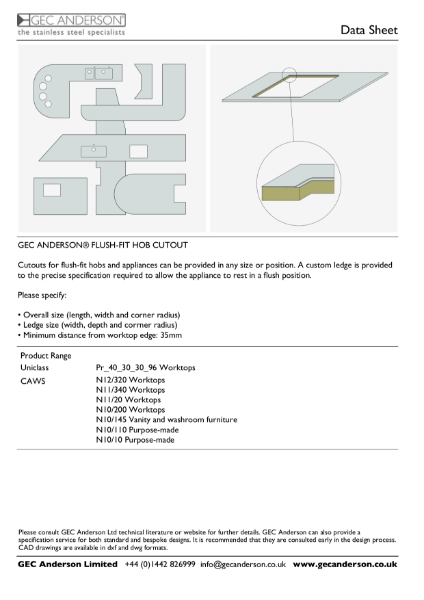

GEC Anderson Data Sheet - Flush-Fit Hob Cutout

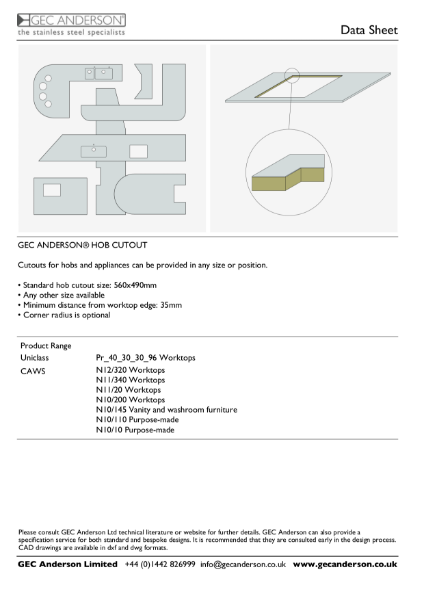

GEC Anderson Data Sheet - Hob Cutout

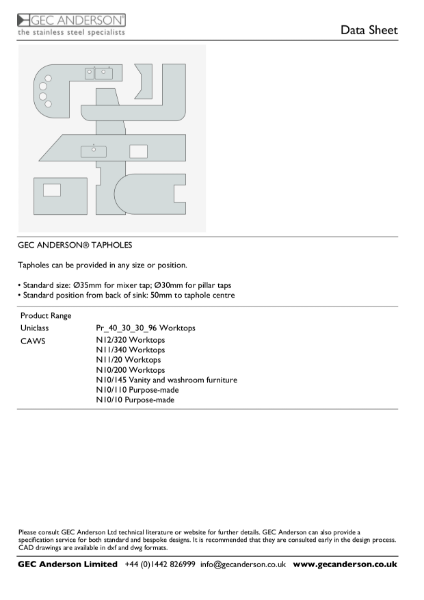

GEC Anderson Data Sheet - Taphole

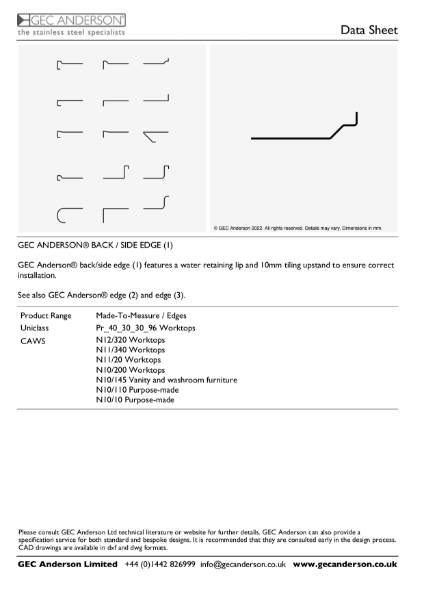

GEC Anderson Data Sheet - Edge 1

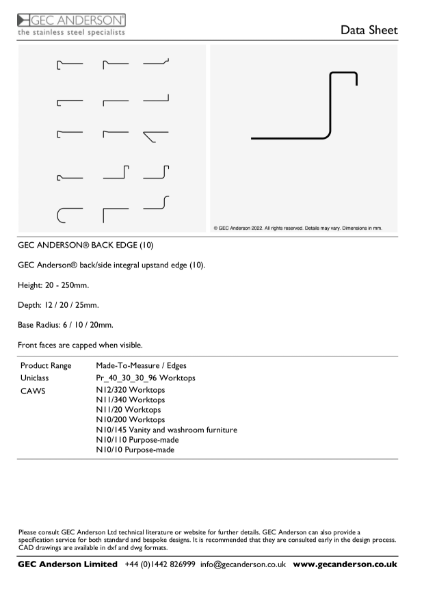

GEC Anderson Data Sheet - Edge 10

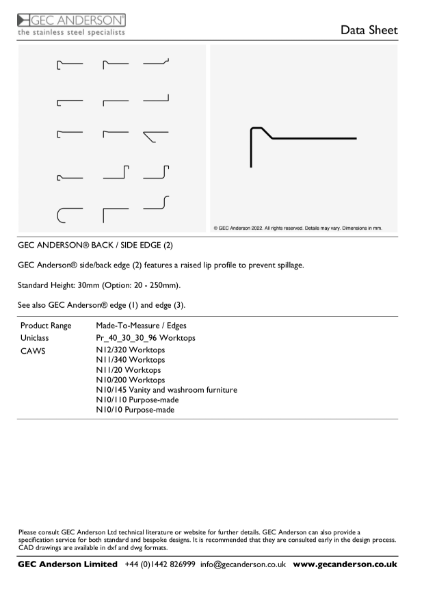

GEC Anderson Data Sheet - Edge 2
GEC Anderson Data Sheet - Edge 4

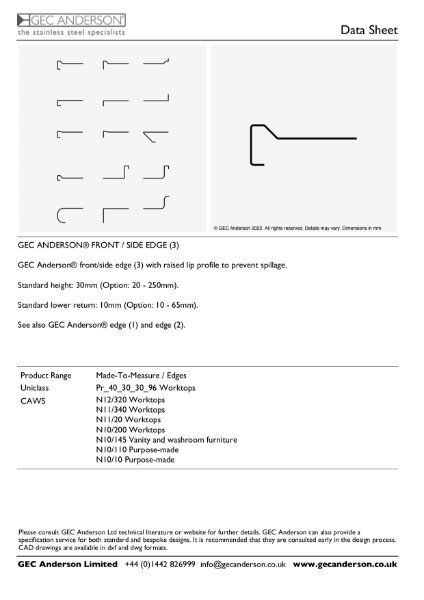

GEC Anderson Data Sheet - Edge 3

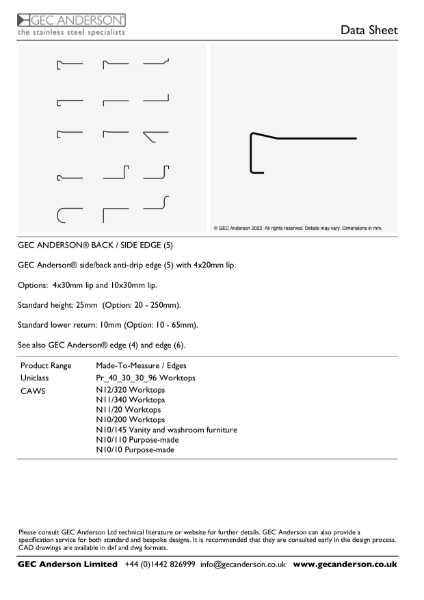

GEC Anderson Data Sheet - Edge 5
GEC Anderson Data Sheet - Edge 6

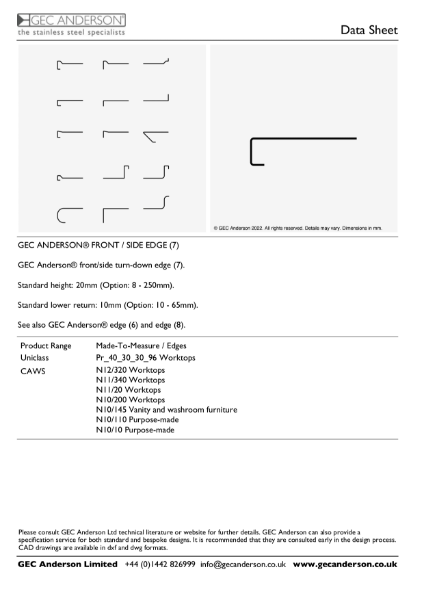

GEC Anderson Data Sheet - Edge 7

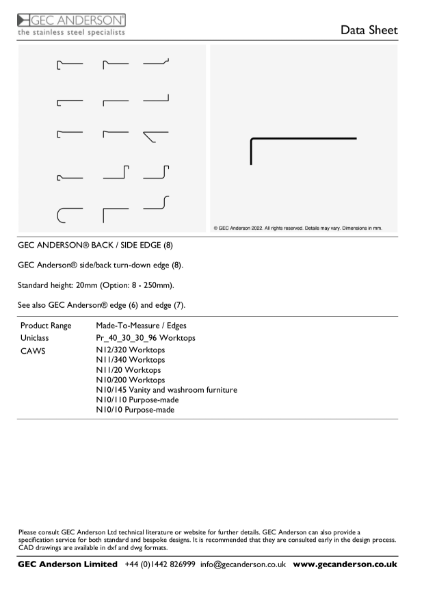

GEC Anderson Data Sheet - Edge 8

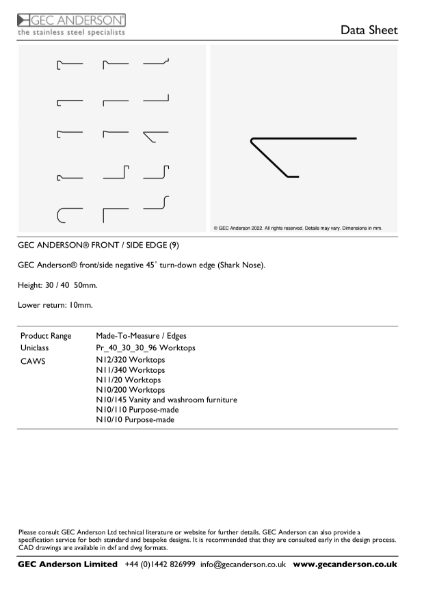

GEC Anderson Data Sheet - Edge 9

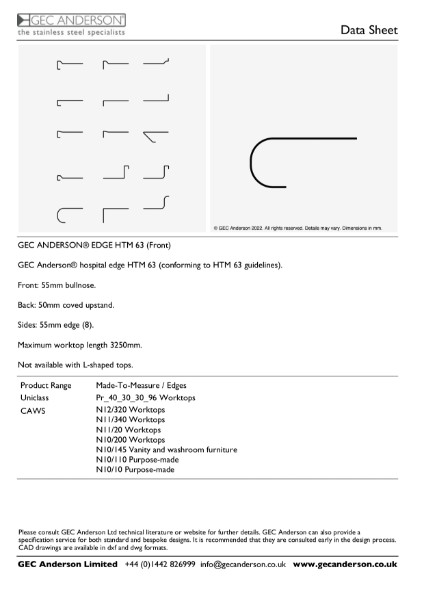

GEC Anderson Data Sheet - Edge HTM 63 Front
GEC Anderson Data Sheet - Edge HTM 63 Upstand

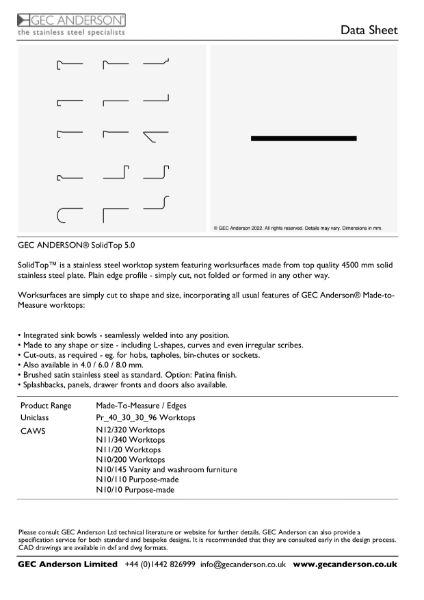

GEC Anderson Data Sheet - Solid Top

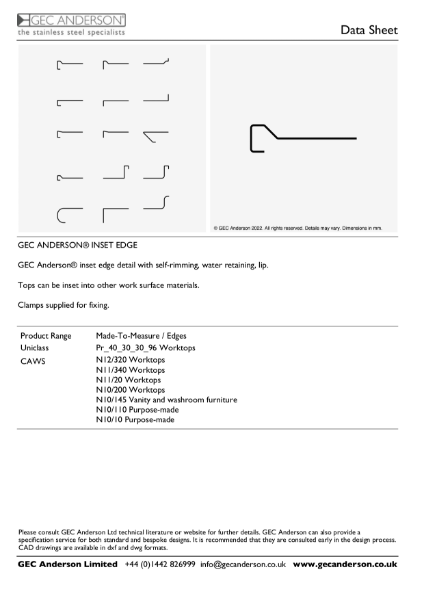

GEC Anderson Data Sheet - Inset Edge
GEC Anderson Data Sheet - Stainless Steel Worktops
Made-to-measure Stainless Steel - Stainless Steel Sinks, Worktops, Cabinets, Panels, Doors and Shelving are Produced to Meet Precise Requirements, Dimensions and Specifications

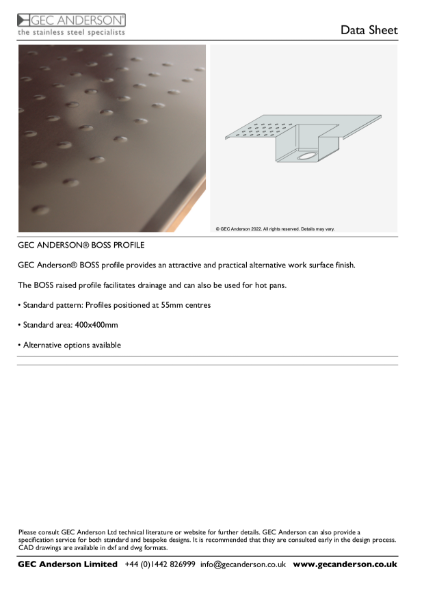

GEC Anderson Data Sheet - Boss Profile

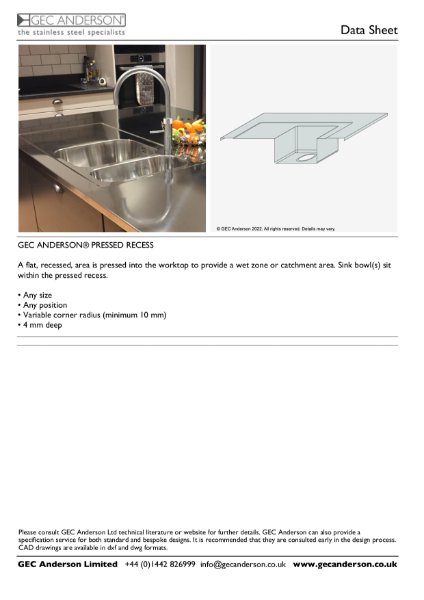

GEC Anderson Data Sheet - Pressed Recess

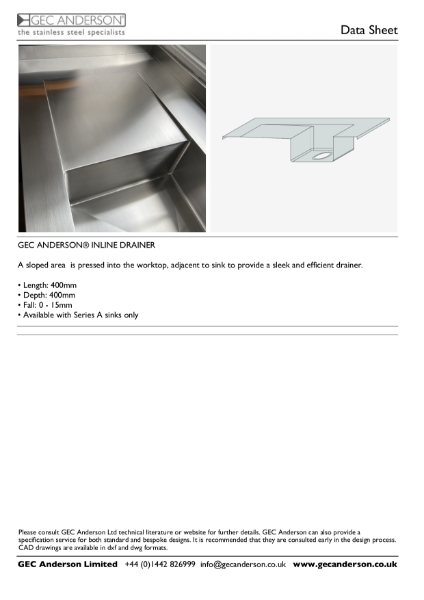

GEC Anderson Data Sheet - Inline Drainer

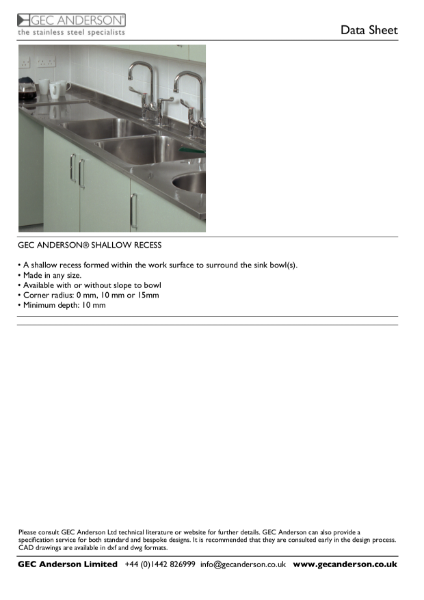

GEC Anderson Data Sheet - Shallow Recess
Case studies
Bartlett School of Architecture

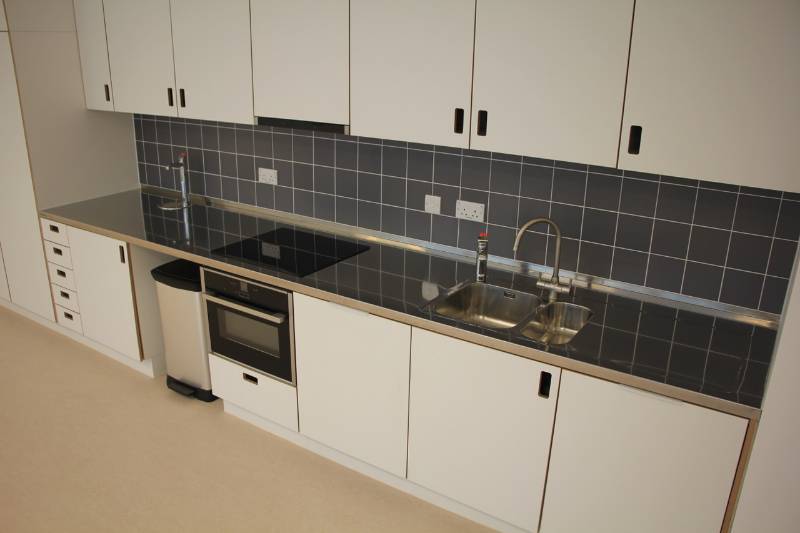

Edith Neville Primary School, Camden
Foster + Partners

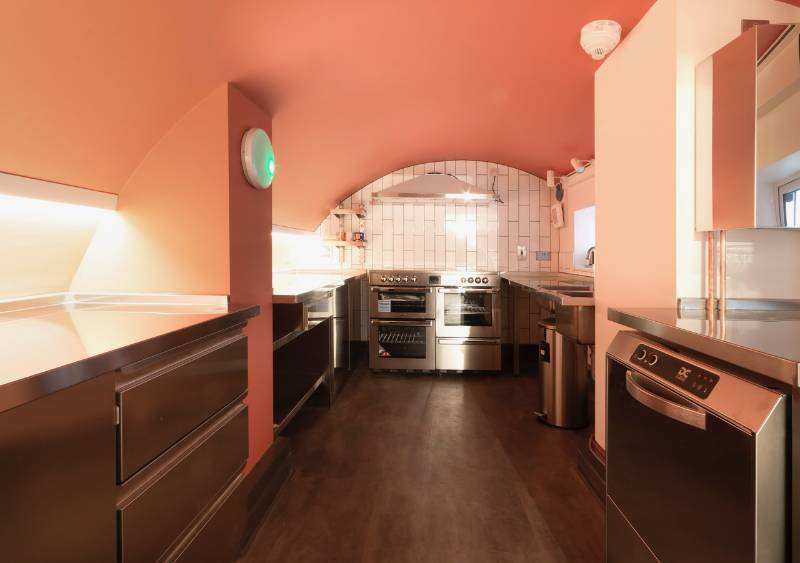

French Protestant Church, Soho
GEC ANDERSON SELECTED TO CATER FOR SUSTAINABLE LAMBETH COMMUNITY PROJECT
GEC Anderson Outdoor Kitchen
GEC Anderson Island Top

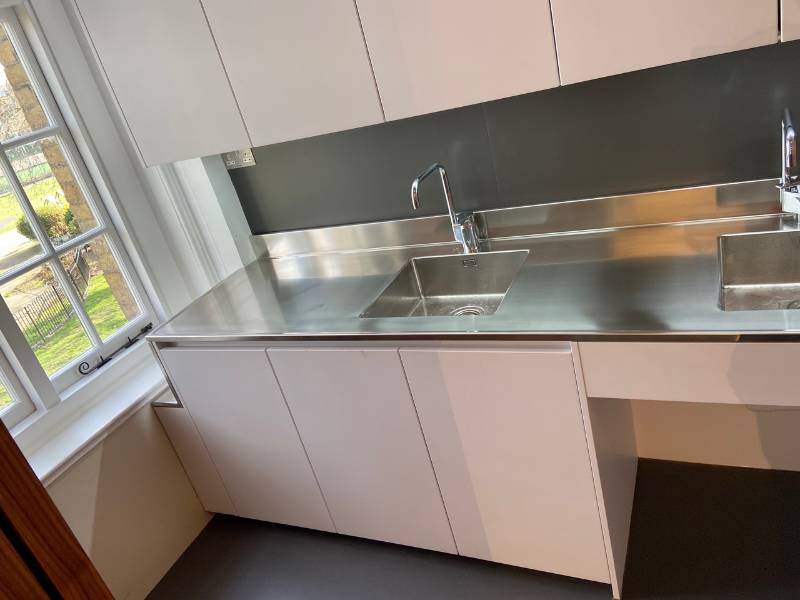

Imperial War Museum

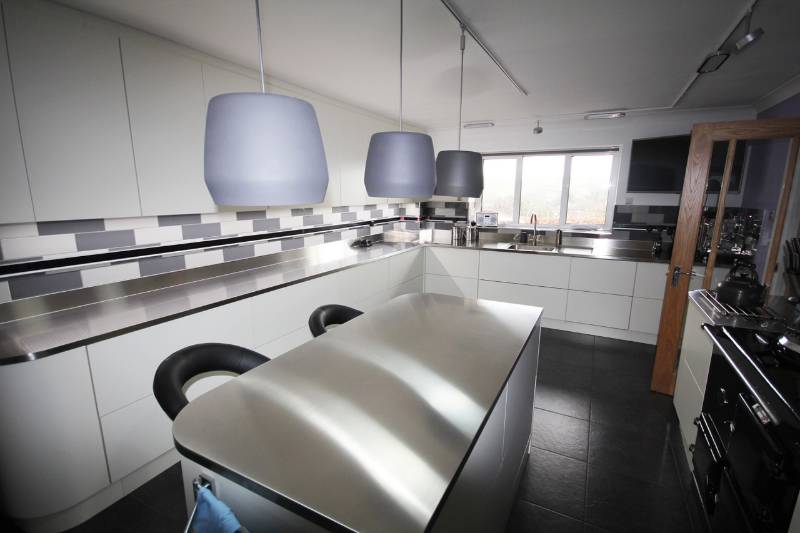

KITCHEN SPECIALIST CALLS ON GEC ANDERSON FOR HER OWN REFURBISHMENT

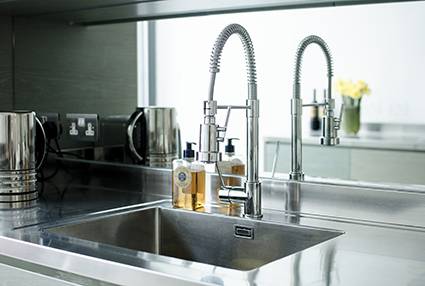

News - Pressed Recess Now Available - Freeform Wet Zones or Recessed Areas are Now Possible!
Tudor Hall School, Food Tech Room

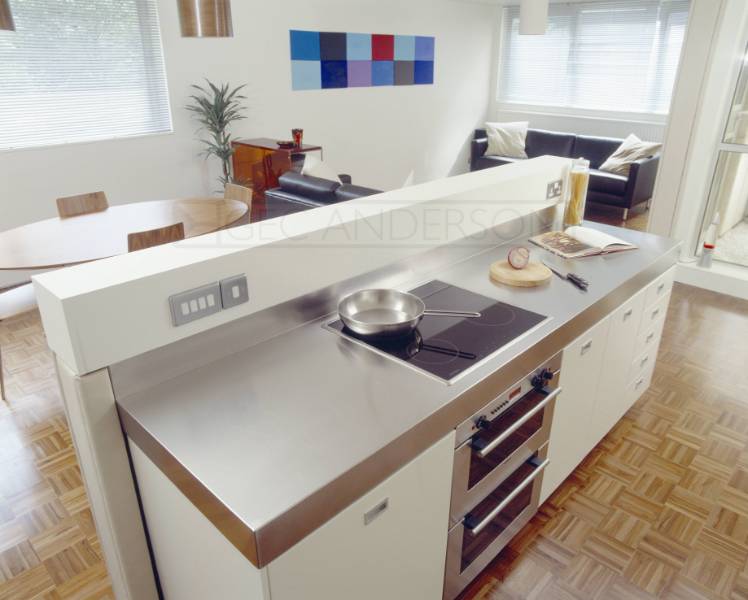

Andrew Rowland Architect

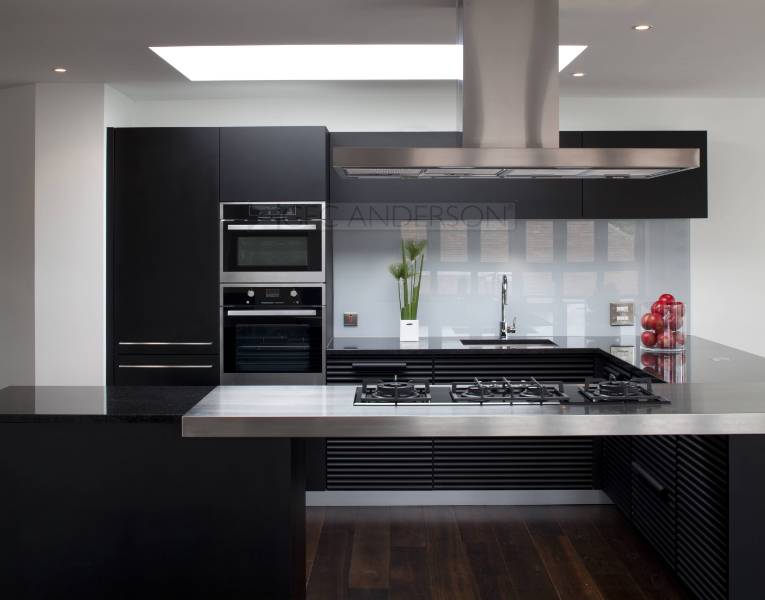

An Exclusive Touch From GEC Anderson

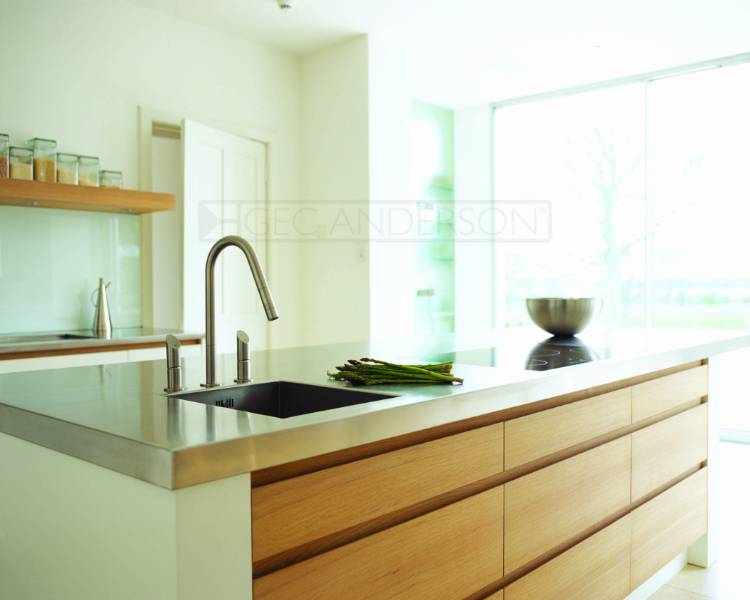

Artichoke Kitchens

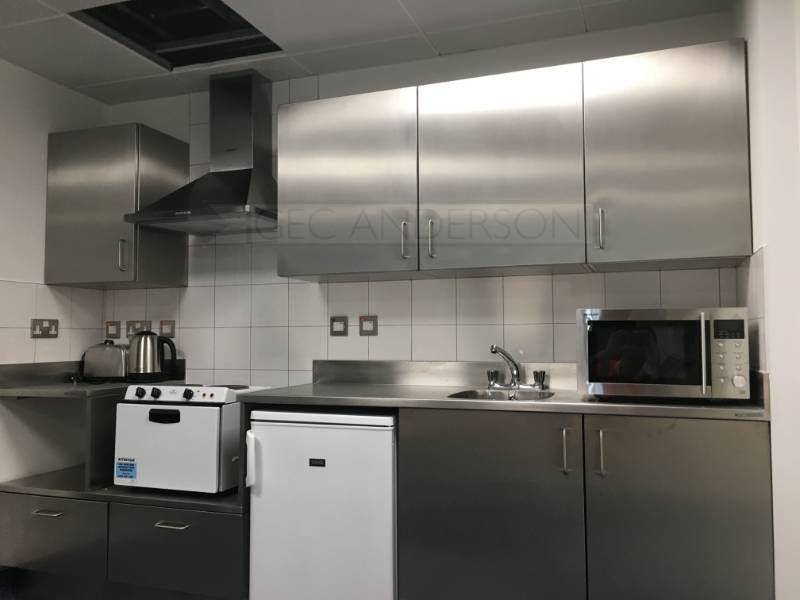

Bank Underground Station Upgrade

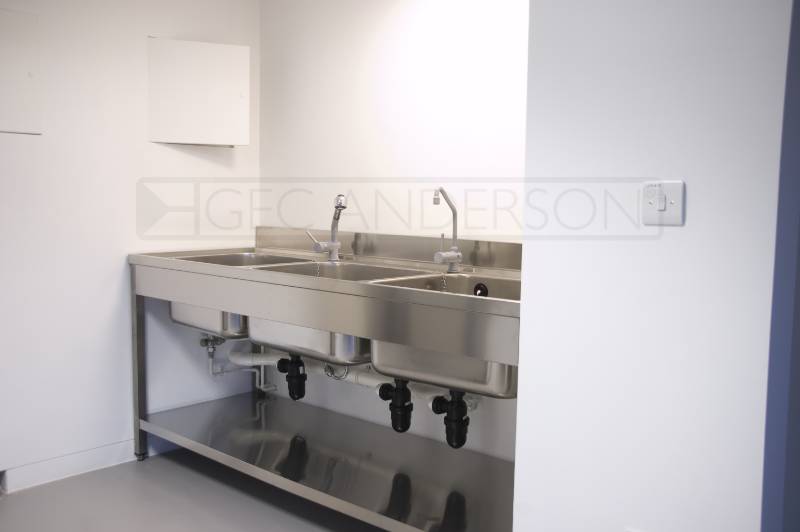

Ashmolean Museum
Batac

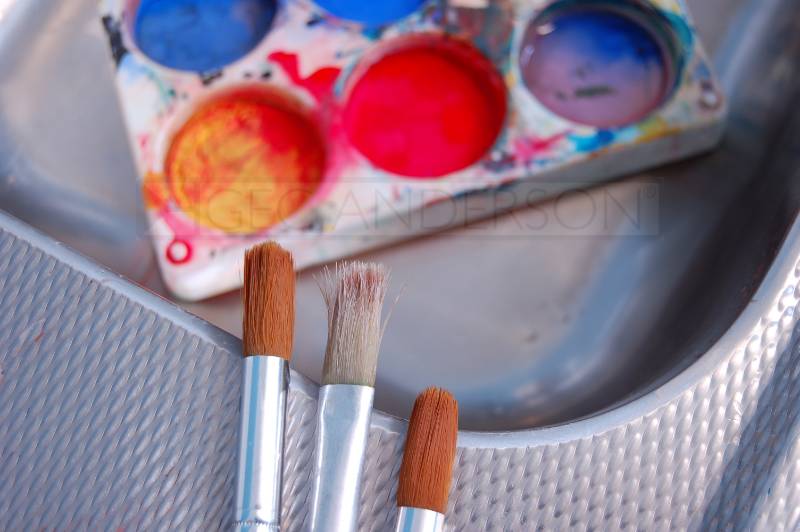

Bidwell Brook School

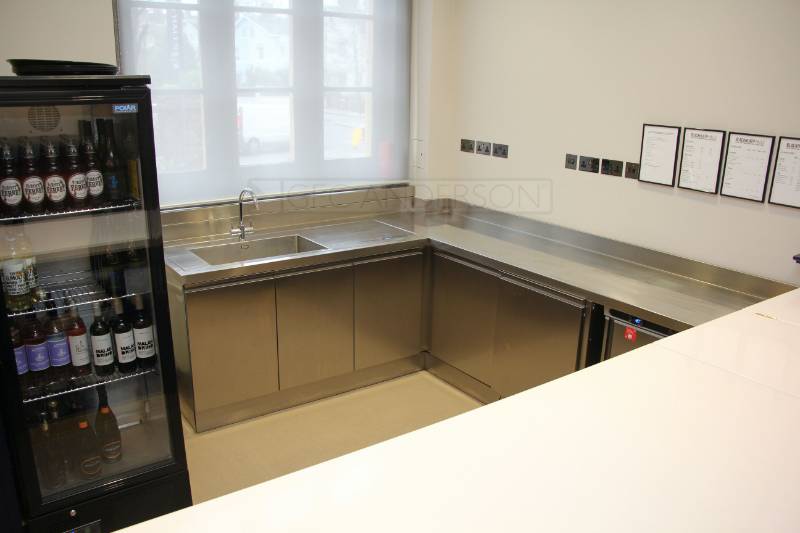

Blackheath Halls

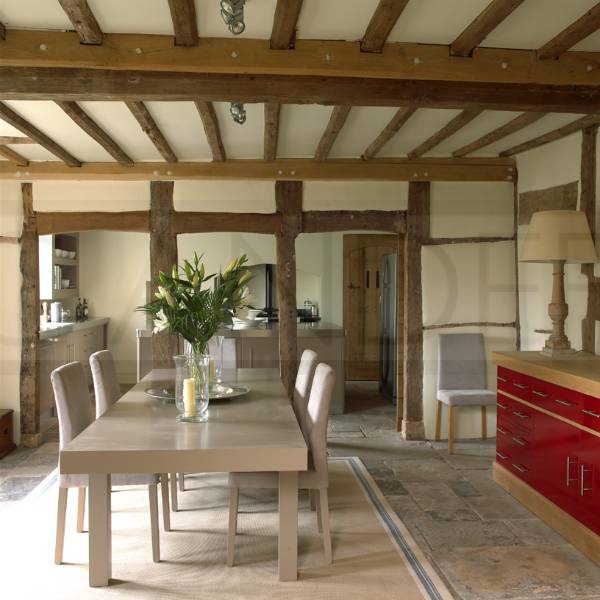

Bletchley Manor Kitchen

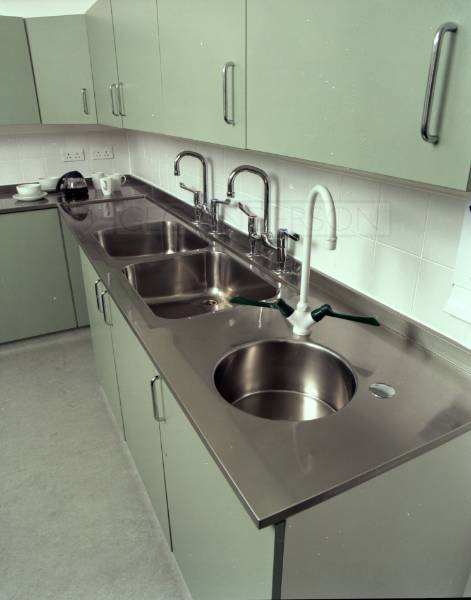

Churchill Hospital, University Of Oxford
Compact Kitchen

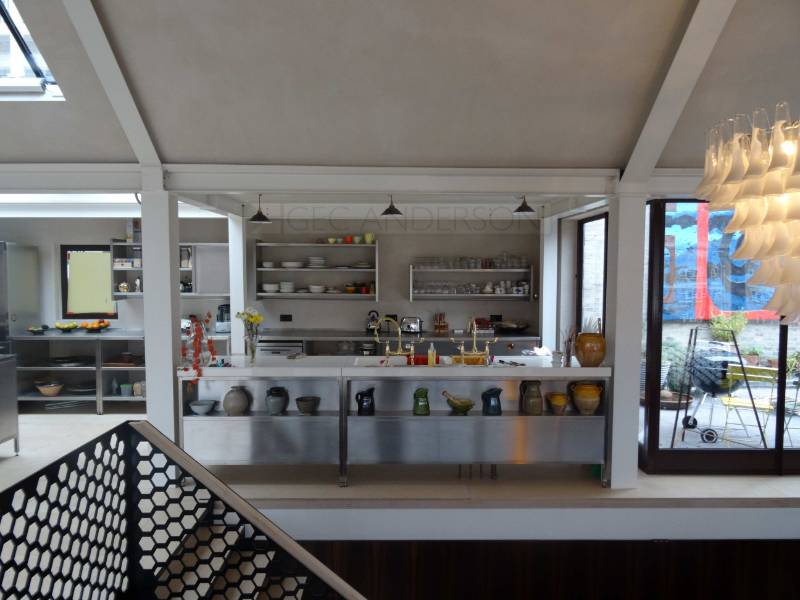

Creative Spaces

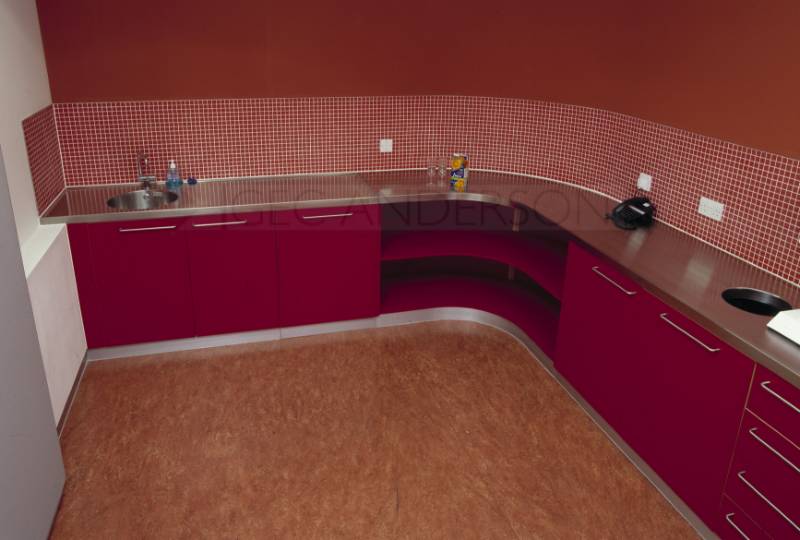

Curved Tea Points

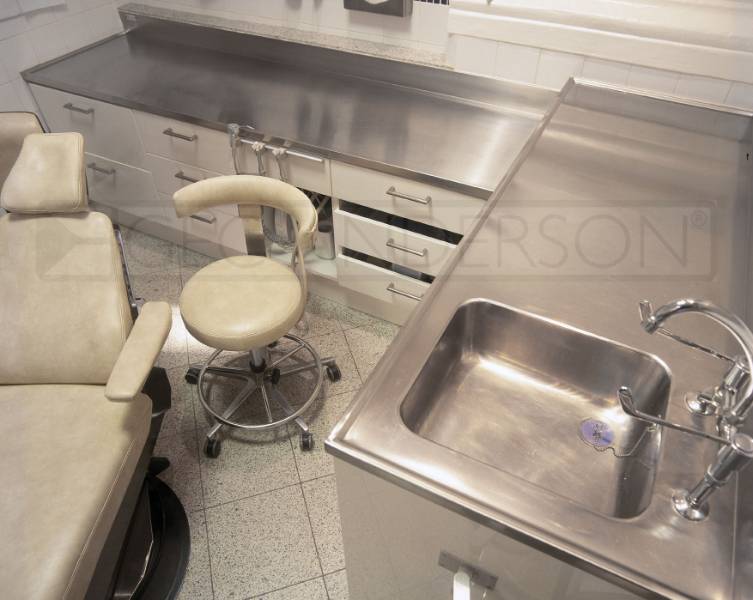

Dentist Surgery, London

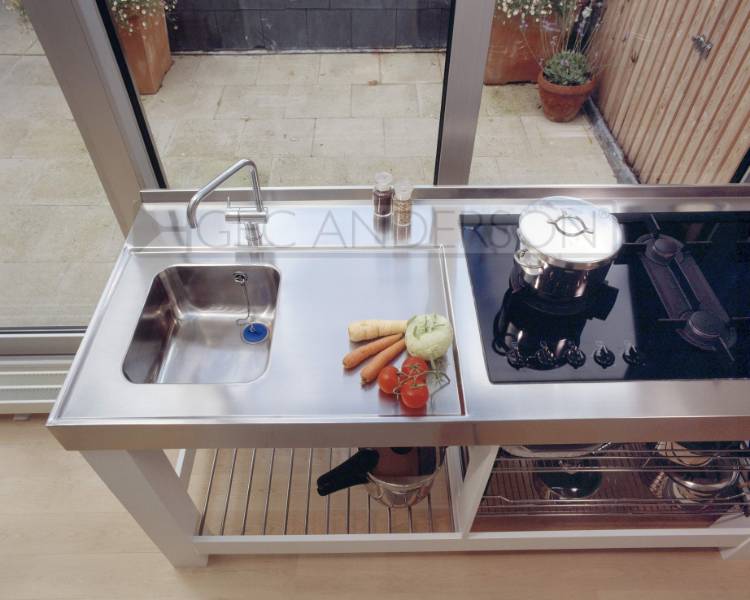

Domestic Kitchen In Spitalfields

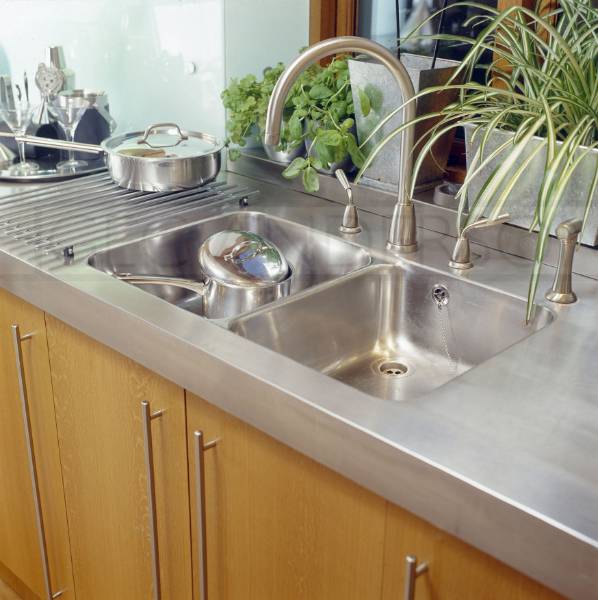

Domestic Kitchen with Curved Breakfast Bar

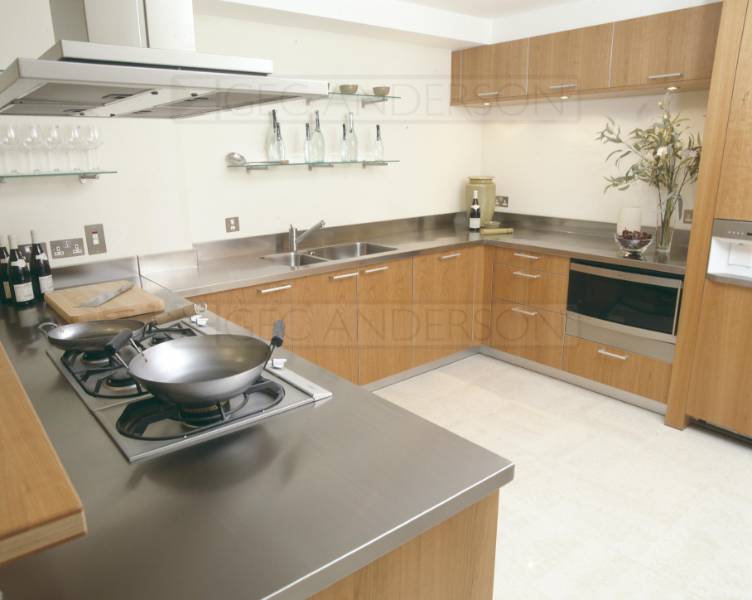

Dukes Mews, London

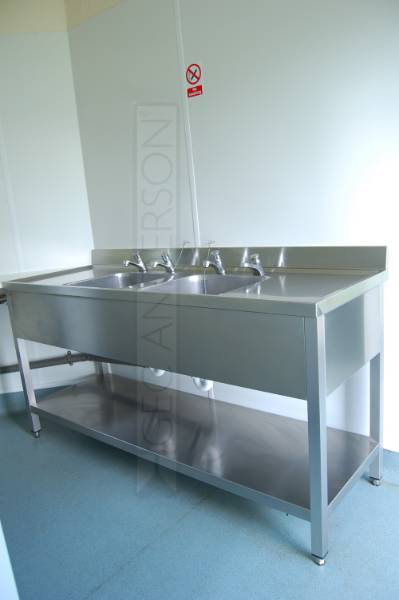

Emberton Park Caravan Site Choose Decimetric
Endoscopy Suite - Worthing Hospital
Epsom Kitchen
Fitzjohn's Primary School

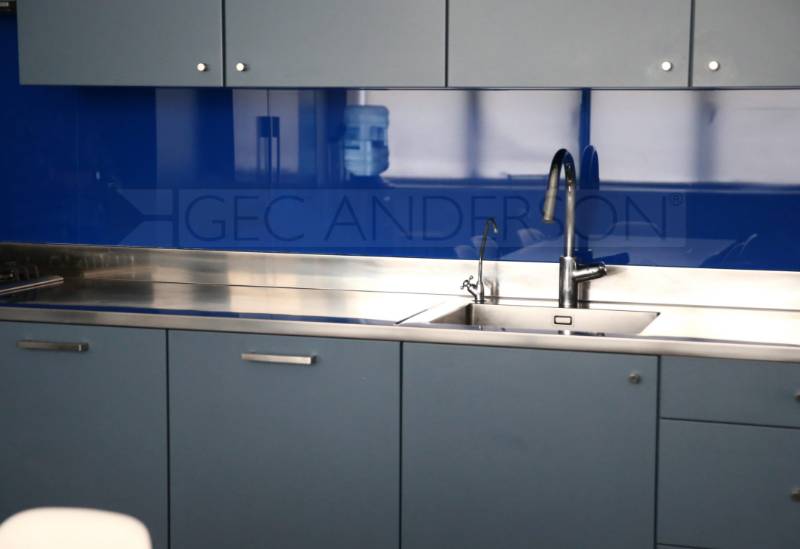

Flowers Gallery
GEC Anderson Brush Up Well For Wren Academy

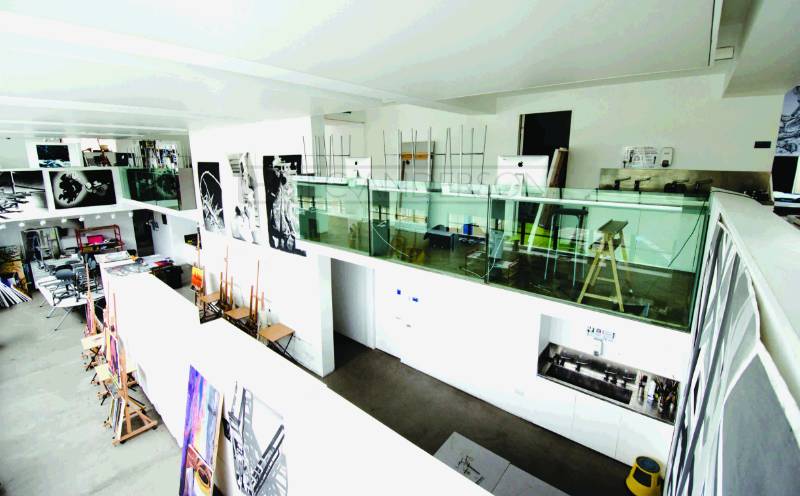

GEC Anderson Contribution To New Art Facility At Stowe School
GEC Anderson Kitchens For Danish Church Of St Katherine
GEC Anderson Offers Pristine Performance For UCS Sports Pavilion
GEC Anderson Products Feature At The Hold, Suffolk

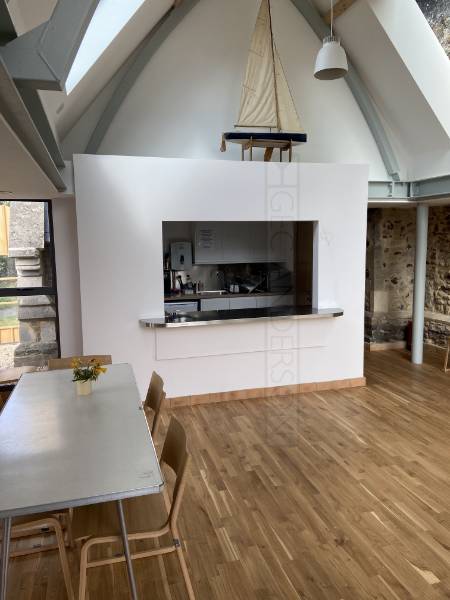

GEC Anderson stainless steel counter and splashbacks in St Mary’s Church, Wivenhoe

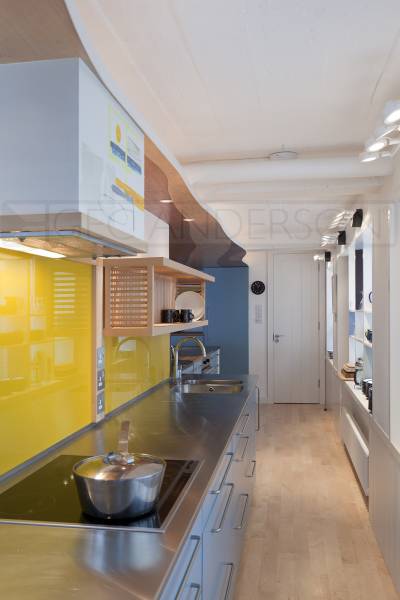

GEC Anderson Stainless Steel Is Salt Of The Earth

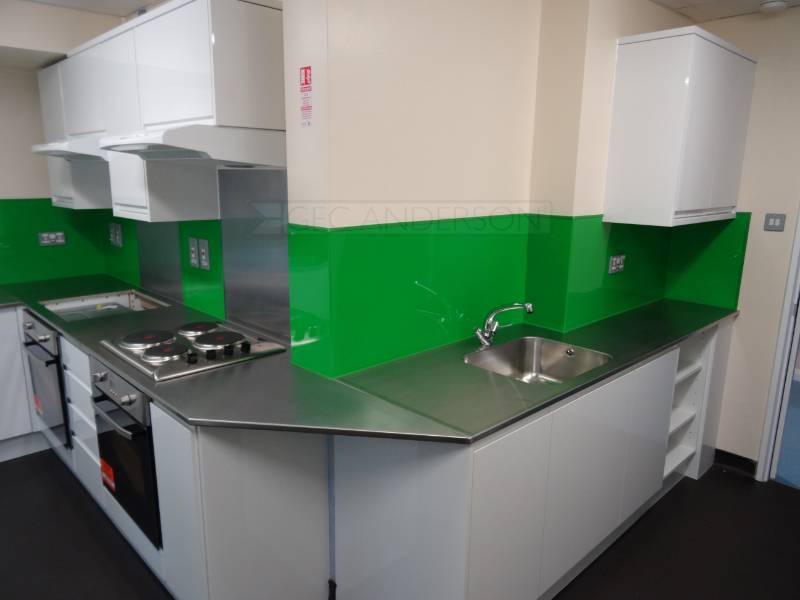

GEC Anderson Stainless Steel Worktops Chosen For UCL Halls Of Residence

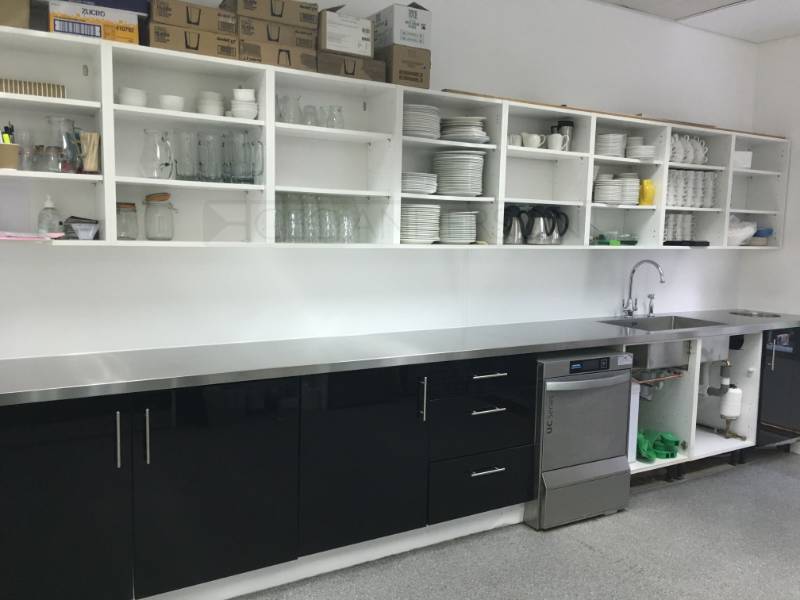

GEC Anderson Worktops Just The Tonic For GMC HQ

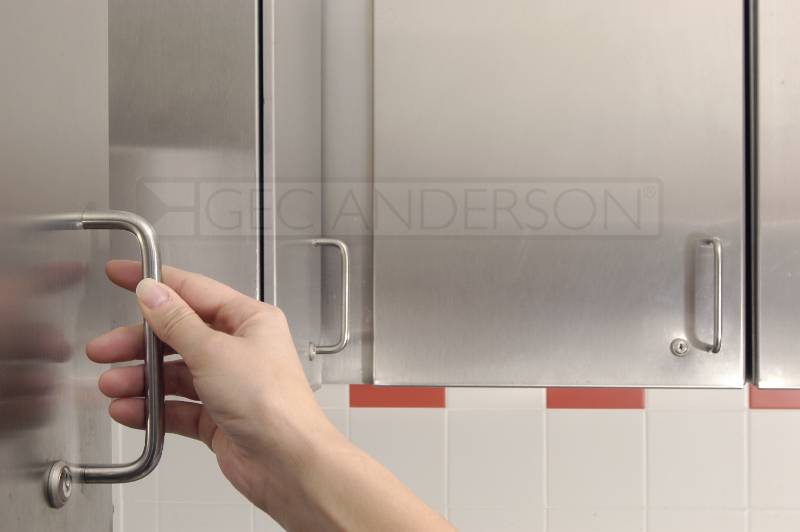

Gordon Hopkins New Ward, Southend Hospital

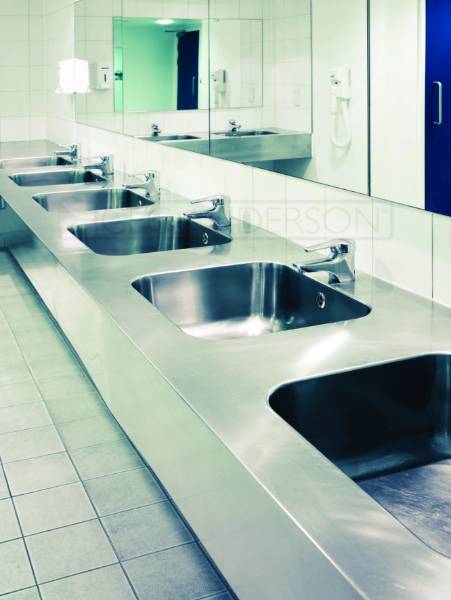

Grosvenor House Hotel

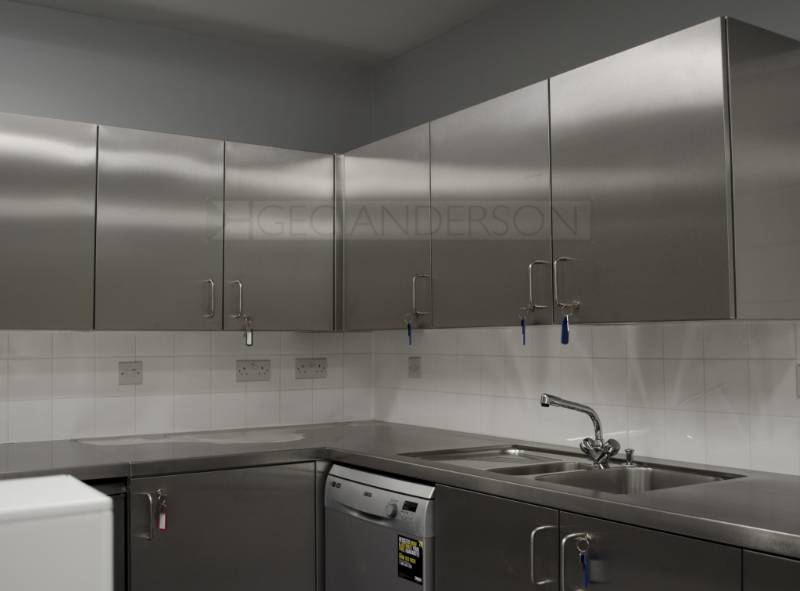

Haggerston Community Centre
Her Majesty's Service

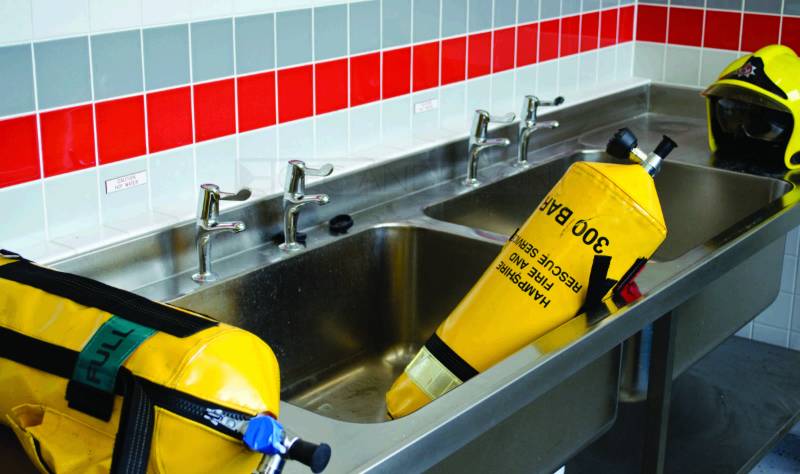

Industrial Strength Stainless Steel Sinks For State Of The Art Fire Station

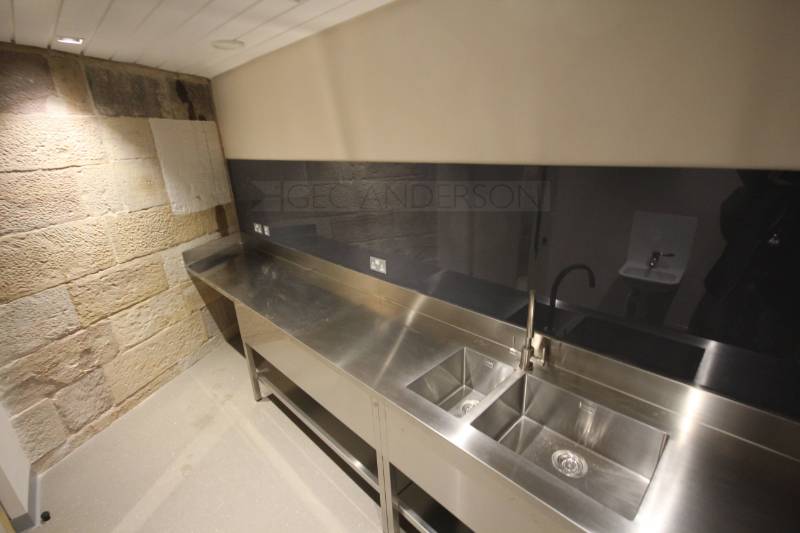

Lancaster Castle

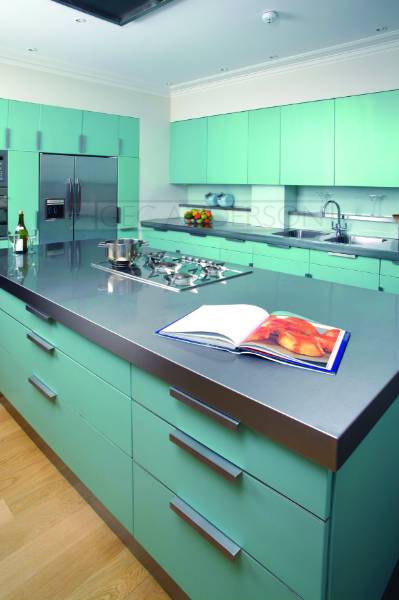

Little Venice Kitchen

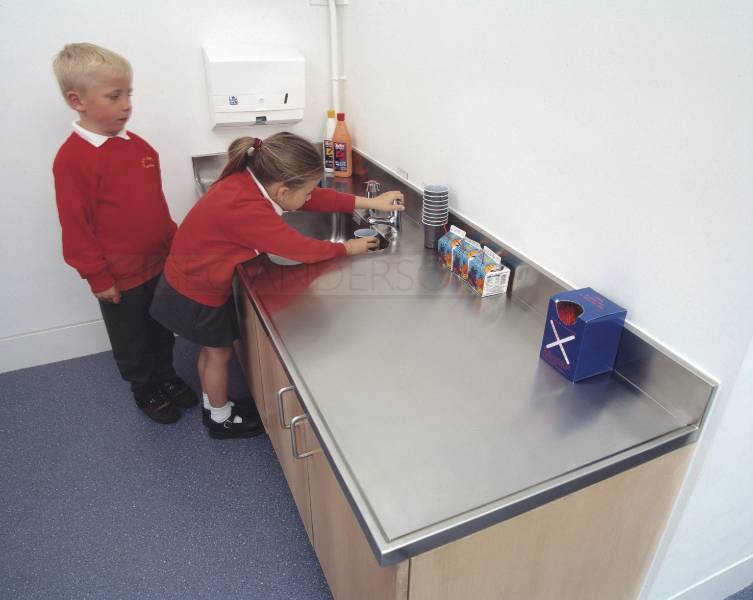

Llwyncrwyn Primary School

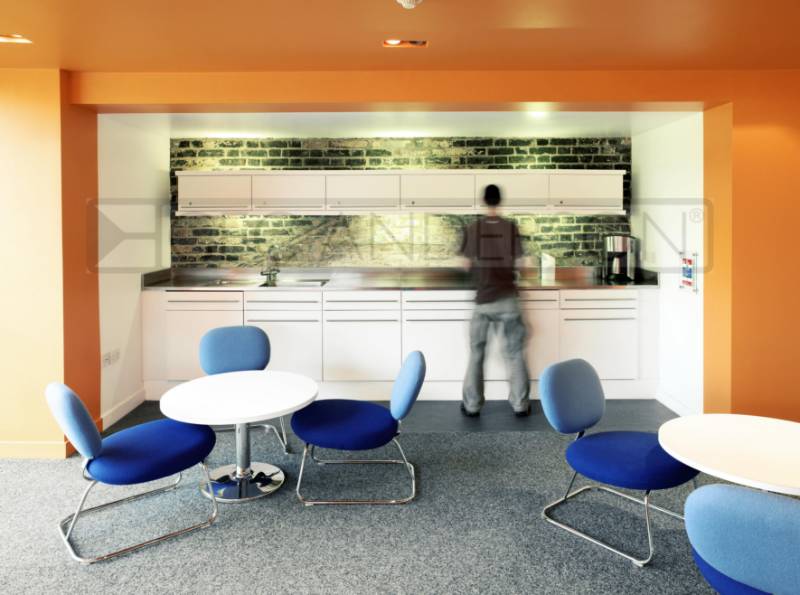

Lock Keepers Cottage

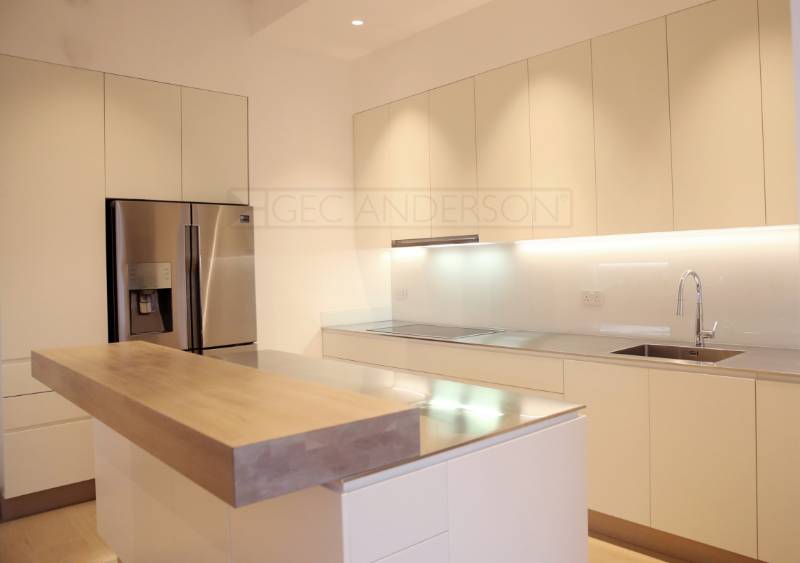

Maida Vale House

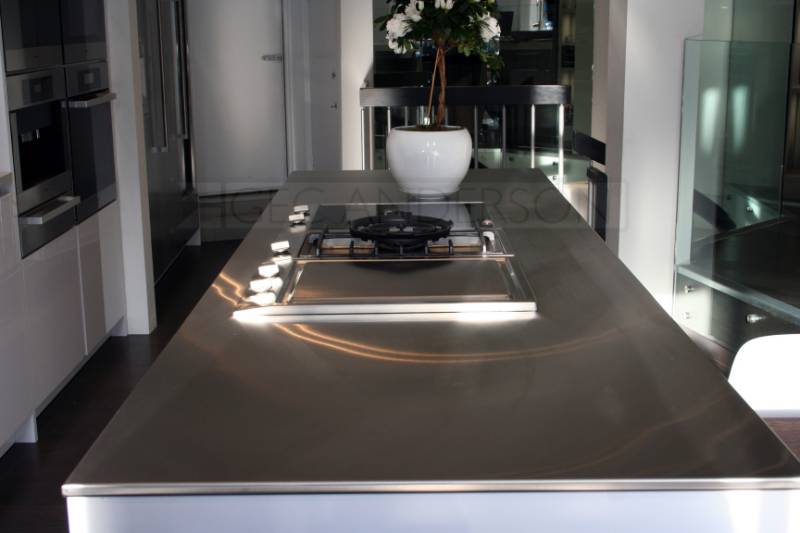

Making A Show At Connaught Kitchens
Milton Keynes Hospital Choose GEC Anderson for Ward Kitchens

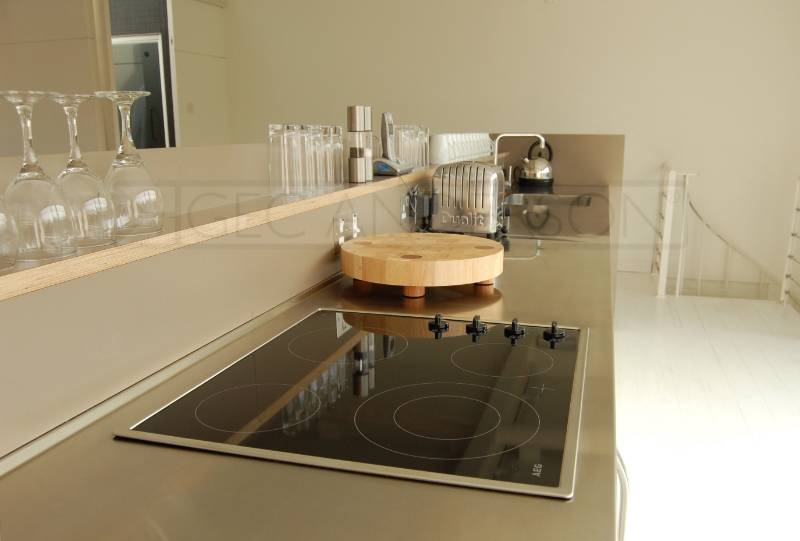

Model Solution In Stainless Steel Worktops
Museum Of Childhood, Bethnal Green

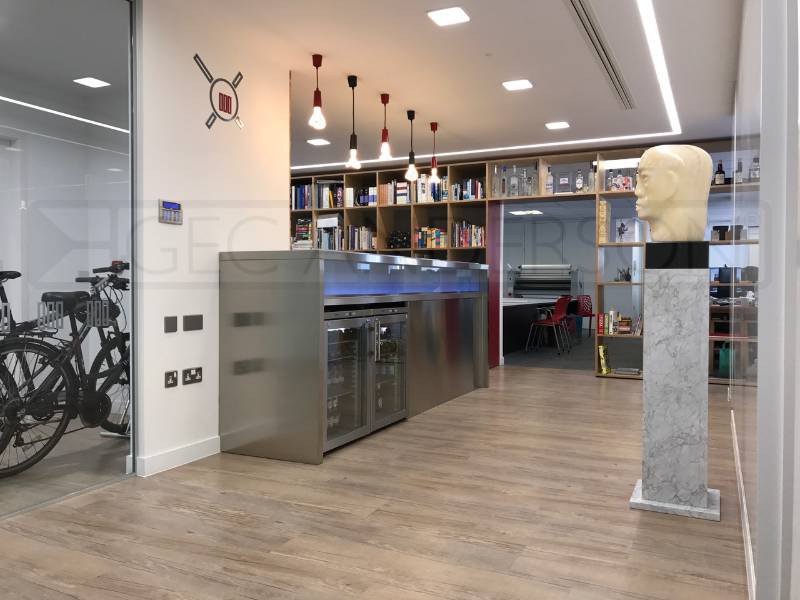

New Reception Desk For Mission Communications

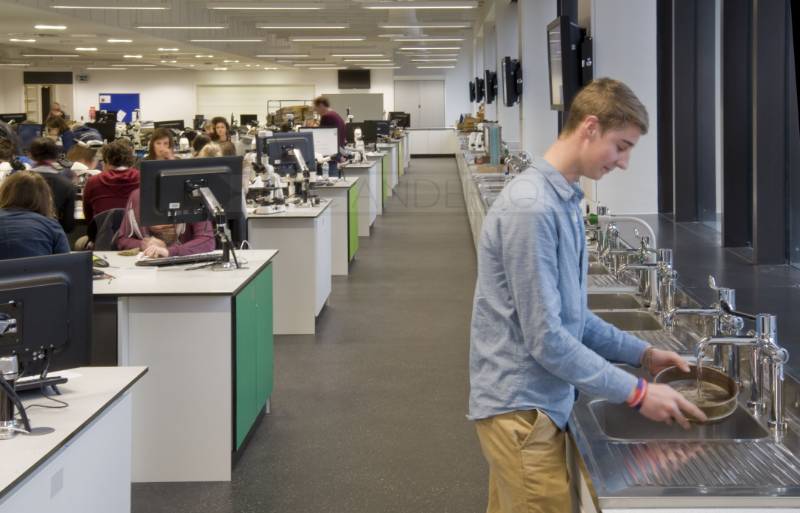

New Teaching Lab Sinks Make The Grade

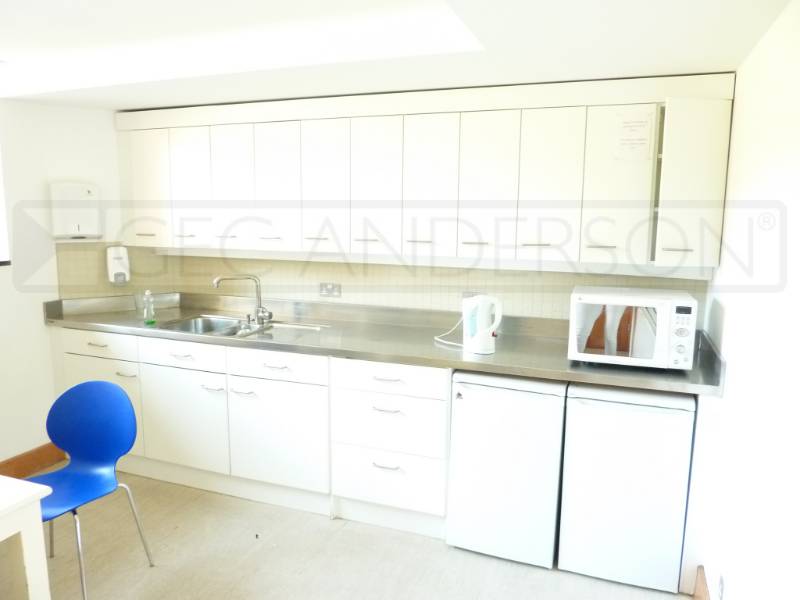

North Court, Jesus College, Cambridge

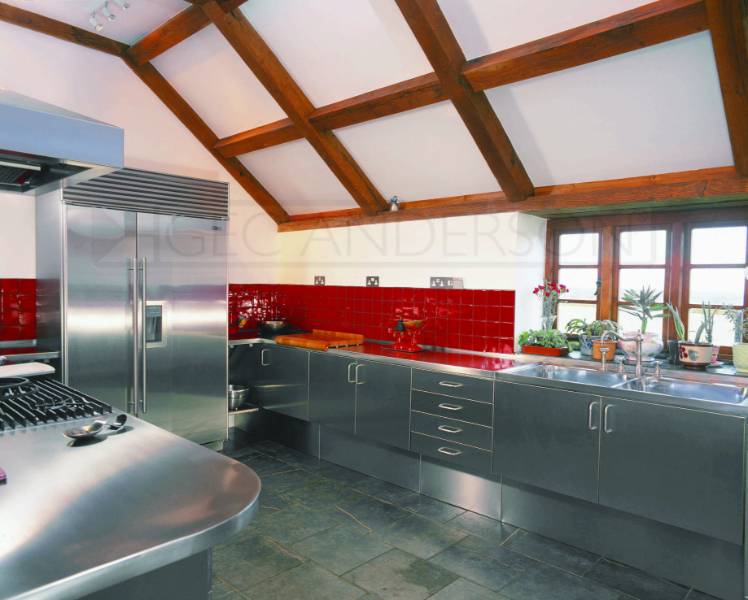

Okeford Crafts

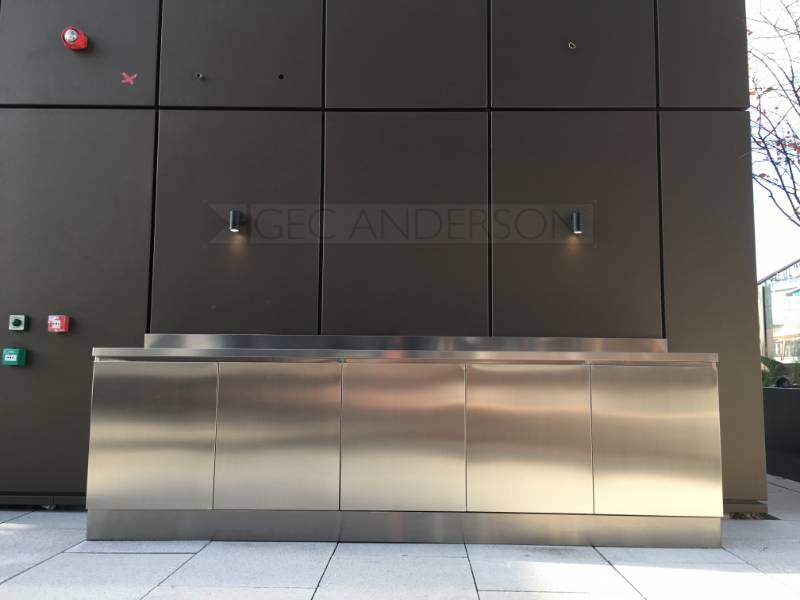

Outdoor Kitchen To Manchester’s Angel Gardens

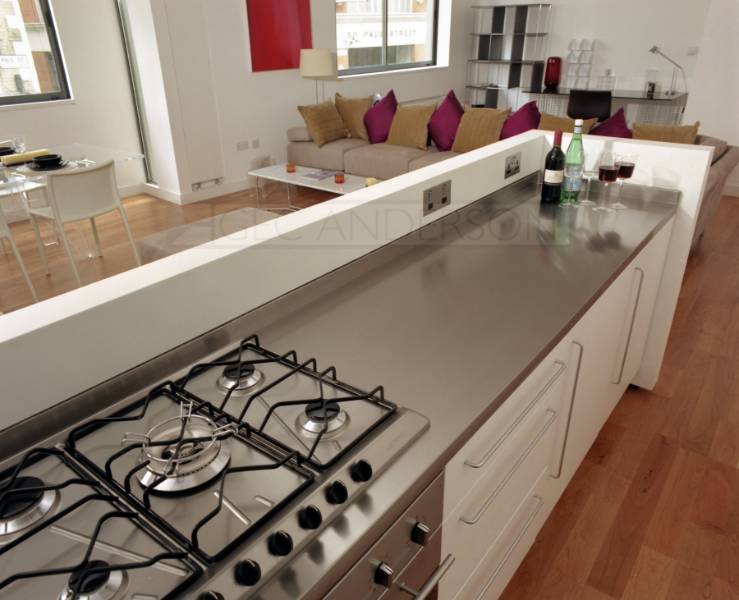

Paul Street Apartment

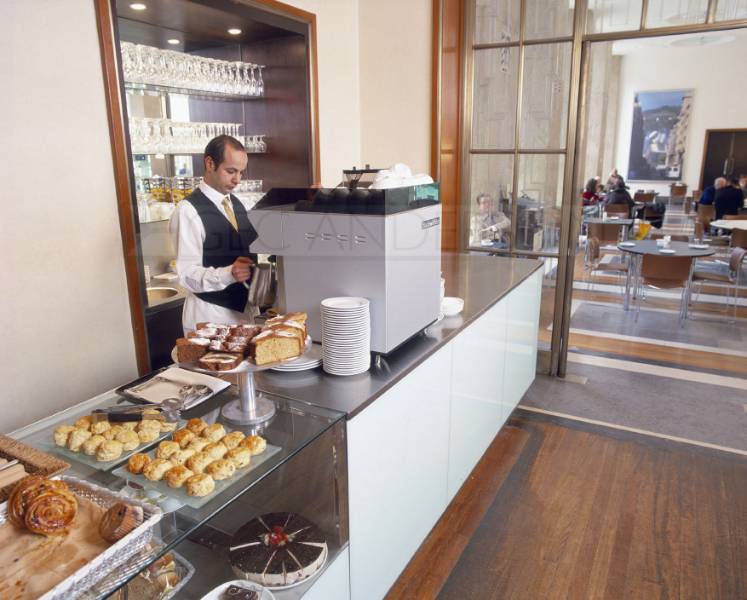

RIBA Cafe

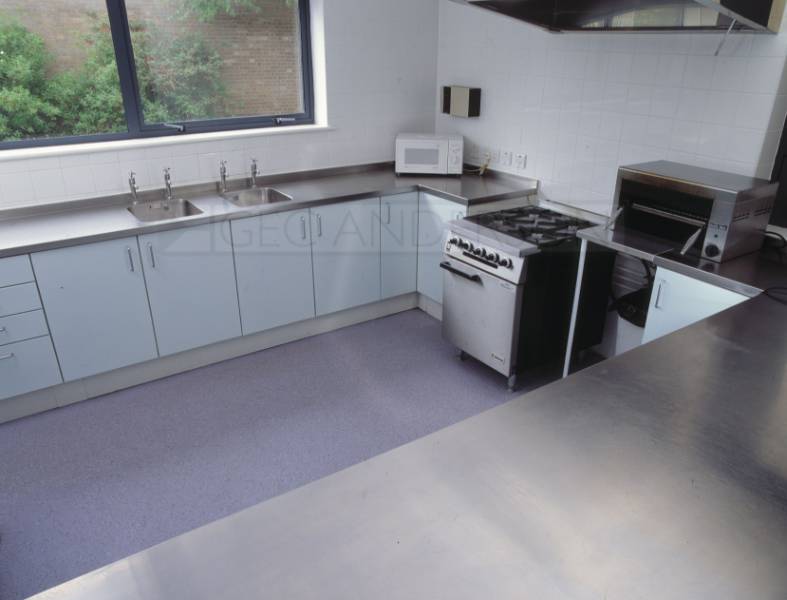

Roath Fire Station, Cardiff
Sony Computer Entertainment, London
Spike Island

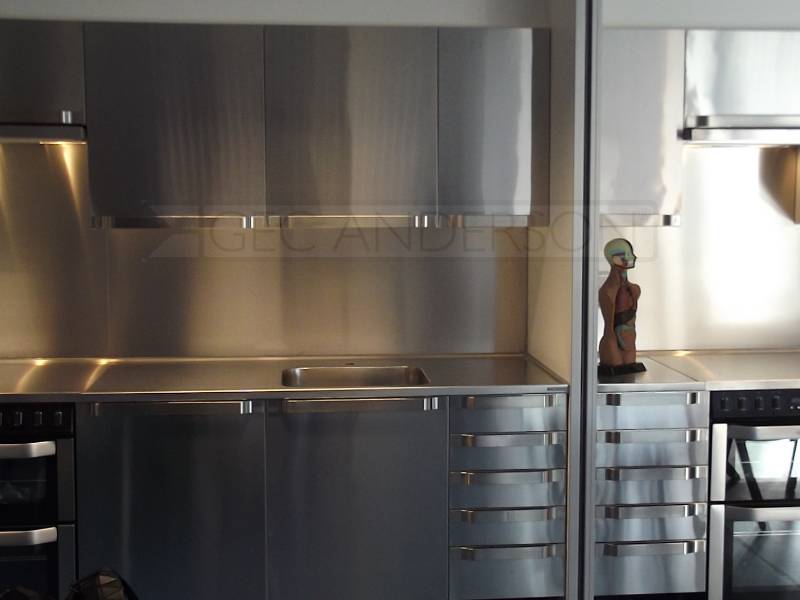

Stainless Steel Proves A Popular Choice For Fitzjohn's Primary School

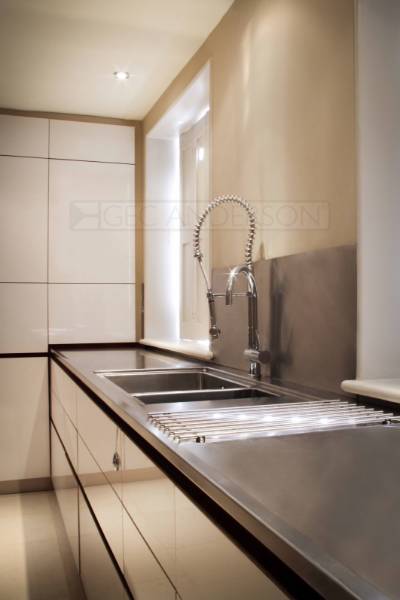

Stainless Steel Provides Stunning Contrast To Georgian Surroundings
Stainless Steel Shines At The Beaney Centre

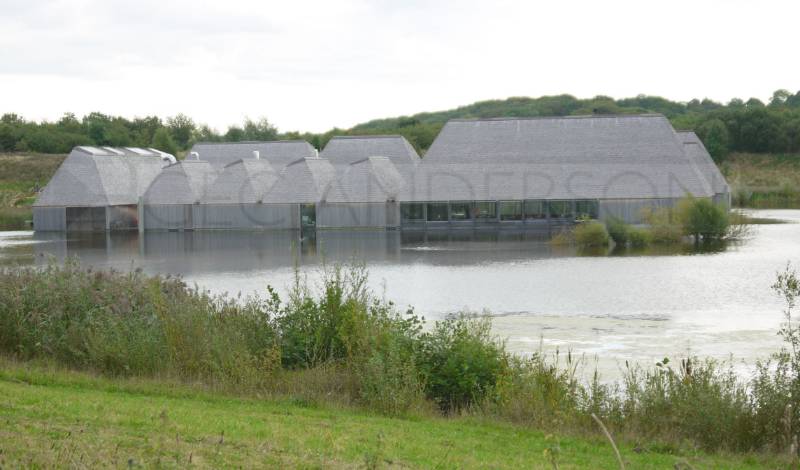

Stainless Steel Sinktops For Brockholes Nature Reserve

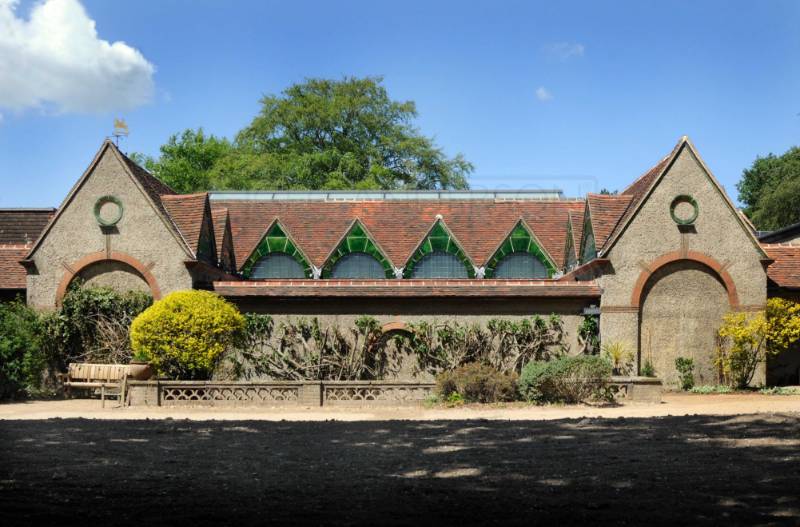

Stainless Steel Sinktops Provide Design Flexibility At Art Gallery Learning Studio

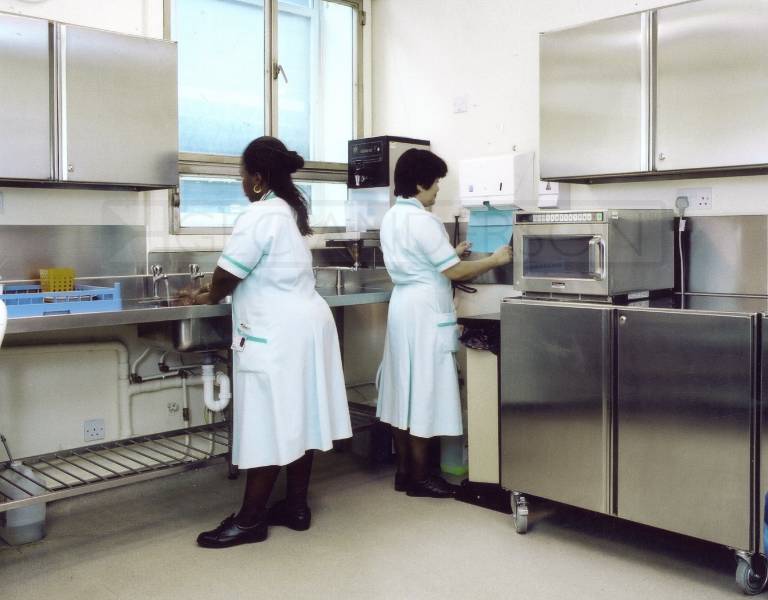

St Barts, Ward Kitchen

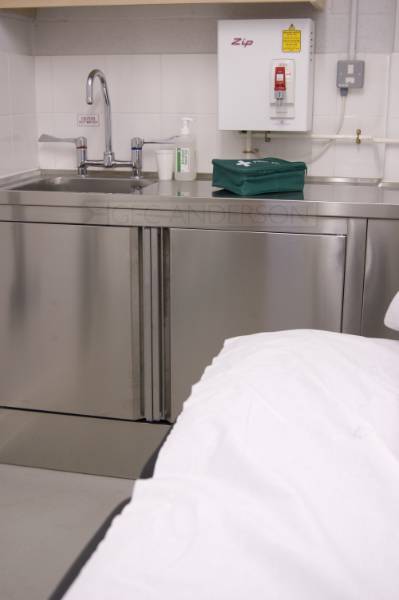

St Michael's RC High School, Garston

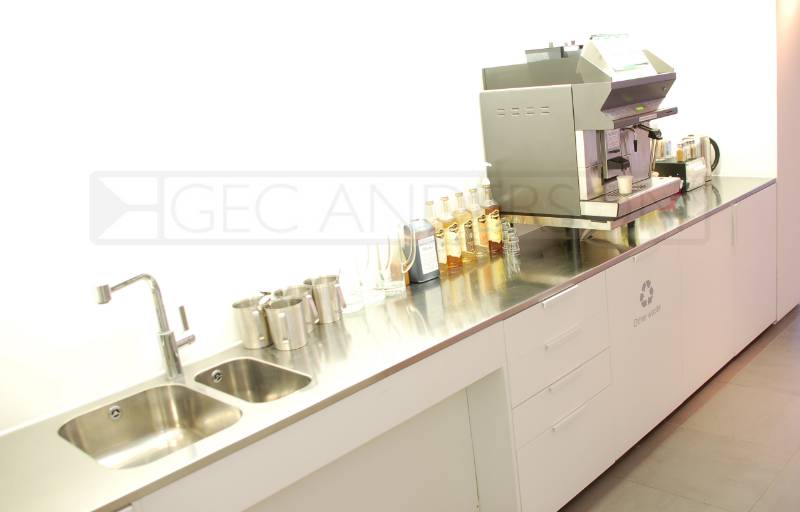

Steelcase Worklife Building

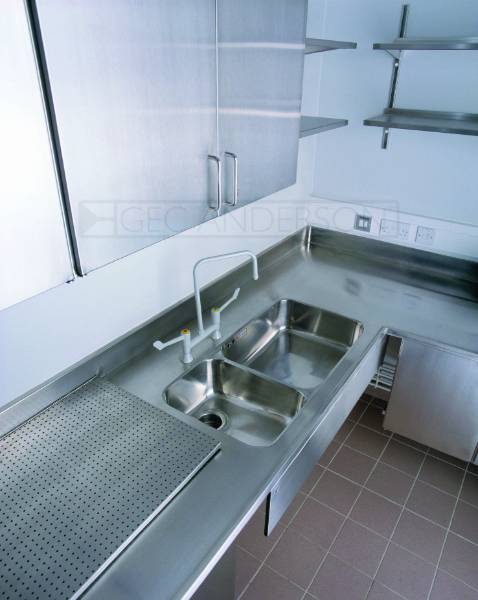

Surrey Police Headquarters

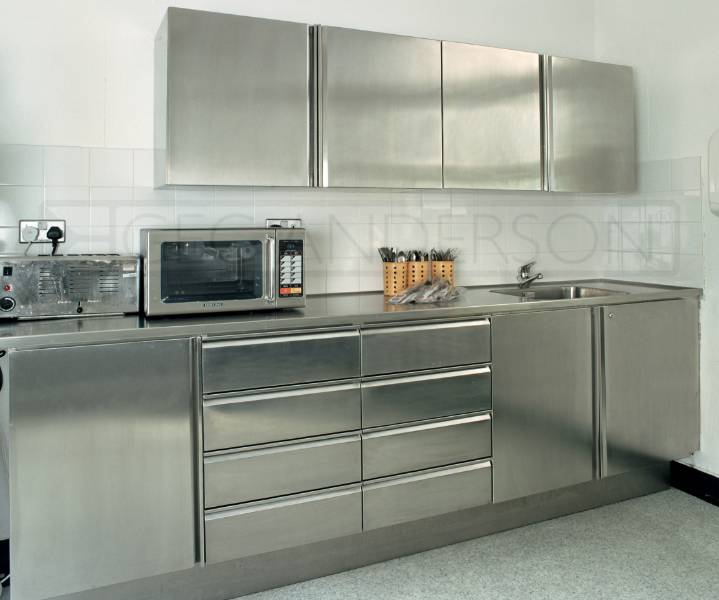

Theatre Upgrade 1
The Glass Building, Camden

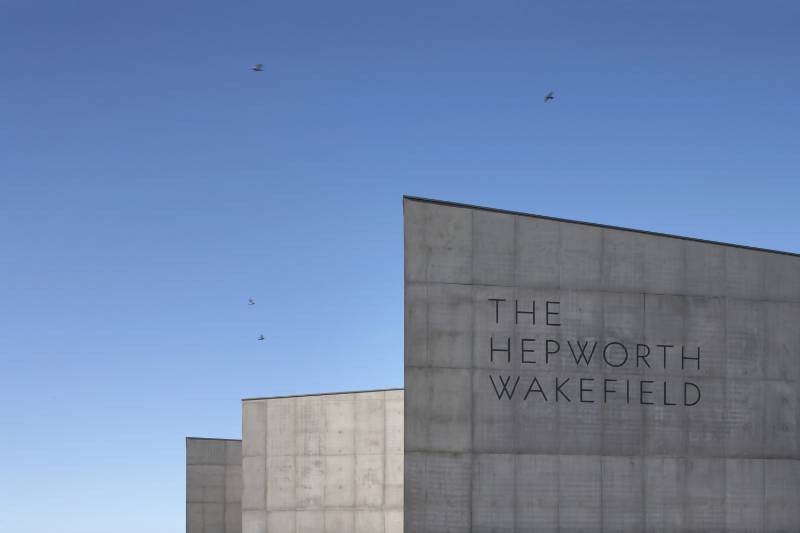

The Hepworth Gallery - Cafe and Education Areas of this Prestigious Gallery Include Stainless Steel Sinks, Worktops, Panels and Cabinet from GEC Anderson Limited

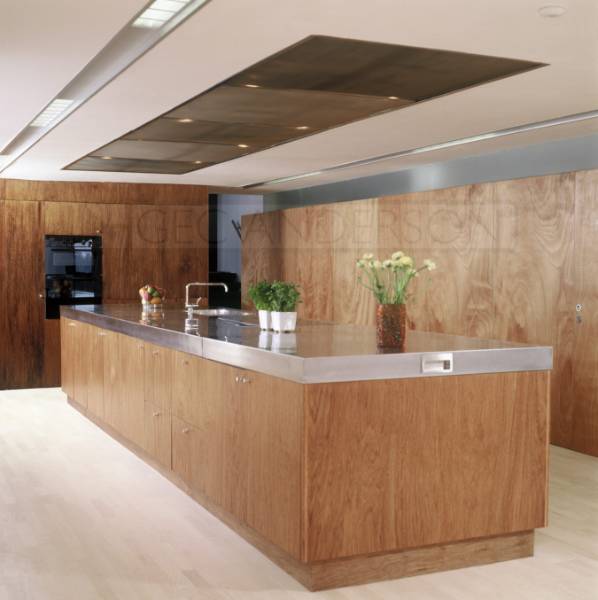

The Long Barn, Bedfordshire

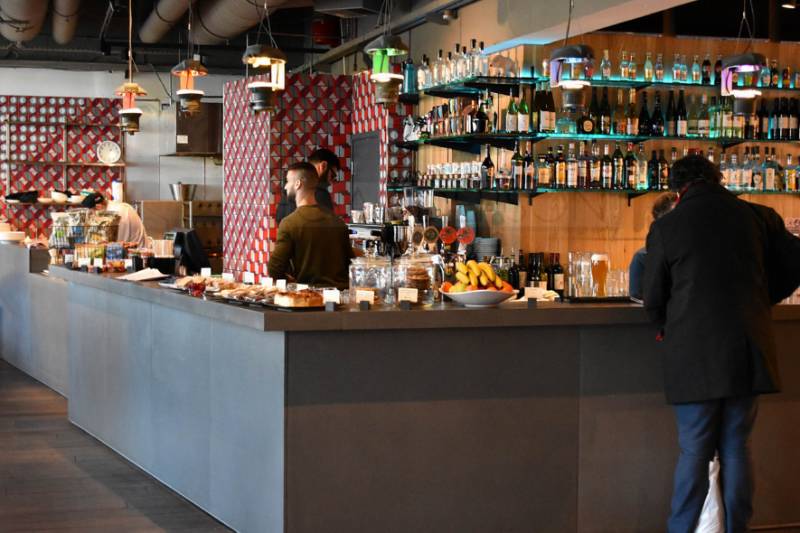

The Lyric, Hammersmith

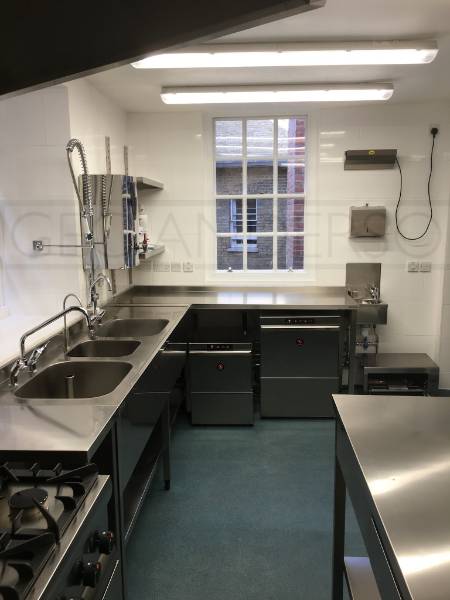

The Old Deanery, London

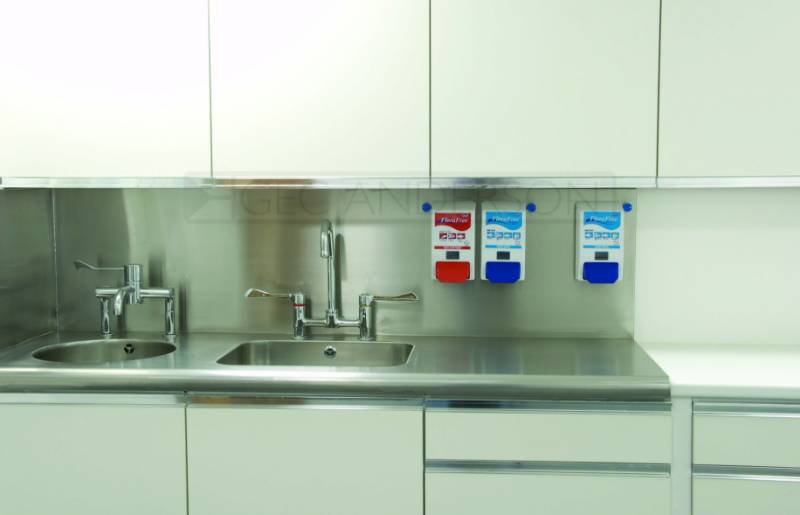

Tooting Medical Centre

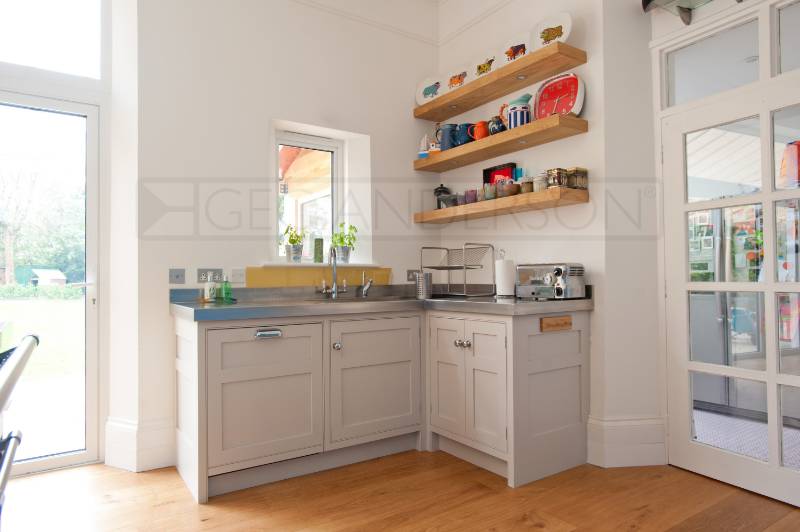

Top Grades To GEC Anderson In Cookery School Kitchen

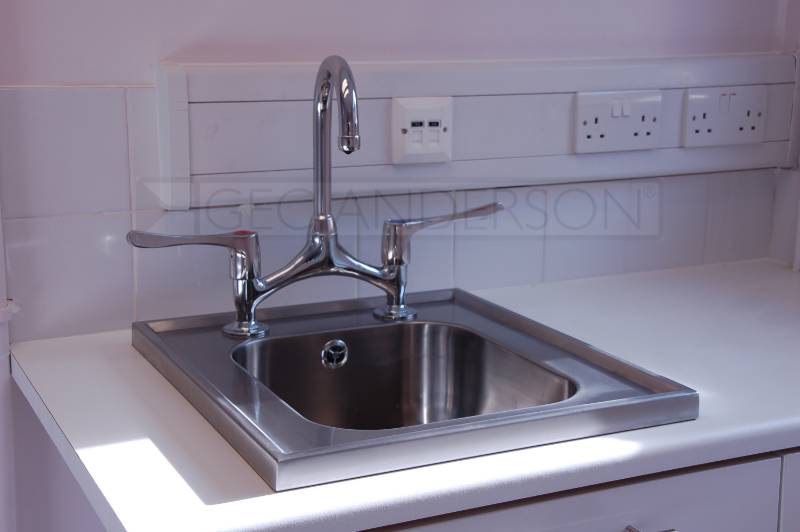

Top Vets Pick GEC Anderson Sinktops For New Pet Clinic

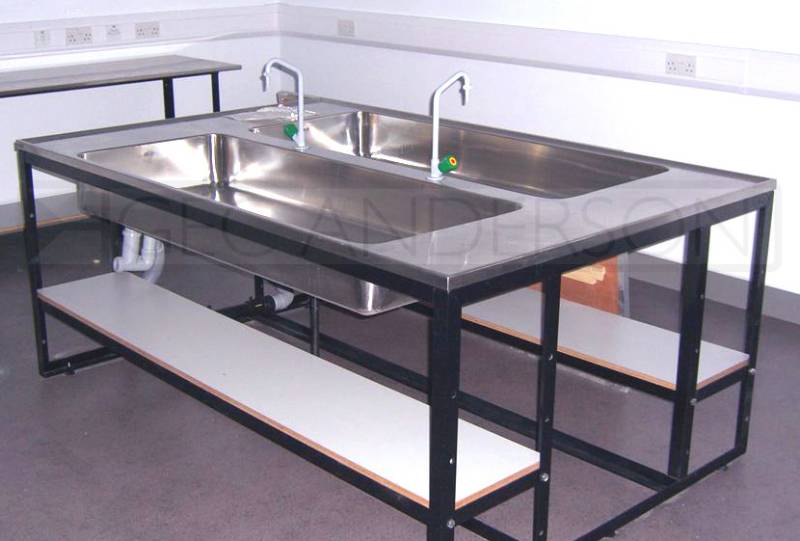

Warwick Building, University Of Ulster

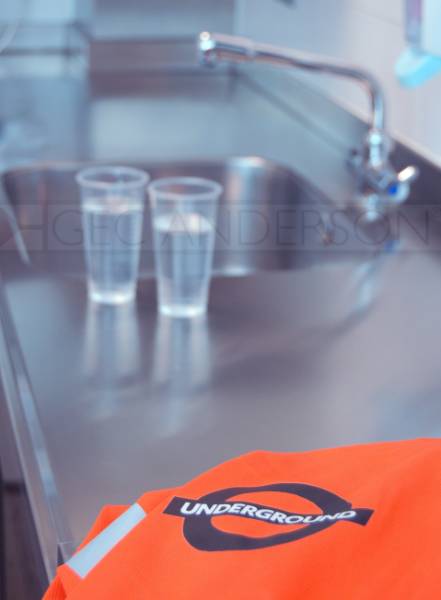

Wembley Park Underground Station
