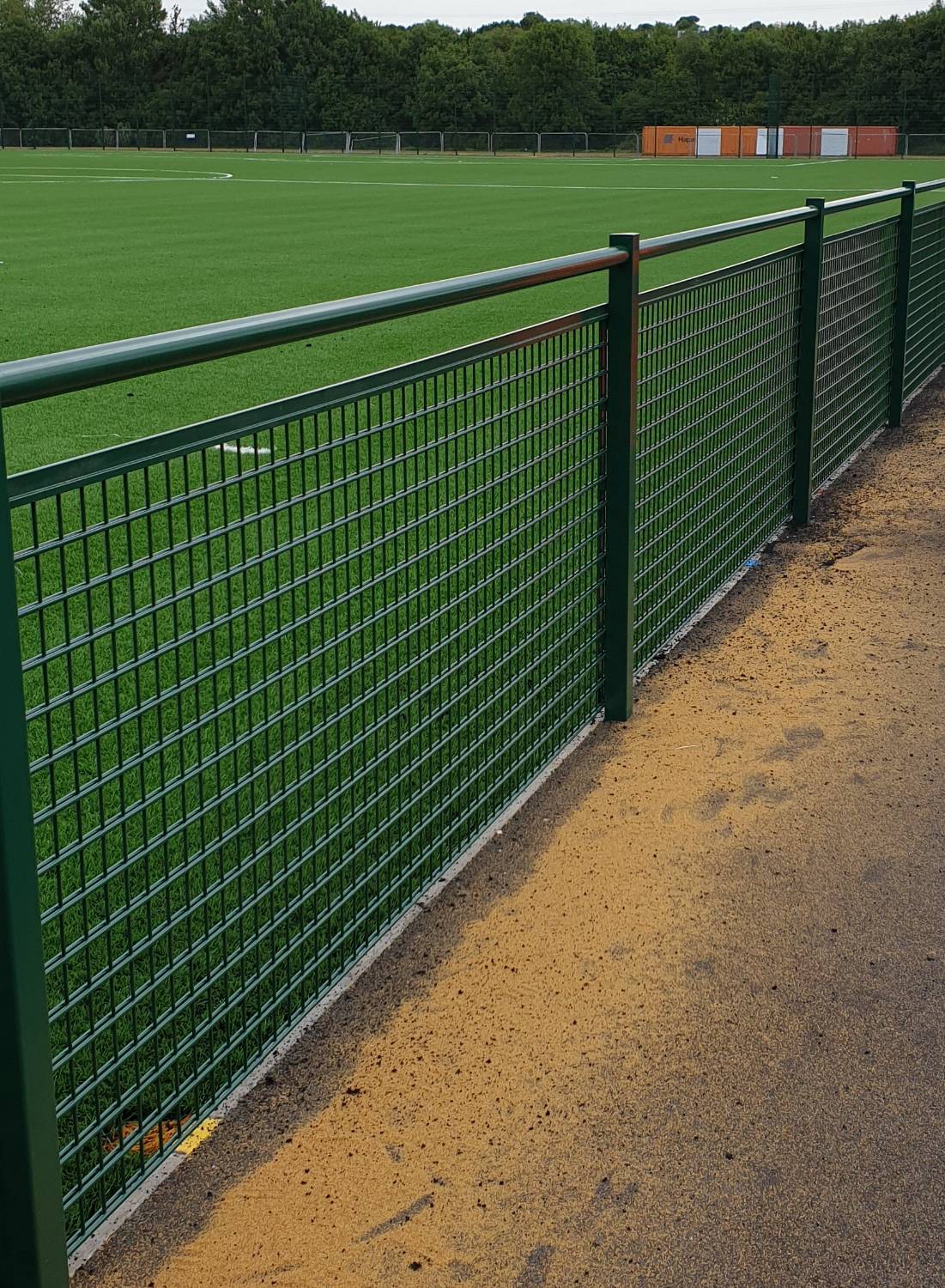

Spectator Rail Pitch Perimeter Demarcation System
Verified by manufacturer 6 days ago
Spectator Rail is a tubular steel pitch perimeter system designed to improve player and spectator safety, providing controlled demarcation around sports pitches in line with FA guidance.
Application
Spectator Rail is suitable for:
- Football pitches (Non-League and grassroots)
- Rugby pitches
- Multi-use games areas
- Training facilities
- Skate parks
- Community sports grounds
- Areas requiring spectator demarcation
Description
Spectator Rail is a tubular steel perimeter demarcation system designed to create a defined spectator boundary around sports pitches.
Manufactured from robust steel tubular sections with secure horizontal rail fixings, the system improves safety by reducing the risk of spectator encroachment onto the playing surface while maintaining clear sightlines for viewing.
The rail can be supplied open or infilled with Zaun mesh systems including Duo Sport or Duo Super Rebound. Where mesh infill is used, a safety capping strip is incorporated to minimise finger trap risks.
Gates of various widths can be integrated into the perimeter to allow maintenance and equipment access.
The system is designed to align with current FA ground grading guidance for applicable levels of football.
Key Features and Benefits
- Designed to provide pitch-side demarcation
- Improves player and spectator safety
- Helps prevent unauthorised pitch access
- Maintains clear sightlines for viewing
- Manufactured from strong tubular steel sections
- Optional mesh infill panels (Duo Sport / Duo Super Rebound)
- Safety capping strip for finger protection
- Gates available to suit access requirements
- Suitable for advertising and sponsorship boards
- Available in-ground, base-plated or wall-mounted
- Designed to align with FA ground grading guidance
General information
Color | Green Black Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Width | 2510 mm |
Height | 1100 mm 1200 mm |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Metal post and rail fencing systems
Classification data | |
Posts | 60 x 60 mm rectangular hollow section (RHS) posts. Guidance for specification option: Spaced at 2525 mm centres. 80 x 40 mm rectangular hollow section (RHS) posts. Guidance for specification option: Spaced at 2525 mm centres. 100 x 50 mm rectangular hollow section (RHS) posts. Guidance for specification option: Spaced at 2525 mm centres. 120 x 60 mm rectangular hollow section (RHS) posts. Guidance for specification option: Spaced at 2525 mm centres. Manufacturer guidanceDependent on height. |
System accessories | Not required. Pedestrian gate. Guidance for specification option: Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements. Vehicular gate. Guidance for specification option: Double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements. |
Height | 1008 mm. 2030 mm. 2430 mm. 3030 mm. 4070 mm. 4470 mm. 5070 mm. Manufacturer guidanceFence heights above 3m are made using 2 or more panels. |
Applied finish | Galvanized and polyester powder coated. |
Gates | 50 x 50 mm RHS, with Zaun Duo8 mesh welded inside the frame, slide latch, rubber bump stop, two gate posts. Guidance for specification option: Vehicular access also supplied with drop bolts. |
Standards | To BS1722, ISO 12944. |
Width | 2510 mm. |
Mesh size | 66.6 x 50 mm. Guidance for specification option: Lower. 200 x 50 mm. Guidance for specification option: Above. Manufacturer guidanceFull height rebound also available on request. |
WireDiameter | 5 mm / 2 x 6 mm. Guidance for specification option: Super rebound 6 - Vertical x Horizontal. 6 mm / 2 x 8 mm. Guidance for specification option: Super rebound 8 - Vertical x Horizontal. |
Fixings | Anti tamper security fixings. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel |
Recyclability | 100% recyclable at End of Life |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 80 % |
Expected Life | 20 year |
