Southdown Multi - Clay Facing Brick

Verified by manufacturer 5 months ago

Forterra Building Products Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • DoP

    DoP

    Certificate type

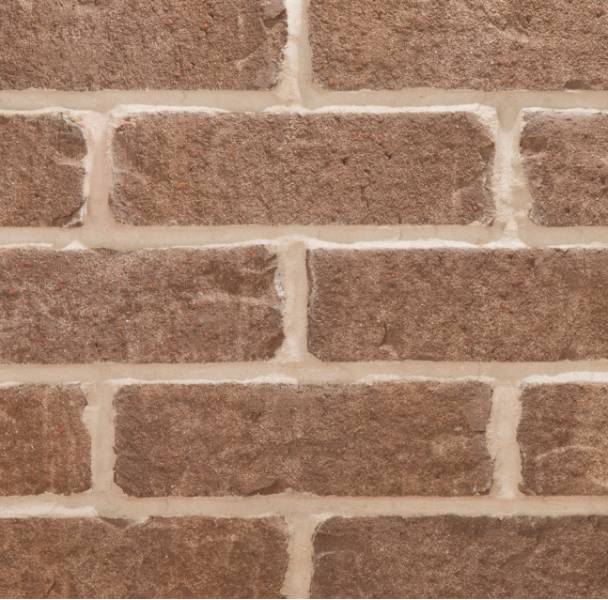

A tumbled red clay brick for residential applications.

Jump to:
+44 (0)1604 707600 Website

Application

For more product information please follow the link https://www.forterra.co.uk/product/southdown-multi-brick/

Description

With a history dating back over 150 years, Butterley bricks can be found in buildings as diverse St Pancras station and modern housing developments. Forterra manufacture it in a wealth of red, buff, yellow, brown, blue and grey colours, and in several textures: smooth, with a consistent, uniform character; light textured, which is modern and uniform, with an indented or printed finish; heavy textured, with a harder and rougher texture for a more rustic brick with a consistent finish; and tumbled, a distressed and irregular shape associated with reclaimed bricks.

General information

Color

Red

Finish

Rolled

Material

Clay

Shape

Rectangle

Length

215 mm

Width

102.5 mm

Height

65 mm

Uniclass

Pr_20_93_52_15 Clay bricksPrimary
Pr_25_71_14_29 Faced insulating wall panels
Pr_20_93_52_16 Clay brick slips

CAWS

M21/20 External wall insulation system . . . . . .

F10/5 Facing brickwork

F10/110 Clay facing brickwork

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Work size (length x width x height)

215 x 102.5 x 65 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

75 N/mm².

Guidance for specification option:

Equal to or more than 75 N/mm².

Category

II.

Durability designation

F2.

Water absorption

Equal to or less than 7%.

Configuration

Vertically perforated, 24–29% voids.

Thermal conductivity

0.69 W/m.K [λ10,dry].

Water vapour permeability

50/100 µ.

Bond strength

Fixed 0.15 N/mm².

Reaction to fire

Class A1 to BS EN 13501-1.

Active soluble salts

S2.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

Southdown Multi UKCA Certificate

DoP

DoP

Southdown Multi DoP Certificate

Literature

Forterra Brick Guide

Forterra Brick Guide

Southdown Multi Brick Datasheet

Southdown Multi Brick Datasheet
