Sopravap Stick Alu S 16

Sopravap Stick Alu S 16

Soprema UK Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Styrene-butadiene-styrene (SBS) modified bitumen self-adhesive vapour control layer membrane with composite aluminium reinforcement.

Jump to:
+44 (0)330 058 0668 www.soprema.co.uk

Application

For use as a self-adhesive vapour control layer for steel, timber and concrete decks.

Roll sizes of 14 x 1.08 m or 20 x 1.08 m available - consult manufacturer for details.

Description

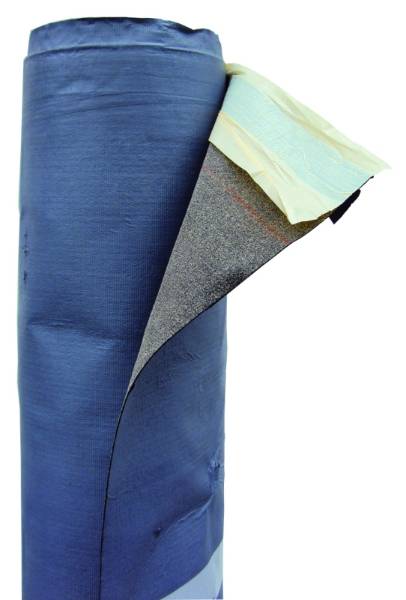

A self-adhesive styrene-butadiene-styrene (SBS) modified bitumen membrane with an aluminium foil and non-woven polyester reinforcement. The upper surface has a sand finish and the lower surface is protected by a silicone release film.

The substrate should be primed with Elastocol 503 or Elastocol 600 - consult manufacturer for information.

Features and benefits:

  • Self-adhesive.
  • Cold applied.
  • Flame-free application.
  • Laid directly on to the deck.
  • CE marked to BS EN 13970.

Applications:

For use as a self-adhesive vapour control layer for steel, timber and concrete decks.

Roll sizes of 14 x 1.08 m or 20 x 1.08 m available - consult manufacturer for details.

General information

Finish

Upper side: Sand

Lower side: Silicone release film

Material

SBS (styrene-butadiene-styrene) modified bitumen with composite glass grid/ aluminium reinforcement

Uniclass 2015

Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary

CAWS

J41/10 Built-up reinforced bitumen membrane warm deck roof covering

J41/12 Built-up reinforced bitumen membrane cold deck roof covering

J41/120 Built-up reinforced bitumen membrane inverted roof covering

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/395 Air and vapour control layer

Product range

Reinforced bitumen membranes

Specification data - Reinforced bitumen roofing sheets

Product Reference

Sopravap Stick Alu S 16

Standard product features

Material:

SBS (styrene-butadiene-styrene) modified bitumen with composite glass grid/ aluminium reinforcement.

Finish:

  • Upper side: Sand.
  • Lower side: Silicone release film.

Thickness:

1.6 mm (±5%).

Technical properties:

  • Reaction to fire: Class E.
  • Watertightness: Conforms.
  • Tensile force (to BS EN 12311-1): 900 N/ 50 mm.
  • Resistance to impact: 150 mm.
  • Shear resistance of joints: ≥500 N/ 50 mm.
  • Elongation at maximum tensile force (to BS EN 12311-1): 3%.
  • Resistance to tearing (nail shank, to BS EN 12310-1): 200 N.
  • Flexibility at low temperature (to BS EN 1109): -20°C.
  • Flow resistance at elevated temperature (to BS EN 1110): 100°C.
  • Dangerous substances: Complies (does not contain asbestos or tar constituents).
