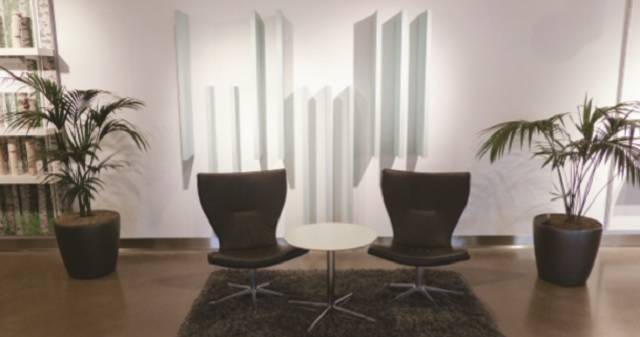

Solo™ Baffle Wall
Application

Suitable for applications where a wall-to-wall ceiling is not possible or desired.

Description

Acoustic wall panel system for use as a vertical absorber (unframed).

Features and benefits:

  • Provides design and colour freedom.
  • Easy attachment to the wall.
  • Edges are straight-cut and painted.
  • Easy to clean.
  • Fully recyclable.
  • Consists of Ecophon Solo™ Baffle/ Anchor and Connect™ Baffle wall fixing, with an approximate weight of 1–2 kg/m.
  • CE marked to EN 13964.

General information

Finish

Material

High-density glass wool

Shape

Rectangular

Size

1200 x 200 mm

1200 x 300 mm

1200 x 600 mm

1800 x 200 mm

1800 x 300 mm

Show more

WarrantyDescription

Uniclass 2015

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/160 Proprietary

K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems Enhanced data

Panelling

-

Type

High-density glass wool panels.

Surface material

Akutex FT with painted edges.

Surface finish

The surface allows almost 100% of the sound energy to penetrate into and be absorbed by the glass wool

The surface allows almost 100% of the sound energy to penetrate into and be absorbed by the glass wool

Fasteners

Connect™ Baffle wall fixing

Product Reference

Solo™ Baffle Wall

Ceiling support

Connect™ Adjustable wire hanger.

Suspended using Solo™ Baffle Hook.

Connect™ Baffle profile.

Direct using Solo™ Baffle Anchor.

Connect™ grid system.

Suspended using Solo™ Baffle Hook.

Support fasteners

Solo™ Baffle Anchor or Solo™ Baffle Hook.

Ceiling units

High-density glass wool baffles.

Panel size (l x w)

1200 x 200 mm.

1200 x 300 mm.

1200 x 600 mm.

1800 x 200 mm.

1800 x 300 mm.

Show more

Thickness

40 mm.

Colour/ Finish

Cloudy Day.

Nearest NCS colour sample S 1500-N, 62% light reflectance.

Dark Diamond.

Nearest NCS colour sample S 9000-N, 4% light reflectance.

Eucalyptus Leaf.

Nearest NCS colour sample S 5010-B30G.

Fresh Clover.

Nearest NCS colour sample: S 3020-G40Y Light reflectance: 35%.

Goji Berry.

Nearest NCS colour sample S 3030-Y80R.

Show more

Indoor climate

Recommended by the Swedish Asthma and Allergy Association. Certified as A+ by French VOC. Emission classification of building materials: M1. Achieves Nordic ‘Swan’ eco-label. Certified in accordance with Indoor Climate Labelling.

Moisture resistance

The tiles withstand a permanent ambient relative humidity (RH) of up to 70% at 25°C without sagging, warping or delaminating (EN 13964).

Fire safety

To BS EN 13501-1, Class A2-s1, d0.

Sound absorption

To EN ISO 354:2003.

Cleaning

The ceiling system can withstand daily dusting and vacuum cleaning, and weekly wet-wiping.

Environmental information

Contains Red List materials

All Ecophon products are free from substances of very high concern (SVHC) and any compound on the list of REACH in the EU.

-

Country of material origin

Denmark

Embodied carbon

8.07 kg CO₂ equiv/m², in conformity with ISO 14025/ EN 15804

Recycled content

56
