Soft walk - Underlay

Verified by manufacturer 6 months ago

Interfloor Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

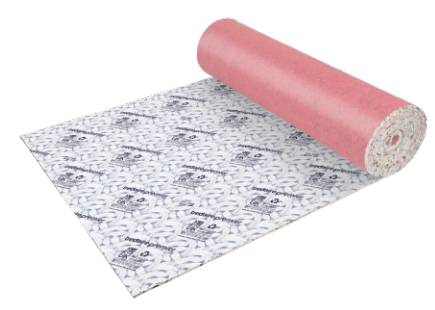

Polyurethane rebond underlay.

Jump to:
+44 (0)1706 238820 Website

Application

Suitable for stretch-fit installation of carpets.

Description

Polyurethane rebond underlay suitable for stretch fit installation of carpet.


Features and benefits:


  • Polyurethane rebond.
  • End use classification (to BS 5808): L/U, luxury use.
  • Resistance to cracking (not greater than 50 mm).
  • Meets low VOC emission criteria.
  • Hot metal nut test (tested in Interfloor laboratory) low radius of effects of ignition.


General information

Color

Red

Finish

Other

Material

Polyurethane

Shape

Rectangle

Length

11000 mm

Width

1370 mm

Height

9 mm

Warranty description

Lifetime

Uniclass

Pr_35_57_11_11 Cellular plastics underlaysPrimary

CAWS

M50/170 Carpeting

M50/25 Carpeting

Specification data - Cellular plastics underlays

Standard

To BS 5808 and BS EN 14499.

Use class

L/U.

Thickness (minimum)

9 mm.

Density

110 kg/m³.

Breaking strength

>70 N (length), >40 N (width).

Colour

Red facing reinforced with spunbonded polyester.

Thermal resistance

2.69 togs.

Impact sound reduction

41 dB.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

28.03 kg CO₂ eq/unit

Recyclability

At the end of the underlays useful life, it can be 100% recycled

EPD

Third party certifications

EPD

EPD

GENERAL-PURPOSE POLYURETHANE UNDERLAY

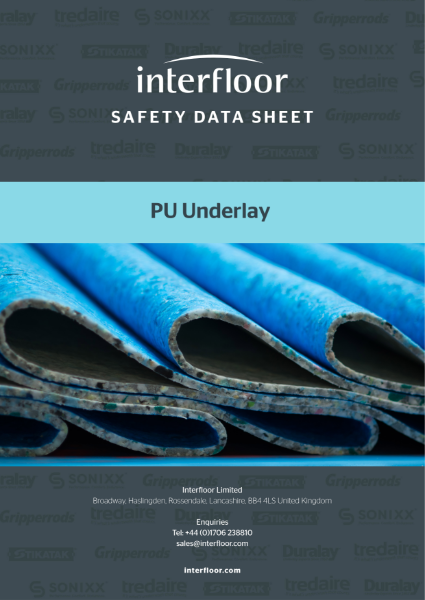

Literature

PU Underlay

PU Underlay

Case studies

Marina Bay Sands, Singapore (60,000m2 Durafit 500, 34,000m2, New Supreme, 57,000m2 Softwalk and 32,000m2 FR7).

Marina Bay Sands, Singapore (60,000m2 Durafit 500, 34,000m2, New Supreme, 57,000m2 Softwalk and 32,000m2 FR7).
