FR7 - Underlay

Verified by manufacturer 6 months ago

Interfloor Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

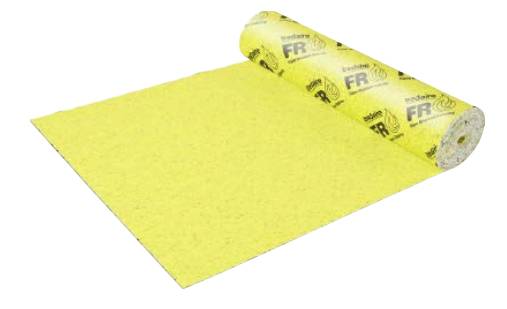

Polyurethane rebond underlay.

Jump to:
+44 (0)1706 238820 Website

Application

Suitable for flame retardant applications.

Suitable for the stretch-fit and double-stick installation of carpets

Description

Polyurethane rebond underlay suitable for flame retardant applications.


Features and benefits:


  • Polyurethane rebond.
  • End use classification (to BS 5808): HC/U, heavy contract use.
  • Meets low VOC emission criteria.
  • Resistance to cracking (not greater than 50 mm).


General information

Color

Yellow

Material

Polyurethane

Shape

Rectangle

Length

11000 mm

Width

1370 mm

Height

7 mm

Uniclass

Pr_35_57_11_11 Cellular plastics underlaysPrimary

Specification data - Cellular plastics underlays

Standard

To BS 5808 and BS EN 14499.

Use class

HC/U.

Thickness (minimum)

7 mm.

Recycled content

95%.

Density

145 kg/m³.

Breaking strength

>90 N (length), >50 N (width).

Odour

No objectionable odour.

Colour

Yellow with reinforcing mesh.

Thermal resistance

1.99 togs.

Impact sound reduction

34 dB.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

At the end of the underlays useful life it can be 100% recycled.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

EPD

Third party certifications

EPD

EPD

GENERAL-PURPOSE POLYURETHANE UNDERLAY

Literature

PU Underlay

PU Underlay

Case studies

Marina Bay Sands, Singapore (60,000m2 Durafit 500, 34,000m2, New Supreme, 57,000m2 Softwalk and 32,000m2 FR7).

Marina Bay Sands, Singapore (60,000m2 Durafit 500, 34,000m2, New Supreme, 57,000m2 Softwalk and 32,000m2 FR7).
