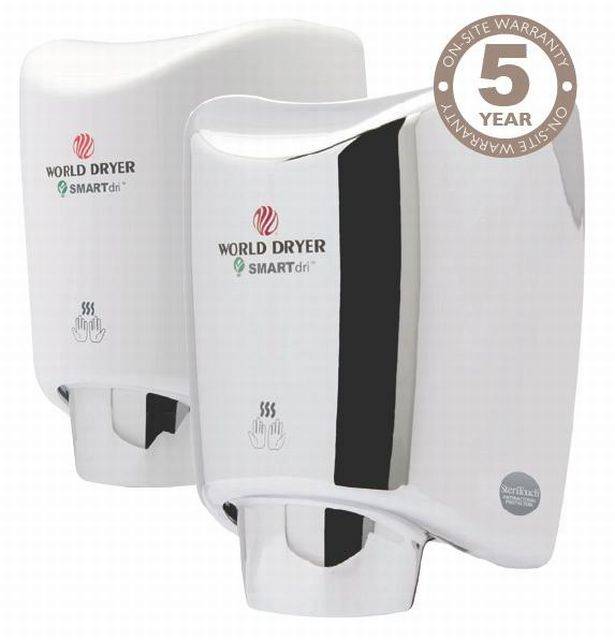

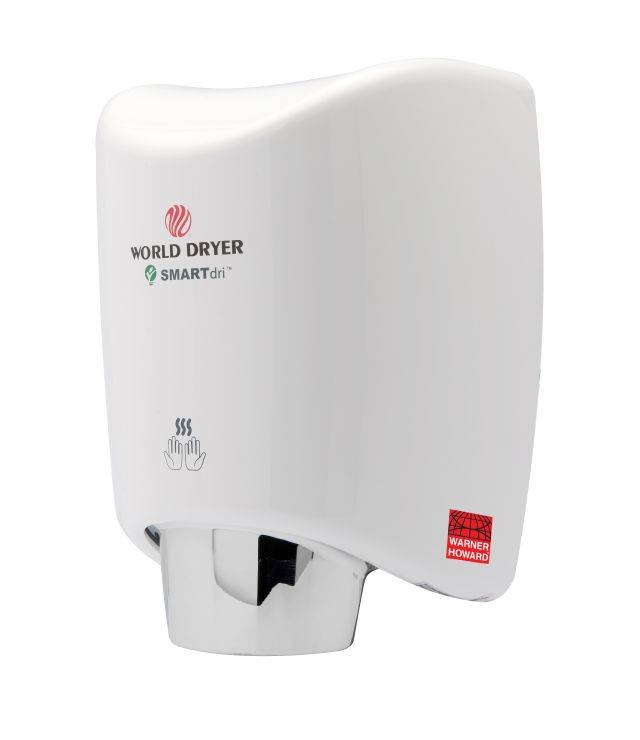

SMARTdri Hand Dryer

Verified by manufacturer 2 months ago

phs Warner Howard

Ultra-adaptable low energy hand dryer is adjustable to end-user’s individual requirements, three air speed options, plus selectable heater on/off.

Jump to:
BOS
+44 (0)370 8504352 Website

Application

Public washroom areas.

Description

SMARTdri offers a unique drying solution, enabling the user to select from three different power outputs, and features an optional heating element. This offers a drying solution which can be customized with excellent energy savings.

Features and benefits:

  • Choice of energy output: 425, 600 or 850 W, as the heating element can be turned on or off.
  • Replaceable, washable air filter reduces fluff and debris entering the motor.
  • Fast drying time.
  • Automatic ‘no touch’ operation.
  • SteriTouch® antibacterial protection to help prevent the spread of bacteria, killing 99.99% of germs, including MRSA and E.coli.
  • Available in white or polished chrome finishes.
  • Five-year on-site warranty.

General information

Color

White

Silver

Finish

Polished chrome

Material

Aluminum

Polycarbonate

ABS plastic

Manufacturer guidance

Die-cast aluminium cover with polycarbonate/ ABS internal components.

Shape

Oval

Length

319 mm

Width

236 mm

Height

192 mm

Warranty description

Five years.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/472 Hand dryers

Product range

Low Energy Range

Specification data - Hand dryers

Operation

Automatic.

Electrical supply

-

Power rating

425 W

600 W

850 W

Rated operational voltage (Ue)

230 V a.c.

Frequency

50 Hz.

Body

-

Material

ABS plastics and steel.

Colour

White.

Ingress protection (minimum)

IP24.

Dimensions

236 x 319 x 192 mm.

Product Reference

SMARTdri

Weight

5.2 kg.

Sustainability data

Country of material origin

China

Country of product manufacture

China

Recyclability

Almost all parts can be recycled

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

3

Revit

Revit 2016

4

AECOsim
-

1
