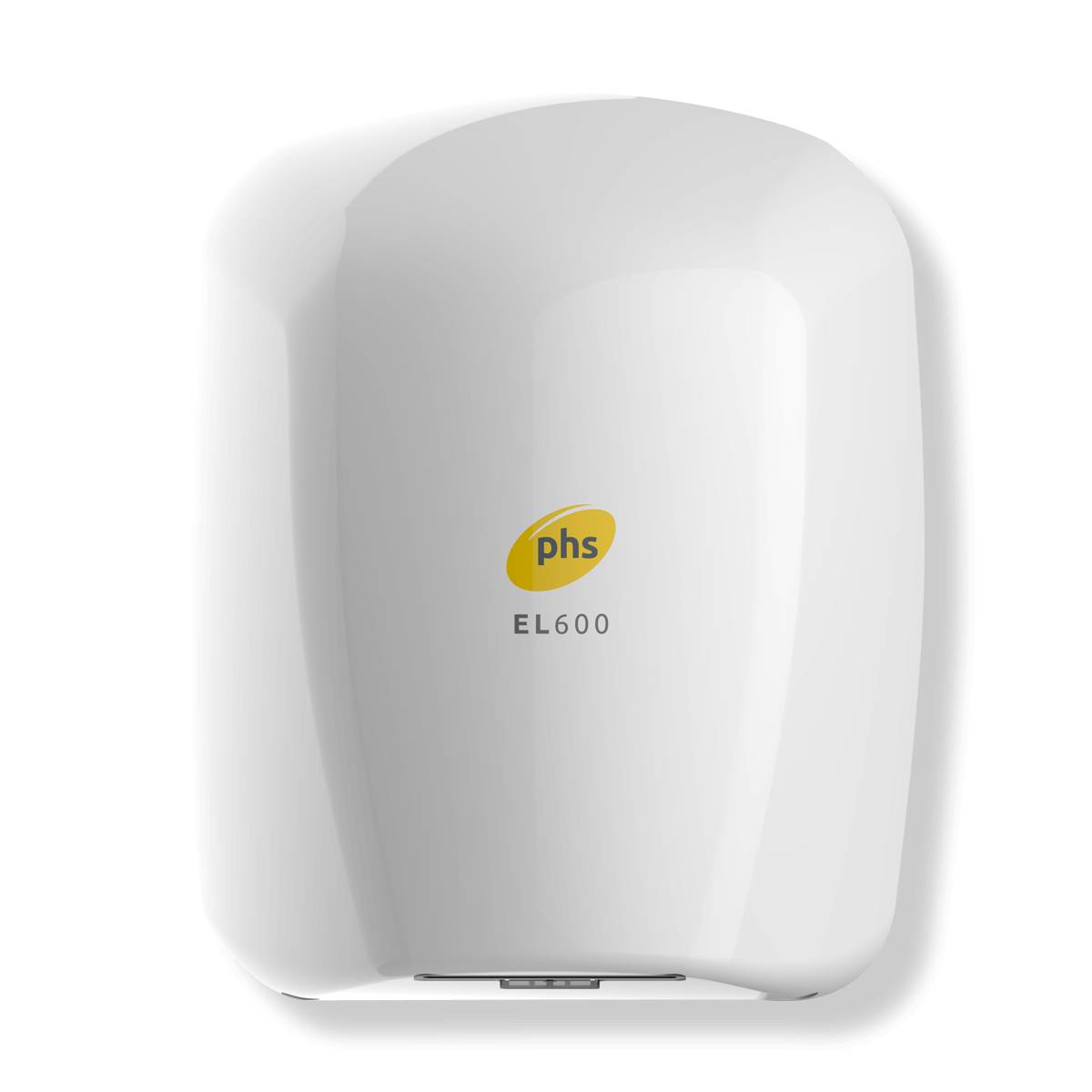

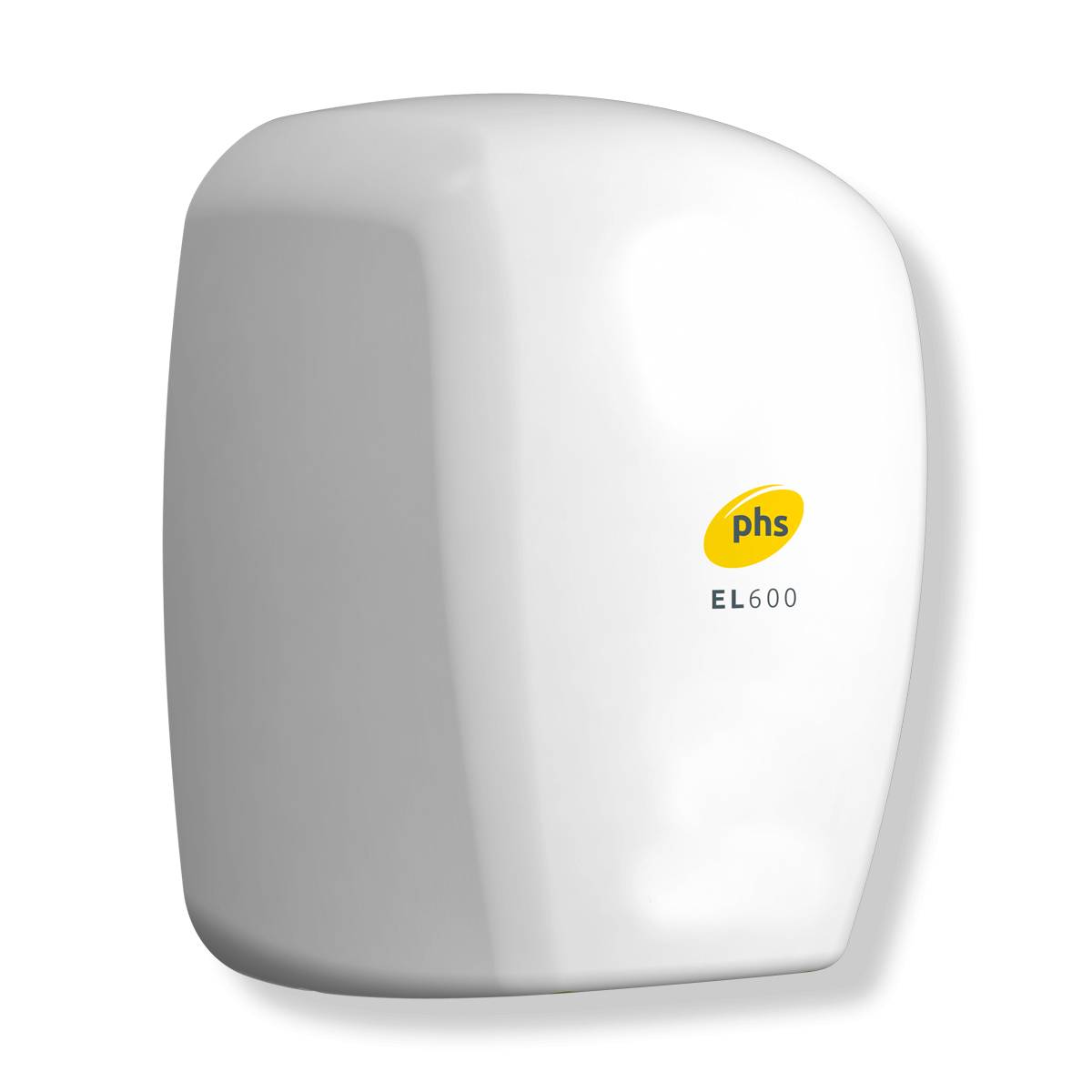

EL600 Warner Howard Hand Dryer

Verified by manufacturer 3 months ago

phs Warner Howard

High speed, low-energy ambient air, low cost in use hand dryer.

Jump to:
BOS
+44 (0)370 8504352 Website

Application

Suitable for any washroom environment.

Description

A cost-effective, ultra-low-energy hand dryer with a lightweight-yet-durable construction.

Features and benefits:

  • Ultra-low-energy, 600 W rating.
  • Slimline design.
  • Very lightweight at 2.3 kg, making it suitable for partition walls.
  • Cool air for use in warmer washrooms.
  • Hygienic, as touchable parts are coated in antimicrobial additive to reduce build-up of bacteria, germs and viruses.
  • Durable ABS plastic construction.
  • Fast drying time.

General information

Color

White

Guidance for specification option:

091183

Black

Guidance for specification option:

091226

Silver

Guidance for specification option:

091225

Finish

Anti-microbial

Material

Other

Shape

Oval

Length

149 mm

Width

221 mm

Height

268 mm

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/472 Hand dryers

Product range

Low Energy Range

Specification data - Hand dryers

Form

Warm air.

Operation

Automatic.

Timer

Fixed.

Electrical supply

-

Power rating

0.6 kW.

Guidance for specification option:

  • Standby power rating: 0.7 W.

Rated operational voltage (Ue)

230 V a.c.

Frequency

50 Hz.

Body

-

Material

ABS plastics.

Colour

White.

Black.

Nickel

Ingress protection (minimum)

IP22.

Dimensions

268 x 221 x 149 mm.

Product Reference

EL600 Warner Howard Hand Dryer

Speed

40 000 rpm.

Manufacturer guidance

Motor speed

Weight

2.3 kg.

Sustainability data

Country of material origin

China

Country of product manufacture

China

Material

Other

Recyclability

Most parts can be recycled

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

1

IFC
-

1

Literature

EL600 Ultra Low Energy Hand Dryer

EL600 Ultra Low Energy Hand Dryer

EL60 Spec Sheet

EL60 Spec Sheet
