SMART Timber/Stainless Steel Balustrade Systems
Verified by manufacturer 6 months ago

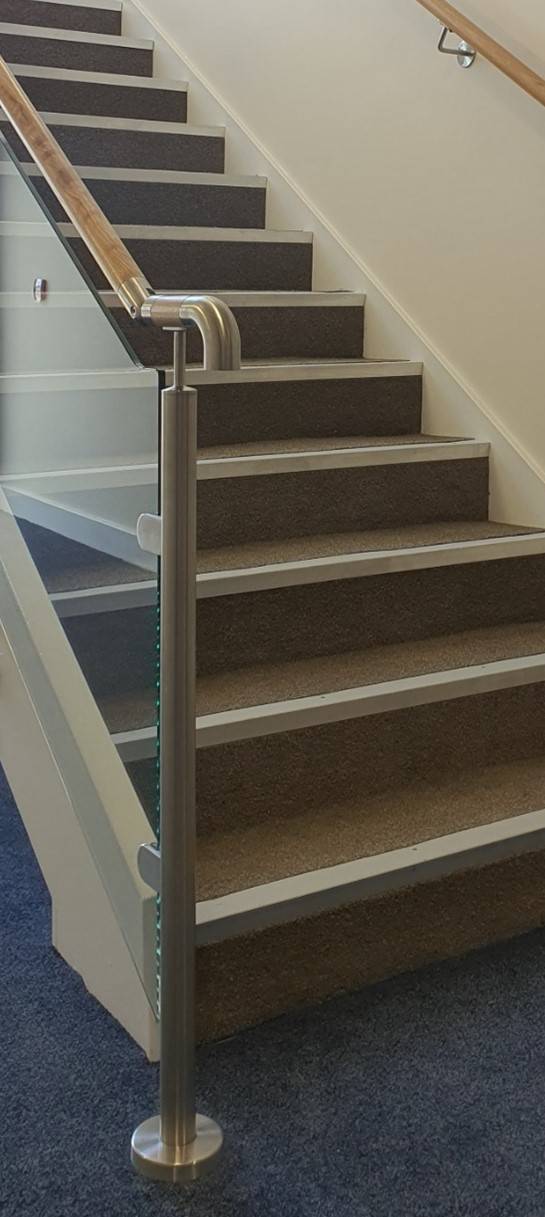

Base plate fixed - Glass infill
Base plate fixed - Glass infill
Health & Safety Accreditation
Certificate type
Constructionline Gold
Certificate type
Constructionline
Certificate type

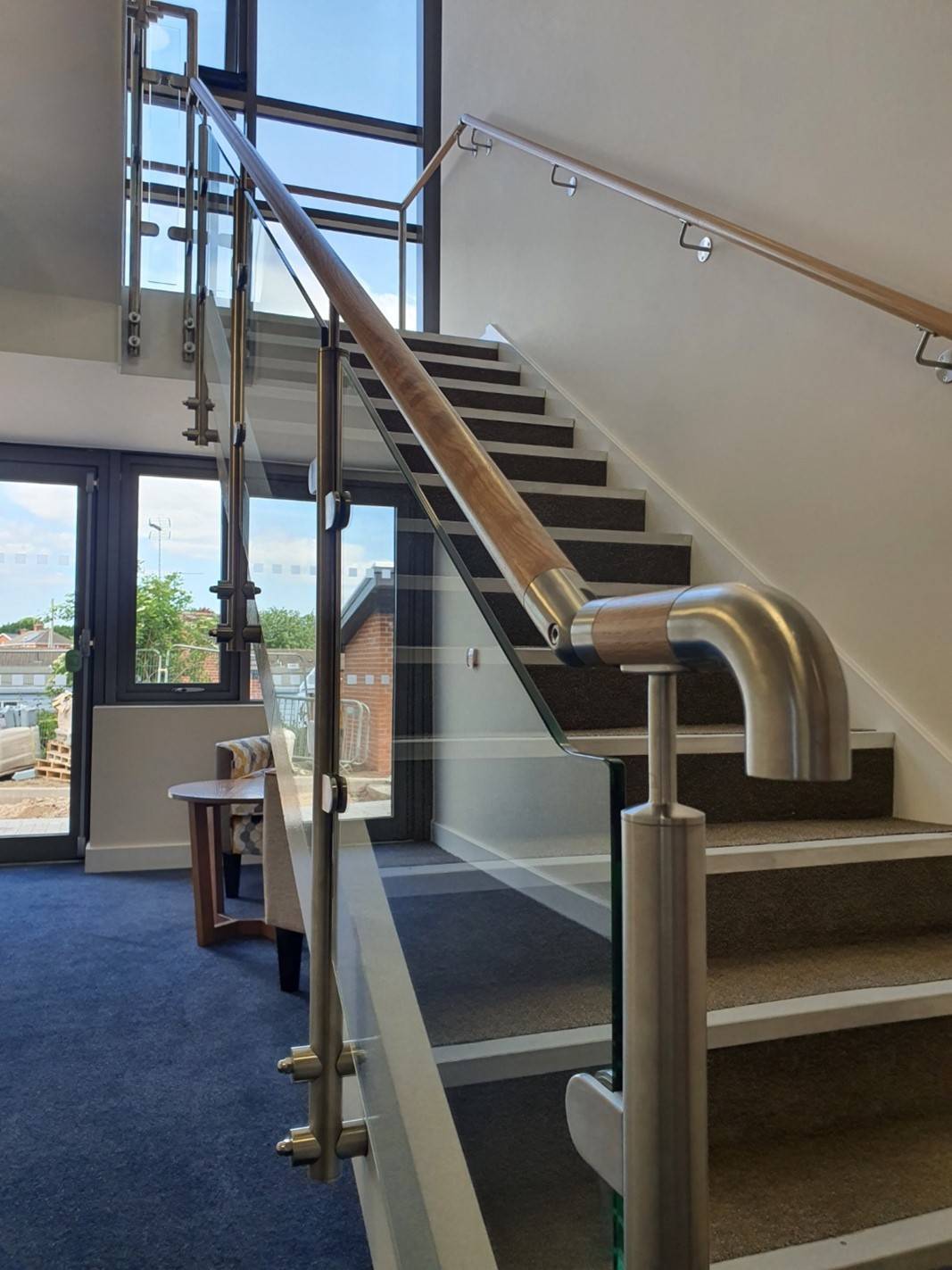

Tubular stainless steel balustrade system with a timber handrail.
Application
- Suitable for stairs.
- For internal use only.
- Commercial or residential properties.
Description
A range of tubular stainless steel balustrade systems with a timber handrails.
Features and benefits:
- Grade 304 satin brushed stainless steel posts, clamps, bends and base plates.
- Base plate fixings.
- Constructed using SMART components.
- Toughened glass infill panels.
- Timber handrail with steel core rail.
- Oak as standard – other timbers available on request.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Glass Timber |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L30/580 Proprietary handrails L30/560 Proprietary balustrades L30/55 Proprietary balustrades L30/70 Proprietary handrails |
Specification data - Balustrade and guarding systems
System performance | Loading requirements: 0.74 kN horizontal line load measured at 1100 mm above FFL with less than 25 mm deflection. 1.0 kN point load on the infill panel. |
Uprights | Satin brushed grade 304 stainless steel, 42 mm diameter. |
Infills | 10 mm thick clear toughened float glass to EN 12150 with flat polished edges and dubbed corners. |
Rails | |
Handrails | Rebated oak handrail on a square steel core rail, 42 mm diameter.Guidance for specification option: Connection: Inline stem with saddle in satin brushed grade 304 stainless steel |
Fixing to parent structure | 100 mm diameter base plate, 105 mm diameter cover rose, fixed with M10 through bolts or chemical anchors.Guidance for specification option: For fixing to concrete. 100 mm diameter base plate, 105 mm diameter cover rose, fixed with M10 nut and bolt or drill and tapGuidance for specification option: For fixing to steel. Drill and tap only if steel is thick enough. 100 mm diameter base plate, 105 mm diameter cover rose, fixed with M10 coach bolts.Guidance for specification option: For fixing to timber. Please note, the manufacturer's test data is based on fixing to concrete or steel. |
Fixing | Glass fixing: D-shaped friction clamps, 4 per panel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | United Kingdom |
