Slip Bricks
Verified by manufacturer 9 months ago

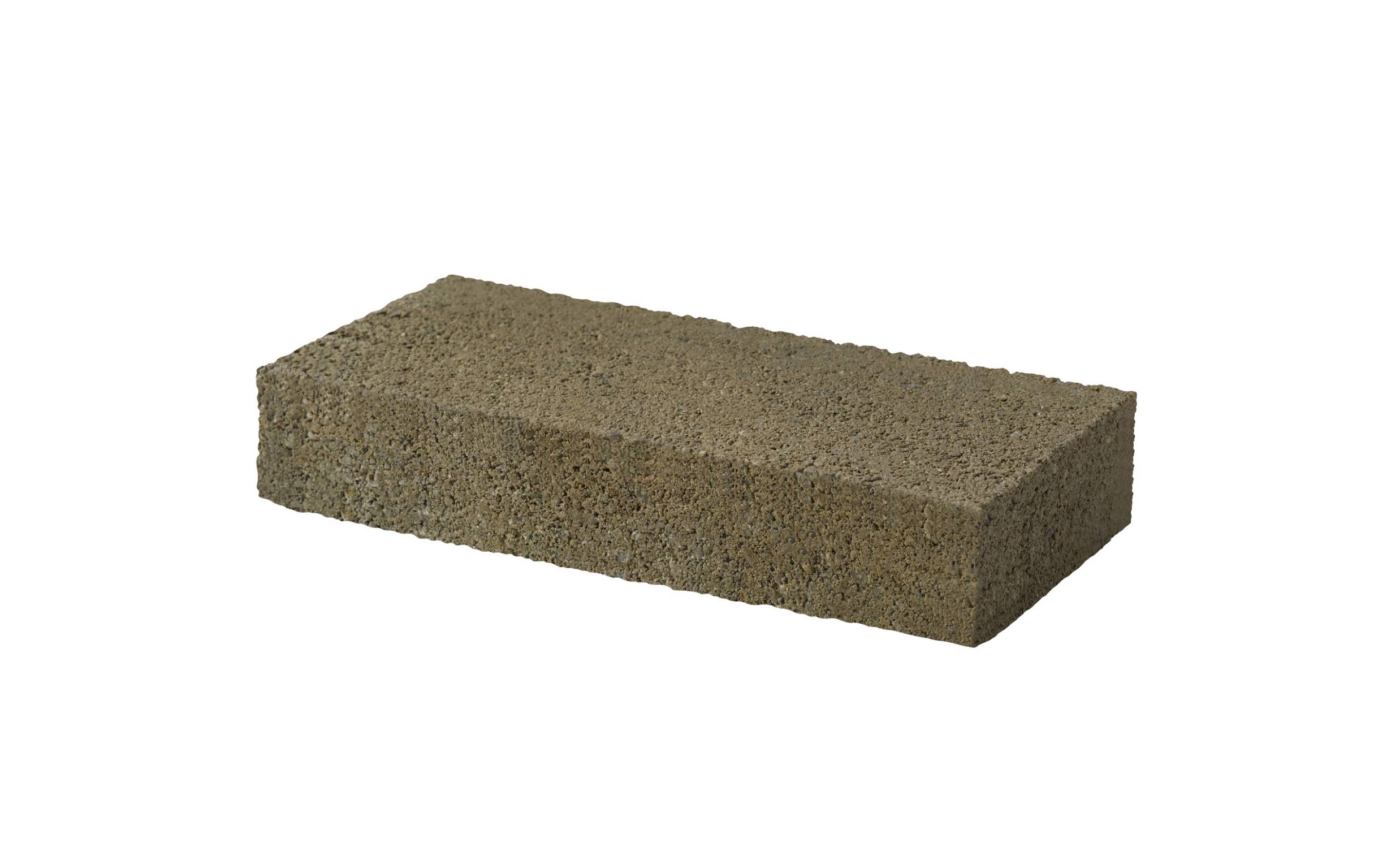

Dense slip brick.
Application
Suitable for applications such as:
- Exterior wall insulation.
- Makes up courses in blockwork.
- Beams (T-Beam Flooring).
- Finishing the floor onto load-bearing walls, parallel edges and between end of beams.
Description
Slip bricks (infill bricks) which are manufactured to maintain coursing heights for block and beam flooring.
Manufactured in dense aggregate they ensure material continuity throughout the construction.
Features and benefits:
- Available in both 100 mm and 140 mm widths to suit both brick and timber framed properties.
- Green Guide A+.
General information
Color | Grey |
Material | Concrete |
Shape | Rectangle |
Length | 380 mm |
Width | 100 mm |
Height | 45 mm |
Uniclass | |
CAWS | F10/45 Engineering brickwork F10/385 Engineering brickwork |
Specification data - Aggregate concrete bricks
Brick description | Slip brick. |
Appearance | Match existing. |
Compressive strength | |
Mean value | 22.5 N/mm².Guidance for specification option: Air dry. |
Characteristic value | 22.5 N/mm². |
Freeze/ thaw resistance | Frost-resistant. |
Thermal conductivity | 1.24 W/mK (@3%); 1.33 W/mK (@5%). |
Work sizes (length x width x height) | 380 x 100 x 45 mm. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Water vapour permeability | To EN 1745, 5/15 μ. |
Bond strength | To EN 998-2, 0.15 N/mm². |
Moisture movement | <0.60 mm/m. |
Colour | Grey. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable at end of lifecycle |
Literature
Slip Bricks
