SkyMax SR

Name: SkyMax SR
Brand: Duco Ventilation & Sun Control NV
SKU: e7cSERUVDGKCFr597Gv3X7

Verified by manufacturer 2 months ago

Corto 10 'SR'

Duco Ventilation & Sun Control NV

Overframe ventilator, suitable for use with aluminium, PVC or timber windows.

Jump to:

BOS

+32 58 33 00 66 Website

Application

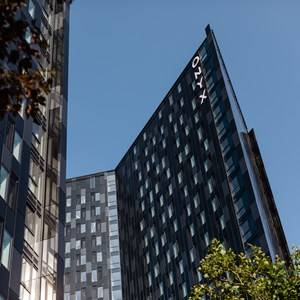

Suited to high-rise applications.

Description

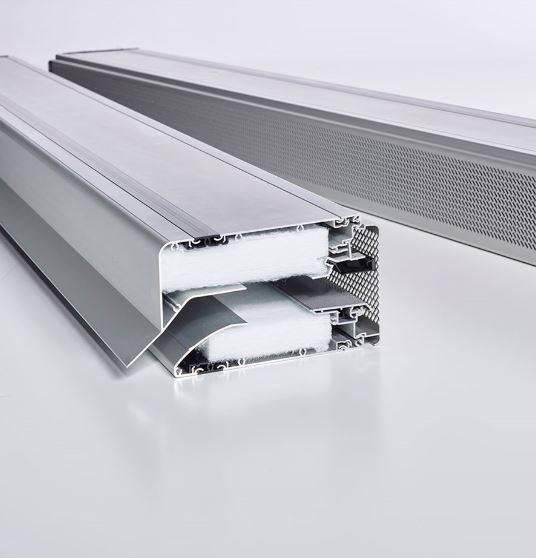

A self regulating, acoustic vent (sound attenuating ventilator), specifically engineered for situations exposed to high levels of noise disturbance. The various types are attractively designed and offer excellent acoustic and airflow performance. The SkyMax SR is an upgraded version of the DucoMax SR making it applicable to heights up to 70 metres.

Features and benefits:

Suited to high-rise applications.
Four fitting depths: Corto, Medio, Alto, Largo
Suited to situations giving rise to high levels of noise disturbance.
No whistling sounds with positive or negative pressure thanks to active closing aluminium valve.
Excellent wind and waterproofing.

General information

Color	- Manufacturer guidance Range of colours available in either anodized or RAL.
Finish	Anodized Guidance for specification option: Standard natural colour (clear anodizing).

Uniclass	Pr_30_59_94_06 Air transfer grillesPrimary
CAWS	U90/360 Air transfer grilles U90/360 Air transfer grilles

Specification data - Air transfer grilles

Equivalent area (minimum)	16542 mm²/m.
Material and finish	Anodized aluminium. Powder coated aluminium.
Colour	Self coloured. RAL.
Execution	Fasteners for hardware.

U-value	2,58 W/m²/K.
Wind load	600 Pa. Manufacturer guidance Windtightness in closed position.
Watertightness	1050 Pa. Manufacturer guidance Watertightness in closed position.
Height	105 mm. Manufacturer guidance Ventilator height.
Transom	20 mm. 21 mm. 24 mm. Manufacturer guidance Transom profile.
Control	Flap handle 15 mm.
Free area	10000 mm²/m. Manufacturer guidance Geom. free area.
Air flow	86.7 m³/h/m. Guidance for specification option: @ 2Pa.
Sound reduction	41 (-1;-2) dB.
Length	2500 mm. Guidance for specification option: 2500 mm (transom/compact transom). 2500 mm (glazed-in). Maximum flap length : 1000 mm. Manufacturer guidance Maximum length.
