SitaRetention Blue Roof Flow Restrictor - Controlled Rainwater Drainage Retainers

Name: SitaRetention Blue Roof Flow Restrictor - Controlled Rainwater Drainage Retainers
Brand: Sita Bauelemente GmbH
SKU: xrqBfdQgPiMX9vEoU8vaNW

Verified by manufacturer 1 day ago

SitaRetention roof shaft for extensive green roofs

Sita Bauelemente GmbH

Product certifications:

TUV - Safety and Quality Report
Certificate type
EPD
Certificate type

Range of flow restrictors for controlled rainwater drainage on blue roofs by the targeted reduction of water intake.

Jump to:

BOS

07402239777 Website

Application

For delayed rainwater drainage with a retention roof.

Description

Range of retainers for controlled rainwater drainage by the targeted reduction of water intake.

Features and benefits:

For use in conventional drainage outlets for targeted reduction of water intake.
Optionally with or without dome grate depending on application.
Simple insertion in the outlet pot without extra tools.
With scaled adjusting slide or predefined opening.
For controlled rainwater drainage.
Emergency drainage elements are a noticeable yellow.
Compatible with a range of Sita products: SitaStandard*; SitaIndra**; SitaMulti**; SitaTrendy*; SitaSani®*.

*Specified separately.

**Consult manufacturer for details.

General information

Color	Silver Beige Black Yellow
Material	Polyurethane (PUR) Aluminium Rubber Polyamide High density polyethylene (HDPE) Polyethylene Show more
Shape	Square Circle
Length	151 mm 153 mm 194 mm 196 mm 310 mm 320 mm 328 mm 400 mm Bespoke Show more
Width	151 mm 153 mm 194 mm 196 mm 310 mm 320 mm 328 mm 400 mm Bespoke Show more
Height	120 mm Guidance for specification option: Maximum for extensive roof shaft. 207 mm 253 mm 307 mm 432 mm 600 mm Guidance for specification option: Maximum for intensive roof shaft. Bespoke Show more
Warranty description	Six year

Uniclass	Pr_65_50_35_37 Gravity rainwater outletsPrimary Pr_65_52_01_65 Plastics mini-inspection chambers
CAWS	Q37/130 Extensive green roofs and biodiverse roofs Q37/110 Intensive green roofs Q37/120 Semi-intensive green roofs R10/365 Proprietary rainwater outlets R10/26 Proprietary rainwater outlets

SKU Code	409103, 409104, 409201, 409203, 409202, 409204, 233040, 234040, 109175, 109176, 109177, 159175, 159176, 159177

Specification data - Gravity rainwater outlets

Classification data
Material	Polyurethane base.
Grating	Flat; 400 x 400 mm, mesh size 9 x 32 mm; hot-dip galvanized.
Integral accessories	Height-adjustable rubber feet
Accessories	None. SitaGreen extension unit.

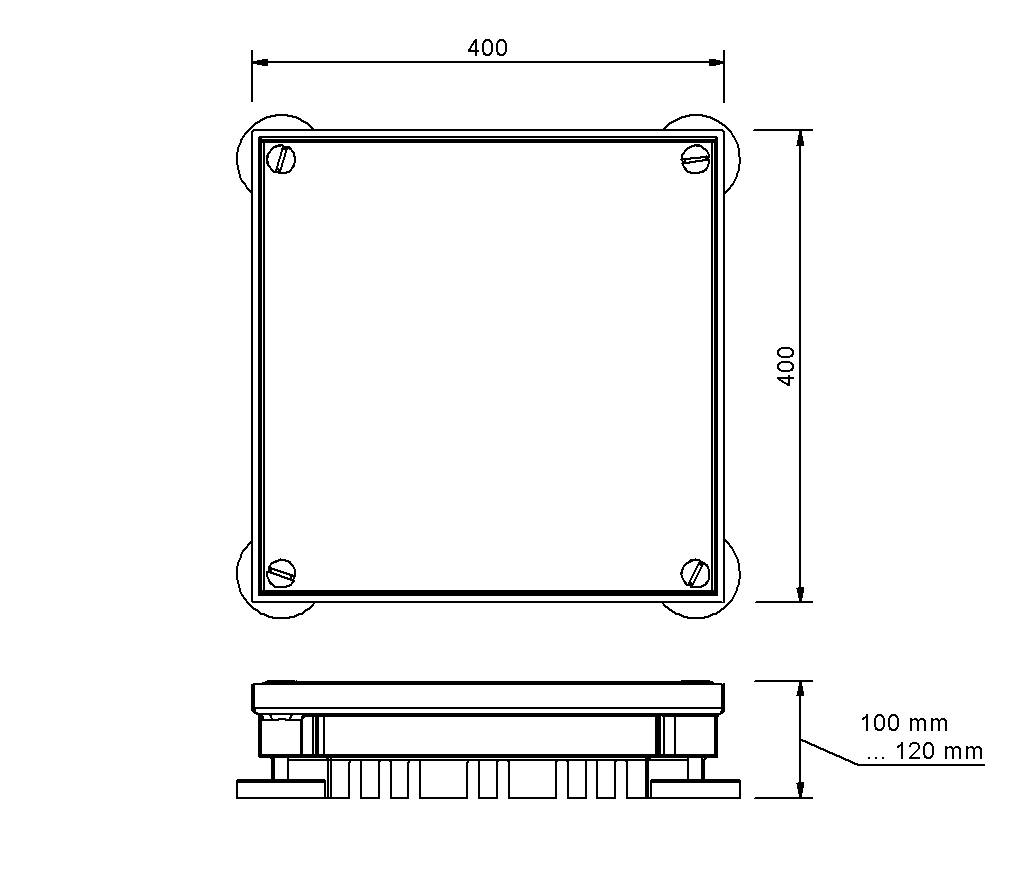

Dimensions	400 x 400 x 100–120 mm. Guidance for specification option: Length (grate) x width (grate) x height (adjustable).

Sustainability data

Country of material origin	Germany
Country of product manufacture	Germany
Material	Polyurethane (PUR) Aluminium Rubber Polyamide High density polyethylene (HDPE) Polyethylene
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 13.4
